Parameter Description

Enter the group of source IP addresses by using a wildcard bitmap. The bit

corresponding to the bit value 1 will be ignored. The bit corresponding to the

bit value 0 will be checked.

Destination

Select and enter the destination information here. Options to choose from are

Any, Host, IP, and Wildcard.

• When the Any option is selected, any destination traffic will be evaluated

according to the conditions of this rule.

• When the Host option is selected, enter the destination host IP address

here.

• When the IP option is selected, the Wildcard option will also be available.

Enter the group of destination IP addresses by using a wildcard bitmap. The

bit corresponding to the bit value 1 will be ignored. The bit corresponding to

the bit value 0 will be checked.

Time Range

Enter the name of the time range profile that will be used in this ACL rule here.

This name can be up to 32 characters long.

Click the Apply button to accept the changes made.

Click the Back button to discard the changes made and return to the previous page.

Extended IP ACL

After selecting an Extended IP ACL and clicking the Add Rule button, the following page will appear.

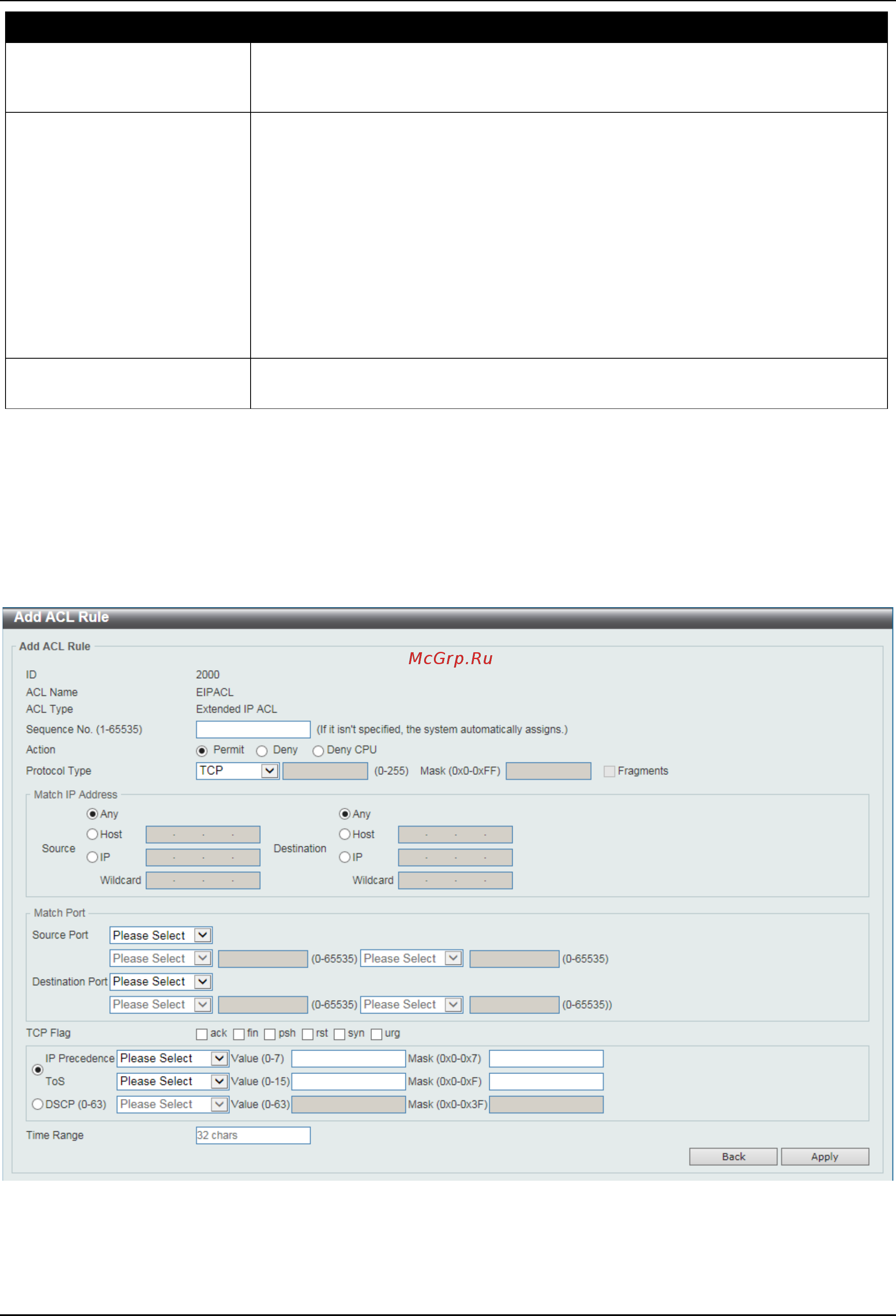

Figure 8-12 Extended IP ACL (Add Rule) Window
