DGS-3630 Series Layer 3 Stackable Managed Switch Web UI Reference Guide

169

After clicking the Add Rule button next to an Ethernet-IP type profile, the following page will appear.

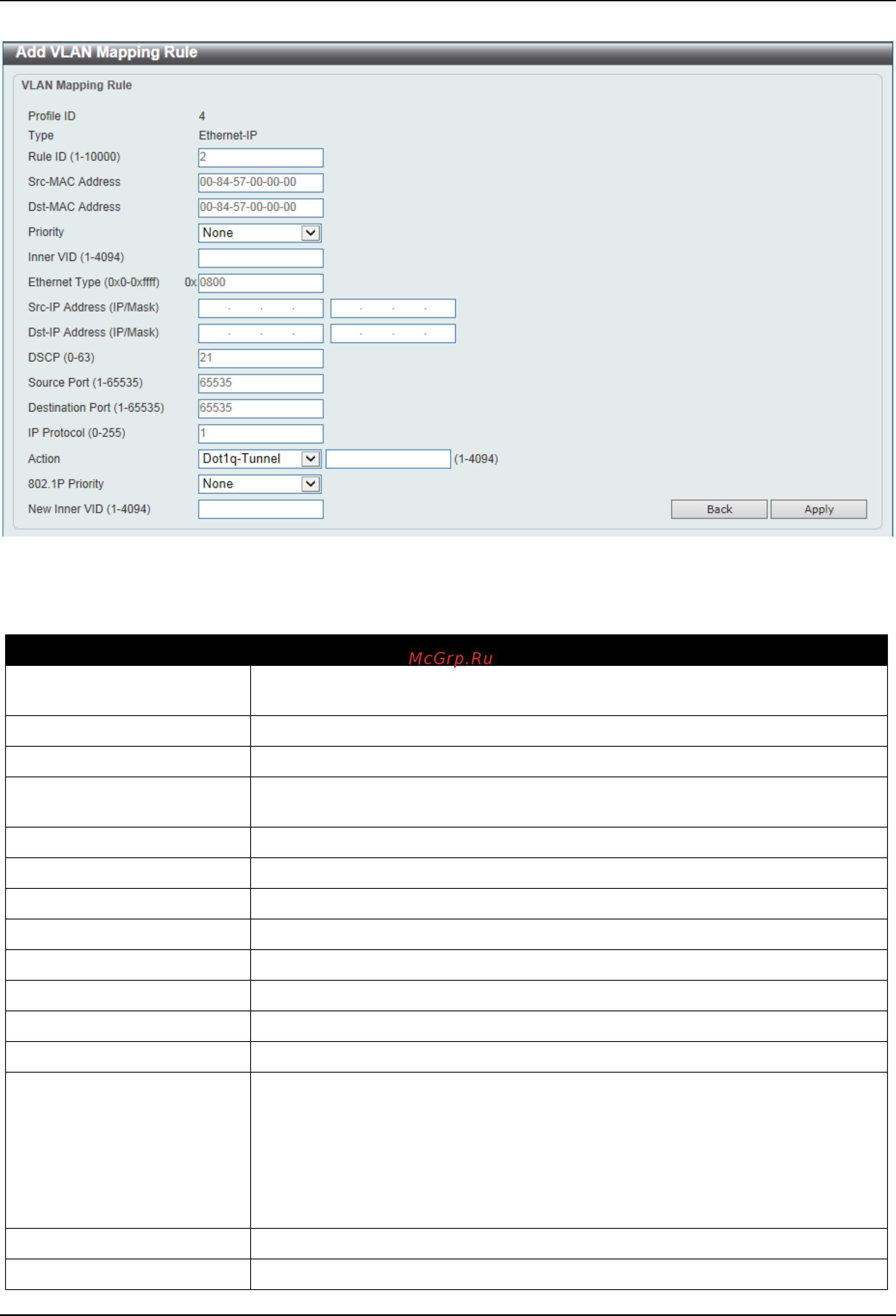

Figure 5-49 VLAN Mapping Profile (Ethernet-IP, Add Rule) Window

The fields that can be configured are described below:

Parameter Description

Rule ID

Enter the VLAN mapping rule ID here. If not specified, the rule ID begins from 10

and is incremented by 10 for every new rule. The range is from 1 to 10000

Src-MAC Address

Enter the source MAC address here.

Dst-MAC Address

Enter the destination MAC address here.

Priority

Select the 802.1p priority value here. The range is from 0 to 7. A lower value has

a higher priority.

Inner VID

Enter the inner VLAN ID here. The range is from 1 to 4094.

Ethernet Type

Enter the Ethernet type value here. The range is from 0x0 to 0xFFFF.

Src-IP Address

Enter the source IPv4 address and subnet mask here.

Dst-IP Address

Enter the destination IPv4 address and subnet mask here.

DSCP

Enter the DSCP value here. The range is from 0 to 63.

Source Port

Enter the source TCP/UDP port number here. The range is from 1 to 65535.

Destination Port

Enter the destination TCP/UDP port number here. The range is from 1 to 65535.

IP Protocol

Enter the Layer 3 IP protocol value here. The range is from 0 to 255.

Action

Select the action that will be taken here. Options to choose from are Dot1q-

Tunnel and Translate.

• Dot1q-Tunnel - Specifies that the outer-VID will be added for matched

packets.

• Translate - Specifies that the outer-VID will replace the outer-VID of the

matched packets.

New Outer VID

Enter the new outer VLAN ID here. The range is from 1 to 4094.

802.1P Priority

Select the 802.1p priority value here. The range is from 0 to 7. A lower value has
