DGS-3630 Series Layer 3 Stackable Managed Switch Web UI Reference Guide
190
Parameter Description
Packets
7.
Select the Default option to use the default value.
Drop Threshold
Enter the drop threshold value here. This value must be between 100 and 20000.
By default, this value is 0. The tunneling of the Layer 2 protocol packets will
consume CPU processing power in encapsulating, decapsulating, and forwarding
of the packet. Use this option to restrict the CPU processing bandwidth consumed
by specifying a threshold on the number of all Layer 2 protocol packets that can
be processed by the system. When the maximum number of packets is exceeded,
the excessive protocol packets are dropped.
Select the Default option to use the default value.
Action
Select the action that will be taken here. Options to choose from are Add and
Delete. This is used to add or delete an L2PT tunneling multicast address to or
from the specified protocol.
Tunneled Protocol
Select the tunneled protocol here. Options to choose from are:
• GVRP - Specifies that GVRP packets will be tunneled to the configured
address.
• STP - Specifies that STP packets will be tunneled to the configured address.
• MAC - Specifies that protocol packets with the specified destination address
will be tunneled to the configured address.
• All - Specifies that all packets will be tunneled to the configured address.
Protocol MAC
After selecting the MAC option as the Tunneled Protocol, select the destination
address that will be tunneled to the configured address here. Options to choose
from are 01-00-0C-CC-CC-CC and 01-00-0C-CC-CC-CD.
MAC Address
Enter the MAC address which the specified protocol will be tunneled to here. This
MAC address should not be an address reserved or used by other protocols.
Click the Apply button to accept the changes made.
After selecting the L2 Protocol Tunnel Port Setting tab option, at the top of the page, the following page will be
available.

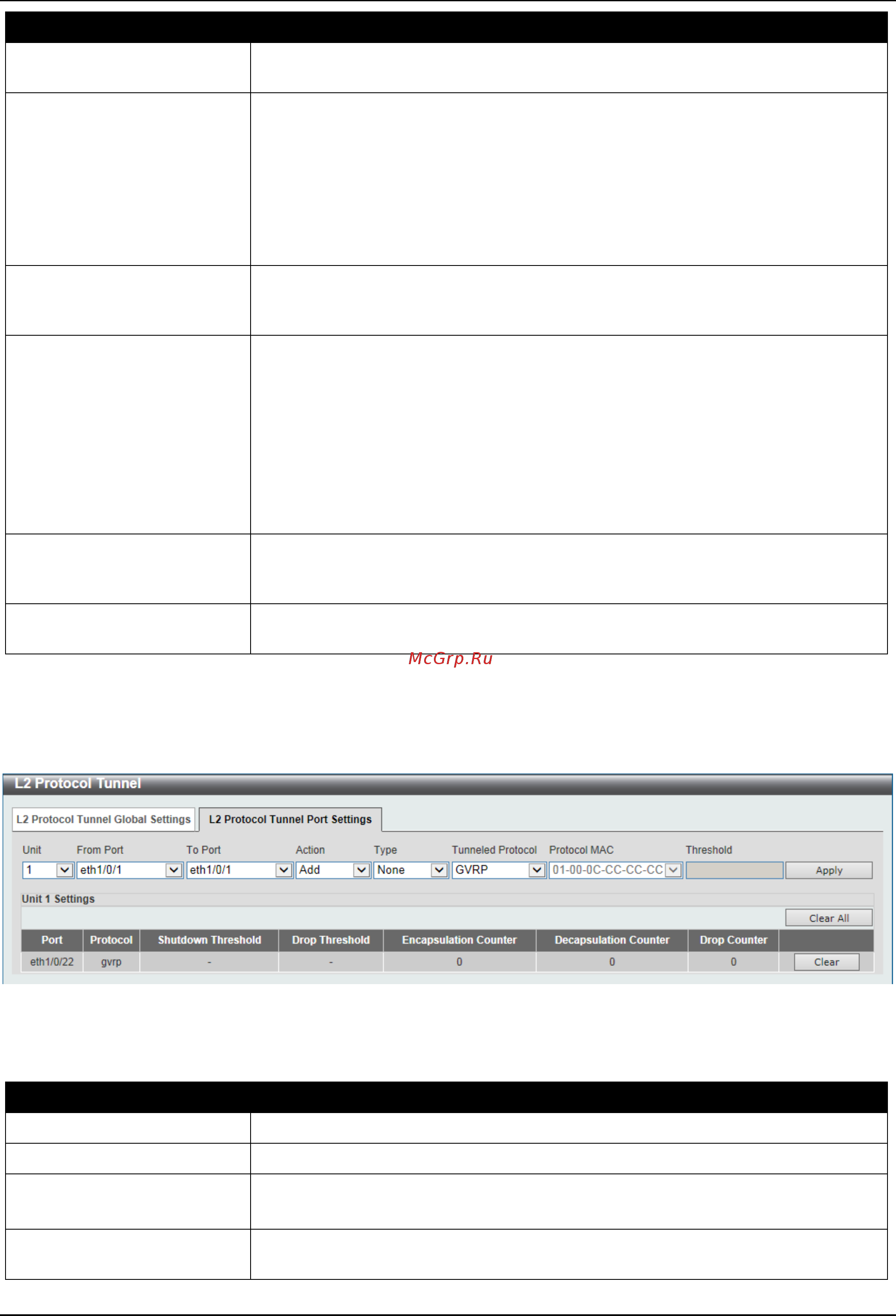

Figure 5-68 L2 Protocol Tunnel (L2 Protocol Tunnel Port Setting) Window
The fields that can be configured are described below:
Parameter Description
Unit
Select the Switch unit that will be used for this configuration here.
From Port - To Port
Select the range of ports that will be used for this configuration here.
Action
Select Add to add a new entry based in the information entered.
Select Delete to delete an entry based in the information entered.
Type
Select the type option here. Options to choose from are None, Shutdown, and
Drop.
