To view the following window, click System > Port Configuration > Port Settings, as shown below:

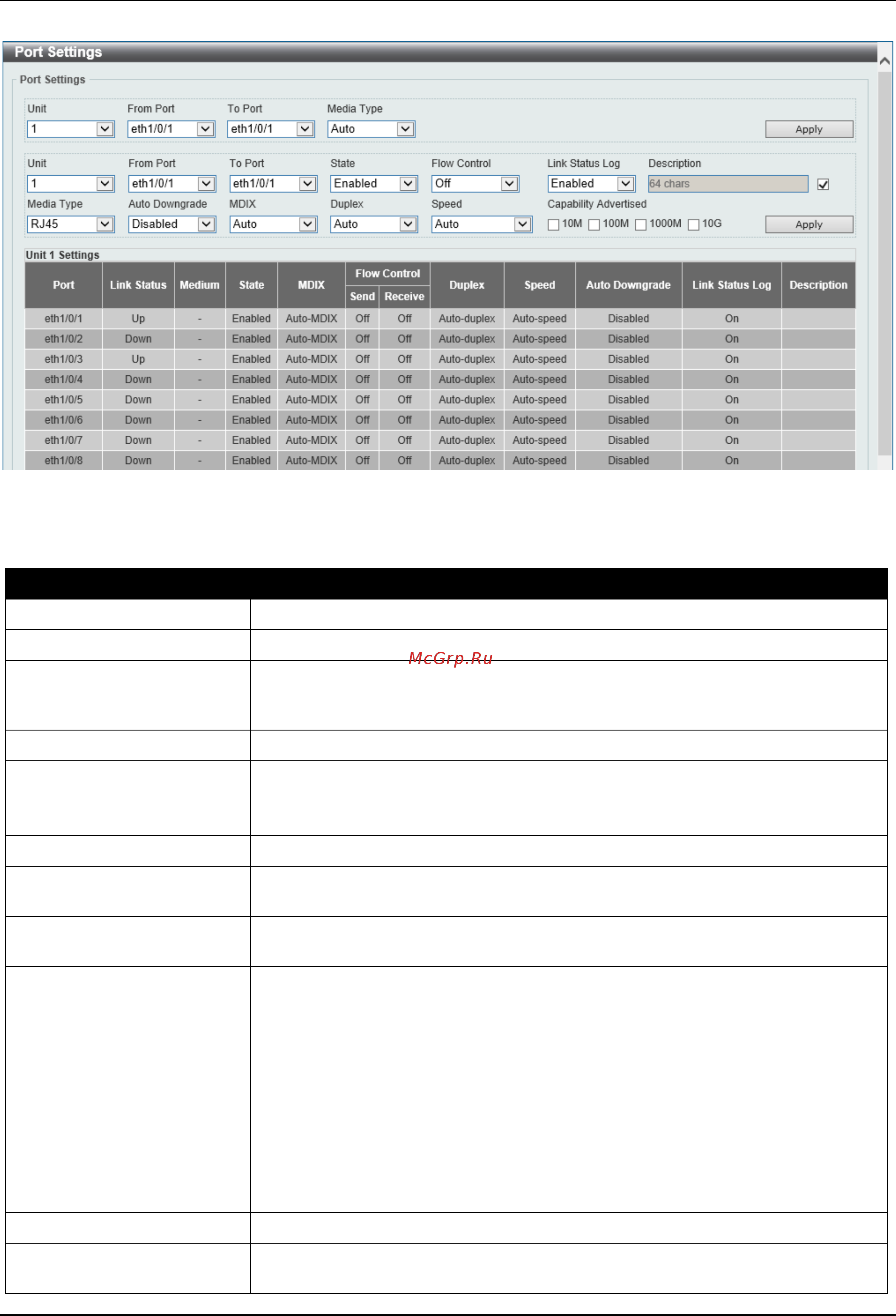

Figure 3-4 Port Settings Window

The fields that can be configured are described below:

Parameter Description

Unit

Select the stacking unit ID of the Switch that will be configured here.

From Port - To Port

Select the appropriate port range used for the configuration here.

Media Type

Select the port media type here. Options to choose from are Auto, RJ45, and

SFP. Selecting the SFP option includes the use of SFP+ transceivers for 10G

connectivity.

State

Select to enable or disable the physical port state here.

Flow Control

Select to turn flow control On or Off here. Ports configured for full-duplex use

802.3x flow control and Auto ports use an automatic selection of the two.

Note: This feature will not work through Switches that are physically stacked.

Link Status Log

Select to enable or disable the link status log function here.

Description

Select the checkbox and enter the description for the corresponding port here.

This can be up to 64 characters long.

Auto Downgrade

Select to enable or disable the feature to automatically downgrade the advertised

speed in the event that a link cannot be established at the available speed.

MDIX

Select the Medium Dependent Interface Crossover (MDIX) option here. Options to

choose from are:

• Auto - Select this option for auto-sensing of the optimal type of cabling.

• Normal - Select this option for normal cabling. If this option is selected, the

port is in the MDIX mode and can be connected to a PC NIC using a straight-

through cable or a port (in the MDI mode) on another Switch through a cross-

over cable.

• Cross - Select this option for cross-over cabling. If this option is selected, the

port is in the MDI mode and can be connected to a port (in the MDIX mode)

on another Switch through a straight cable.

Duplex

Select the duplex mode used here. Options to choose from are Auto and Full.

Speed

Select the port speed option here. This option will manually force the connection

speed on the selected port to connect at the specified speed only.
