DGS-3630 Series Layer 3 Stackable Managed Switch Web UI Reference Guide
349
To view the following window, click L3 Features > IP Multicast Routing Protocol > IPMC > Control Packet CPU
Filtering, as shown below:

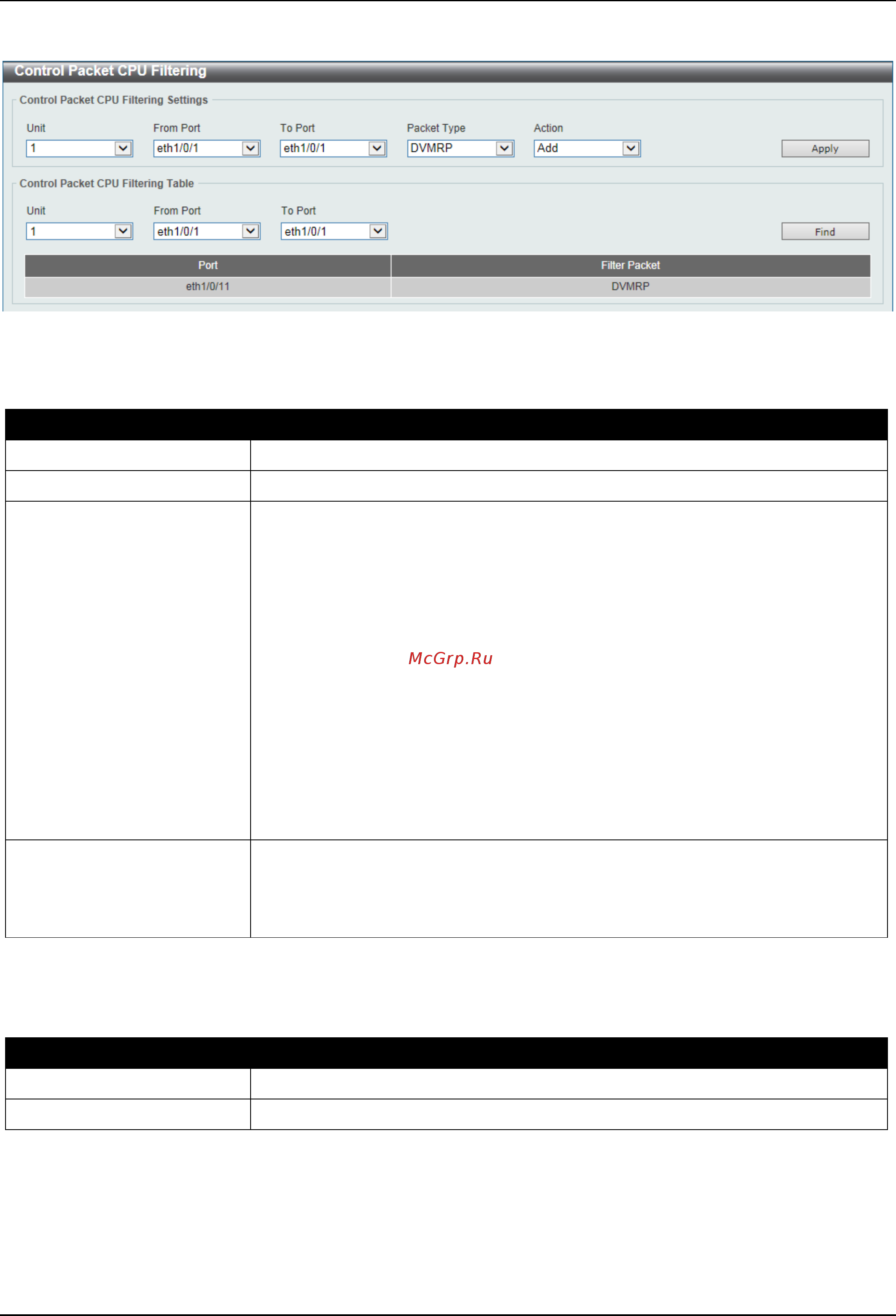

Figure 6-154 Control Packet CPU Filtering Window
The fields that can be configured in Control Packet CPU Filtering Settings are described below:
Parameter Description
Unit
Select the Switch unit that will be used for this configuration here.
From Port - To Port
Select the range of ports that will be used for this configuration here.
Packet Type
Select the packet type here. Options to choose from are:
• DVMRP - Specifies that the CPU will discard DVMRP Layer 3 control
packets sent to it.
• PIM - Specifies that the CPU will discard PIM Layer 3 control packets sent to
it.
• IGMP Query - Specifies that the CPU will discard IGMP Query Layer 3
control packets sent to it.
• OSPF - Specifies that the CPU will discard OSPF Layer 3 control packets
sent to it.
• RIP - Specifies that the CPU will discard RIP Layer 3 control packets sent to
it.
• VRRP - Specifies that the CPU will discard VRRP Layer 3 control packets
sent to it.
Action
Select the action that will be taken here. Options to choose from are:
• Add - Specifies to add a new entry based on the information entered.
• Delete - Specifies to delete an entry based on the information entered.
Click the Apply button to accept the changes made.
The fields that can be configured in Control Packet CPU Filtering Settings are described below:
Parameter Description
Unit
Select the Switch unit that will be used for this display here.
From Port - To Port
Select the range of ports that will be used for this display here.
Click the Find button to find and display entries based on the selections made.
