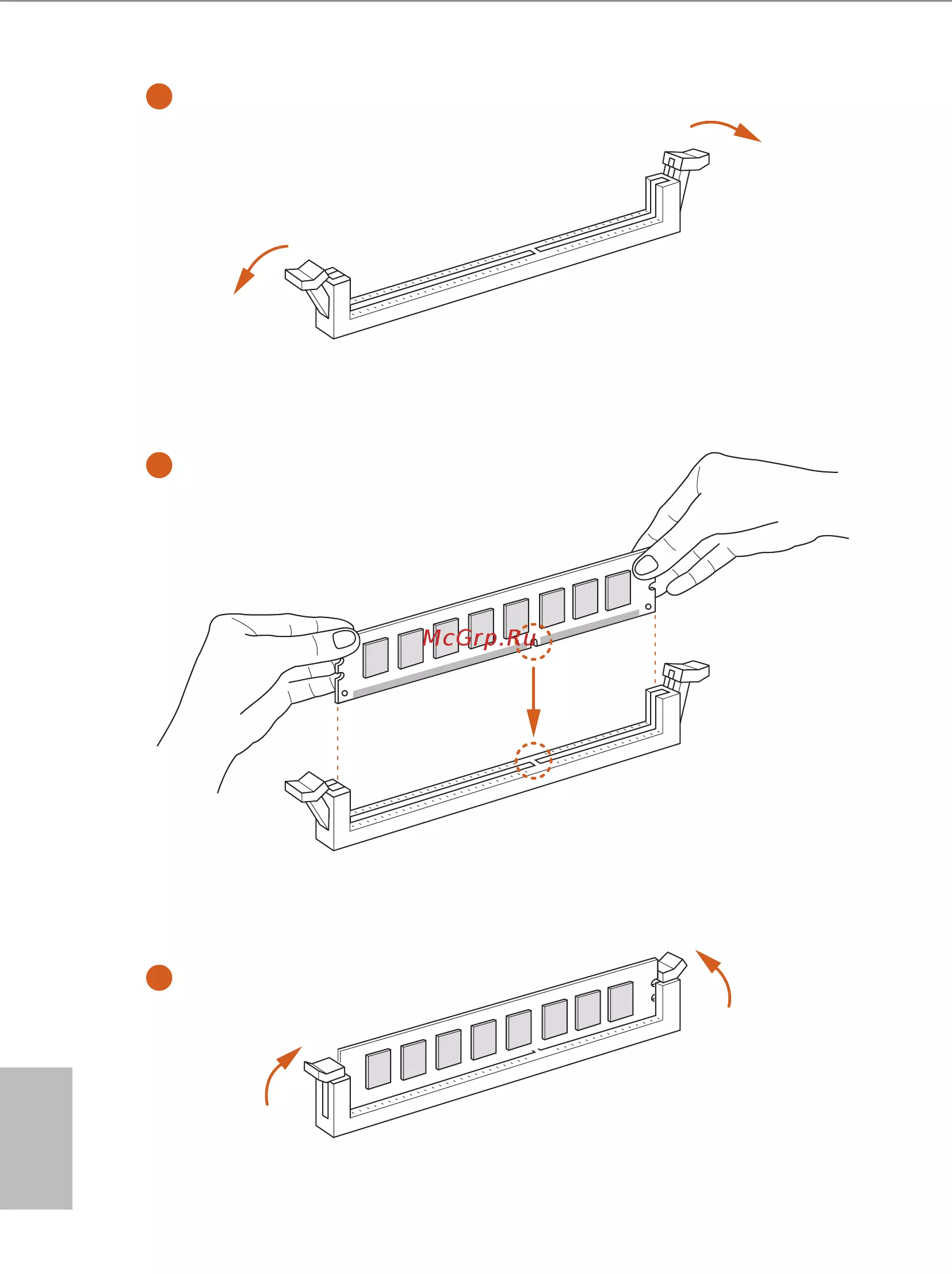

H110 Pro BTC+

2.4 Expansion Slots (PCI Express Slots)

ere are 13 PCI Express slots on the motherboard.

PCIe slots:

PCIE2 (PCIe 3.0 x16 slot) is used for PCI Express x16 lane width graphics cards.

PCIE1_1/PCIE1/PCIE2_1/PCIE3_1/PCIE3/PCIE4_1/PCIE4/PCIE5_1/PCIE5/

PCIE6_1/PCIE6/PCIE7_1 (PCIe 2.0 x1 slot) is used for PCI Express x1 lane width

graphics cards.

Before installing an expansion card, please make sure that the power supply is

switched o or the power cord is unplugged. Please read the documentation of the

expansion card and make necessary hardware settings for the card before you start

the installation.

1. Please connect the SATA power connector and PCIe power connectors to the power

supply when three graphics cards are installed on this motherboard.

2. 12V power supply can only provide 1.2A current in the white PCIe slots.
