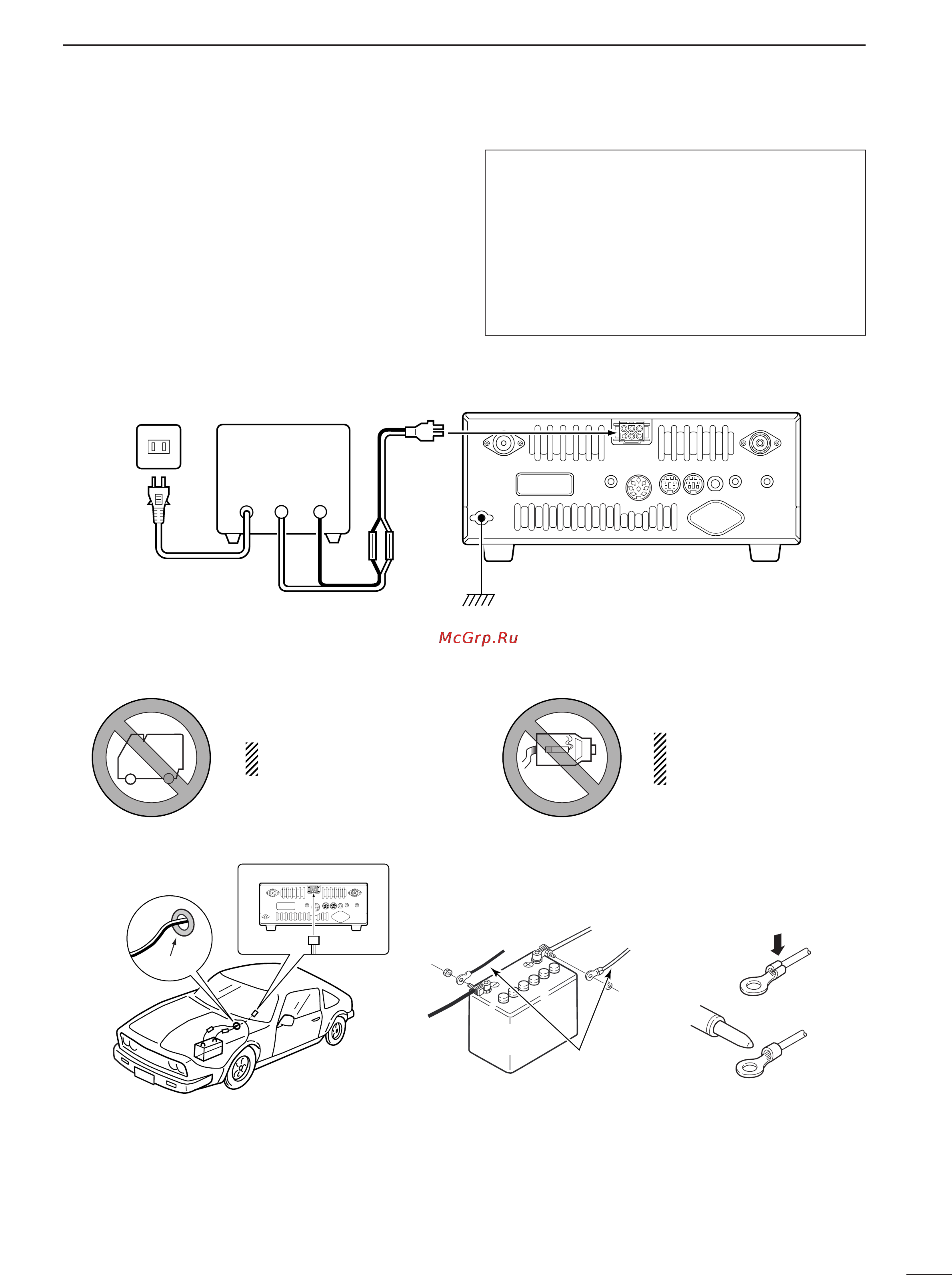

Icom IC-910H [19/86] I power supply connections
![Icom IC-910H [19/86] I power supply connections](/views2/1074431/page19/bg13.png)
AC outlet
AC cable
13.8 V DC 25 A
A DC power supply
Black
_
Red
+
IC-910H
Supplied DC
power cable
17
3
INSTALLATION AND CONNECTIONS
24V
Ciga
IC-910H
12 V
battery
Supplied
DC power cable
+ red
_ black
Crimp
Solder
Grommet
CONNECTING A VEHICLE BATTERY
CONNECTING A DC POWER SUPPLY
■ Power supply connections
Use an optional DC power supply with a 25 A capacity
and above when operating the transceiver with AC
power. Refer to the diagrams below.
CAUTION: Before connecting the DC power
cable, check the following important items. Make
sure:
• The [POWER] switch is OFF.
•Output voltage of the power source is 12–15 V
when you use a non-Icom power supply.
• DC power cable polarity is correct.
Red : positive + terminal
Black : negative _ terminal
NEVER connect to
a 24 V battery.
NEVER use the cig-
arette lighter socket as
a power source.
NOTE: Use terminals for
the cable connections.
