63
10
SET MODE

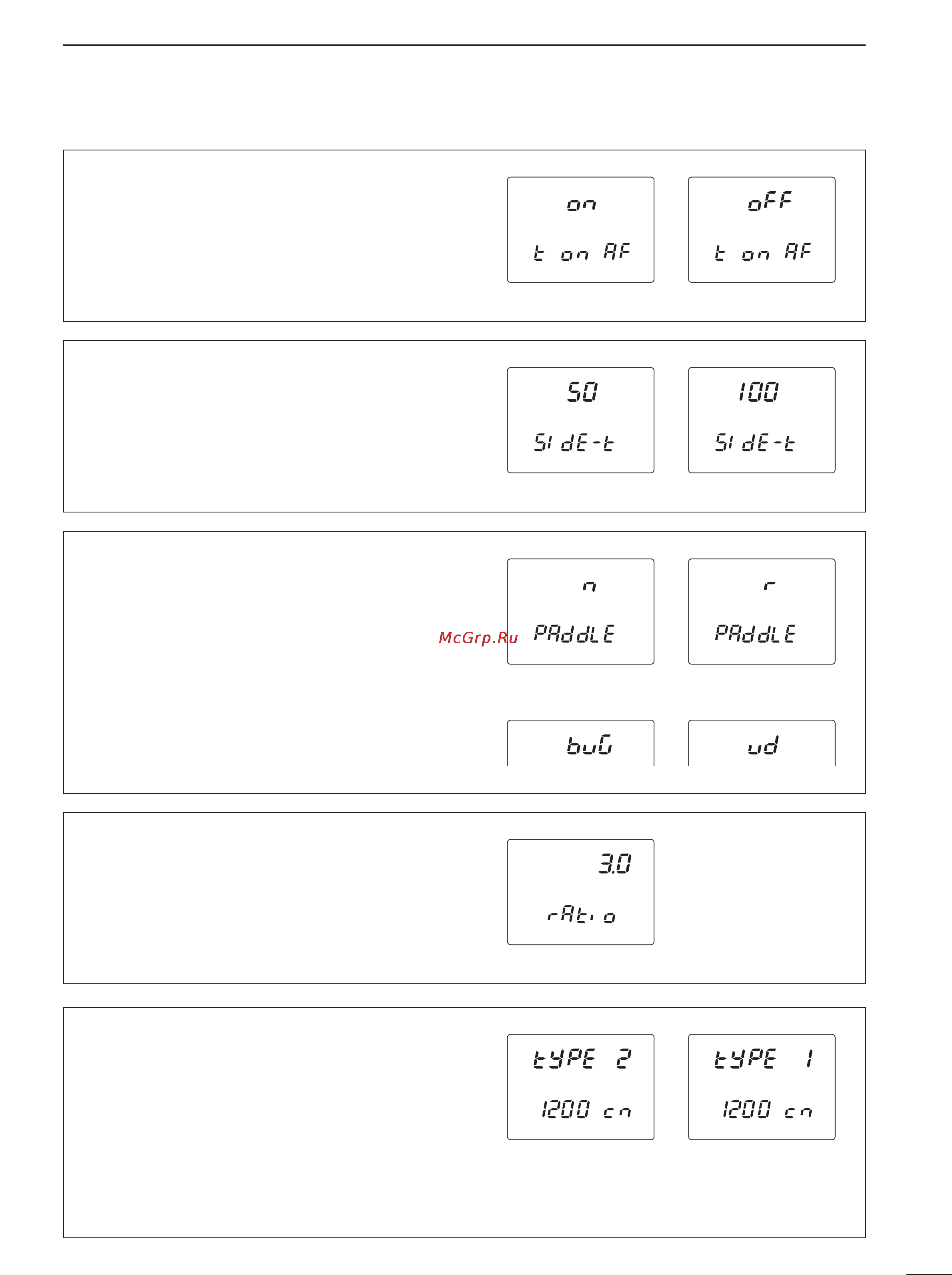

AF control relation
Turn the relation of [AF] control for CW side tone out-
put level ON and OFF.
• on : CW side tone output level is adjustable via
[AF] control adjustment.
• oFF : CW side tone output level is fixed regard-
less of [AF] control setting.
CW CW
CW side tone output level
Adjust the CW side tone output to the desired level
within 0 (no output) to 100 (maximum output) range.
CW CW
Key type
Select the key type from normal, reverse, bug, OFF
and microphone [UP]/[DN].
• n : Use built-in electronic keyer.
• r : Use built-in electronic keyer with reversed
polarity.
• buG : Use built-in electronic keyer as bug key.
• oFF : Use external electronic keyer or straight key.
• ud : Use microphone’s [UP]/[DN] as a paddle.
CW CW
CW dot-dash ratio
Adjust the CW dot-dash ratio to the desired level
within 1:1:2.8 to 1:1:4.5 range.
CW
C/N type for 1200 MHz
Select the C/N type for the 1200 MHz band operation
from type 1 and 2.
• tyPE 1 : Provides better characteristics for nearby in-
terference in FM mode operation.
• tyPE 2 : Provides lower noise level just around the
signal in SSB/CW mode operation.
This item is displayed only when the optional UX-910
is installed.
USBUSB
LSBLSB
C
W
F
M
