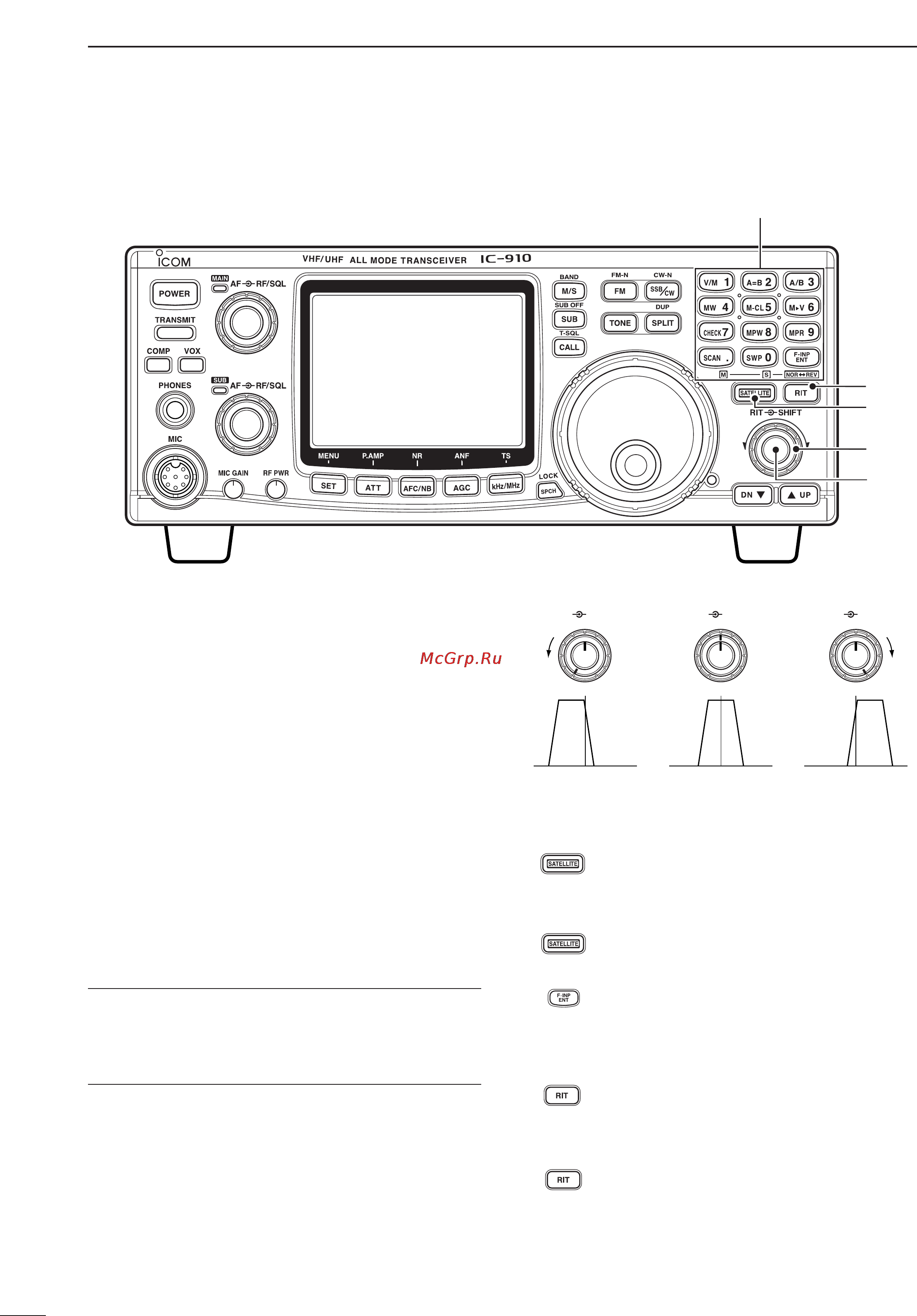

PANEL DESCRIPTION
@4 RIT CONTROL [RIT] (p. 27)
Shifts the receive frequency without changing the
transmit frequency for the MAIN band only while the
RIT function is activated.
• SSB/CW mode : ±1.0 kHz* in 10 Hz step
• FM mode : ±5.0 kHz* in 50 Hz step
*For 1200 MHz band; ±2.0 kHz and ±10.0 kHz, respec-
tively when the optional UX-910 is installed.
• By using the Sub dial function, the RIT control can be
used as the MAIN/SUB tuning dial or the SUB band IF
shift control. See page 24 for details.
@5 IF SHIFT CONTROL [SHIFT]
Shifts the center frequency of the receiver’s IF
passband within 1.2 kHz range.
• By using the Sub dial function, the IF shift control can be
used as the MAIN/SUB tuning dial or the SUB band IF
shift control. See page 24 for details.
✔
What is the Sub dial function?
The [RIT] and [SHIFT] controls are used for RIT and IF shift
controls for the MAIN band by default. However, the Sub dial
function assigns these controls as the MAIN/SUB tuning dial
or the SUB band IF shift control. (p. 24, 68)
@6 SATELLITE SWITCH [SATELLITE]
➥ Push to enter satellite mode (RX on
MAIN, TX on SUB band). Push again to
return to the condition before entering
into the satellite mode.
➥ Push to enter satellite mode using the
current operating frequencies when
pushing for 1 sec.
•To change the normal and reverse satellite
operations, push [F-INP/ENT] for 1 sec.
@7 RIT SWITCH [RIT] (p. 27)
➥ Push to switch the RIT control activity ON
and OFF.
•“RIT” indicator appears when the RIT func-
tion is in use.
➥ Push for 1 sec. to switch the Sub dial
function ON and OFF.
•“RIT” indicator flashes and the [RIT] and
[SHIFT] controllers acts as the controllers
specified in the RIT/SHIFT set mode. (p. 68)
@8 KEYPAD
Numeral and other function keys for tuning and ac-
For 1 sec.
For 1 sec.
For 1 sec.
RIT S
H
IFT
RIT S
H
IFT
RIT S
H
IFT
Center positionMax. counter-
clockwise position
Max. clockwise
position
■ Front panel
(continued)
@4
@5
@6
@8
@7
