39
5
RECEIVE AND TRANSMIT
◊ Setting keying speed
q Push [SET] then [SSB/CW] to enter the SSB/CW
set mode.
w Push [DN ▼] or [▲ UP] to select the keying speed
item.
•“SPEEd” is displayed.
e Rotate the tuning dial to adjust the keying speed to
the desired speed.
• Keying speed can be selected from 6–60 wpm.
•Push [M-CL 5] for 1 sec. to return to the default value.
r Push [SSB/CW] to exit the SSB/CW set mode.
◊ Setting semi break-in function
q Push [SET] then [SSB/CW] to enter the SSB/CW
set mode.
w Push [DN ▼] or [▲ UP] to select the semi break-in
item.
•“br-In” is displayed.
e Rotate the tuning dial to turn the semi break-in func-
tion ON and OFF.
•Push [M-CL 5] for 1 sec. to return to the default setting.
r Push [DN▼] or [▲ UP] to select the delay time item.
•“dELAy” is displayed.
t Rotate the tuning dial to set the delay time to the
desired time period.
•Delay time can be selected from 2.0–13.0 sec. in
0.1 sec. steps.
• Push [M-CL 5] for 1 sec. to return to the default value.
y Push [SSB/CW] to exit the SSB/CW set mode.
◊ Setting keying weight
q Push [SET] then [SSB/CW] to enter the SSB/CW
set mode.
w Push [DN ▼] or [▲ UP] to select the keying weight
item.
•“rAtio” is displayed.
e Rotate the tuning dial to adjust the keying weight
ratio to the desired level.
•Keying weight ratio can be selected from 1:1:2.8 to
1:1:4.5.
•Push [M-CL 5] for 1 sec. to return to the default value.
r Push [SSB/CW] to exit the SSB/CW set mode.
◊ Setting CW pitch
q Push [SET] then [SSB/CW] to enter the SSB/CW
set mode.
w Push [DN ▼] or [▲ UP] to select the CW pitch item.
•“Pitch” is displayed.
e Rotate the tuning dial to adjust the CW pitch to the
desired pitch.
• CW pitch can be adjusted within 300–900 Hz range.
• Push [M-CL 5] for 1 sec. to return to the default value.
r Push [SSB/CW] to exit the SSB/CW set mode.
◊ Setting side tone
q Push [SET] then [SSB/CW] to enter the SSB/CW
set mode.
w Push [DN ▼] or [▲ UP] to select the side tone item.
•“SidE-t” is displayed.
e Rotate the tuning dial to adjust the side tone level
to the desired level.
• Push [M-CL 5] for 1 sec. to return to the default value.
r Push [SSB/CW] to exit the SSB/CW set mode.

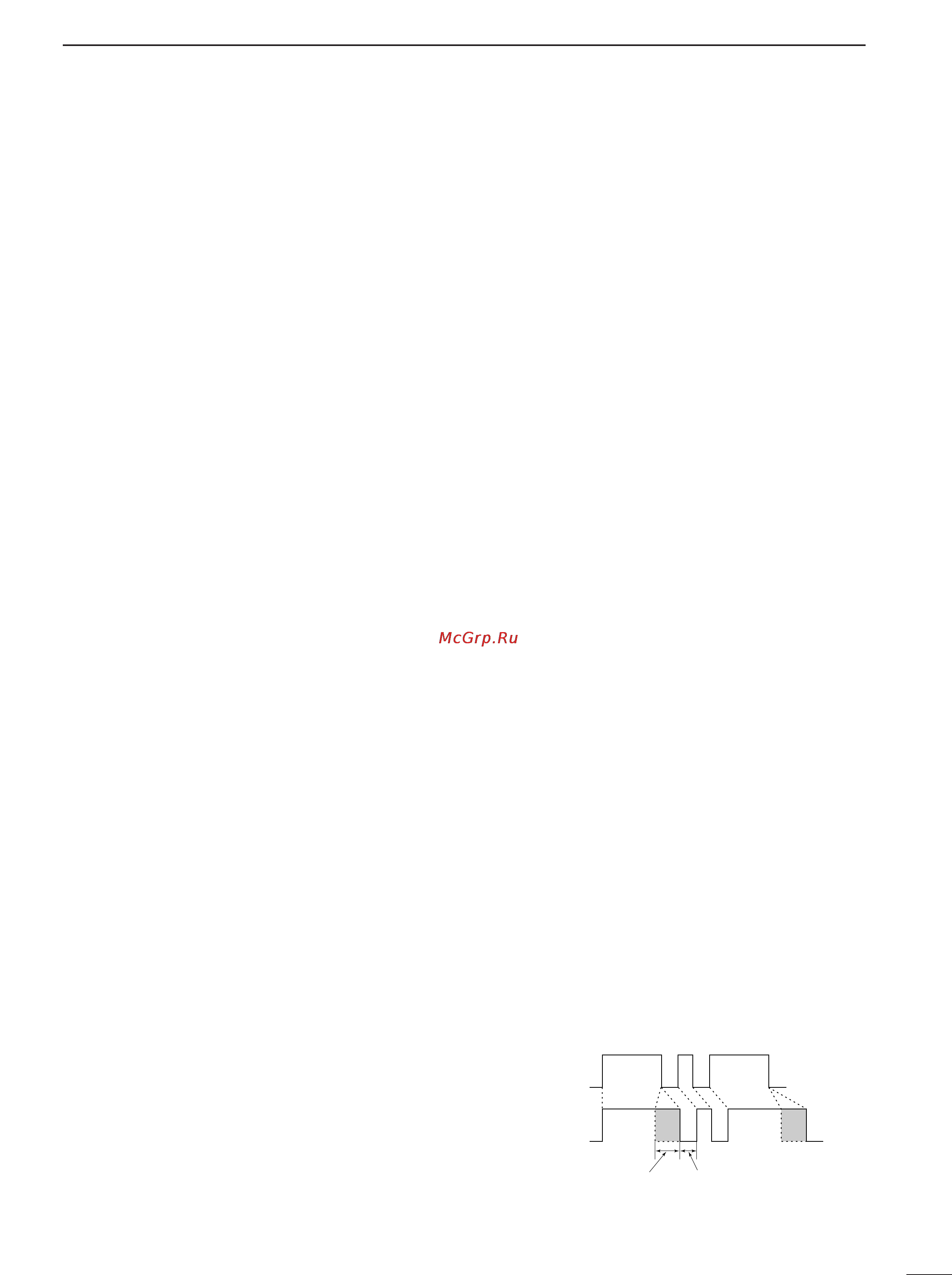

KEYING WEIGHT EXAMPLE: Morse code “K”
DASH
Weight setting:
1:1:3 (default)
Weight setting:
Adjusted
DASH
DOT
(Fixed*)
Adjustable range SPACE (Fixed*)
*SPACE and DOT length can be adjusted with the
keying speed only.
