49
8
SATELLITE OPERATION

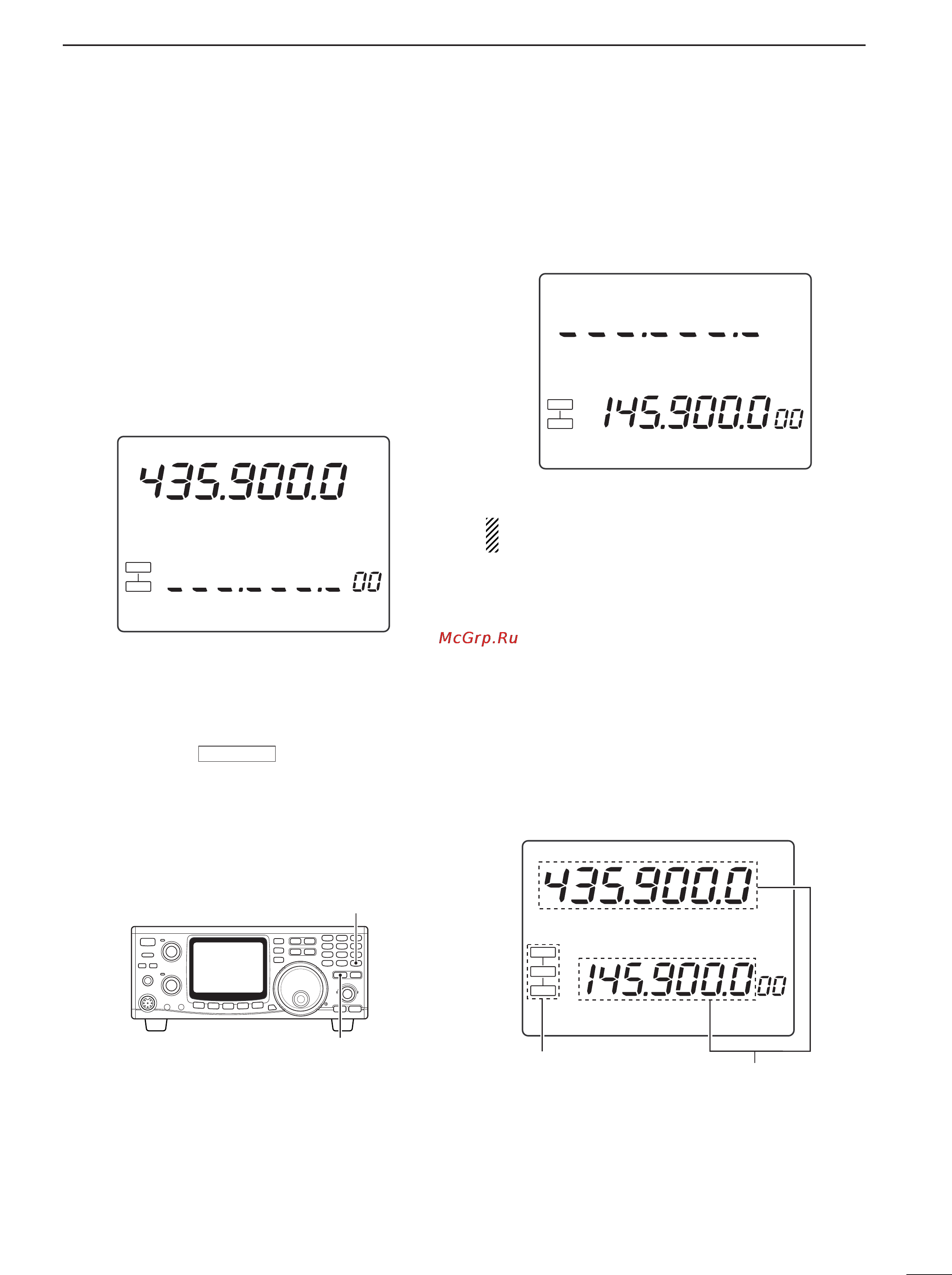

■ Setting the satellite VFO
q Push [SATELLITE] to enter the satellite mode.
•“SATL” indicator with either “NOR” or “REV” indicator ap-
pears.
w Push [V/M 1] to toggle satellite VFO and memory
mode.
•VFO or memory mode indicator is displayed in the SUB
band (lower area).
e Push [SCAN . Â] to enable the downlink frequency
tuning.
• Uplink frequency indication disappears.
•Rotate the tuning dial to set the downlink frequency and
push [SSB/CW] to select the operating mode.
• Push [SCAN . Â] again after the tuning.
r Push [SWP 0 Í] to enable the uplink frequency
tuning.
• Downlink frequency indication disappears.
• Push [SWP 0 Í] again after the tuning.
NOTE: To select the operating mode for the uplink,
push [SUB] to enable the SUB band access.
USBUSB
M
E
MO
L
SB
S
A
T
L
RE
V
S 1 3
5
7
9 2020
4040
60dB60dB
60dB
S
1
3 5
7
9
20
40
USBUSB
M
E
MO
L
SB
S
A
T
L
RE
V
S 1 3
5
7
9 2020
4040
60dB60dB
60dB
S
1
3 5
7
9
20
40
■ Tracking selection
•Push [F-INP ENT ] for 1 sec. to switch be-
tween normal and reverse tracking.
◊ Normal tracking
Both downlink and uplink frequencies increase or de-
crease in the same step simultaneously by tuning dial
rotation.
◊ Reverse tracking
The downlink frequency follows the tuning dial rotation,
however, the uplink frequency changes in the reverse
direction to the tuning dial rotation in the same step.
USBUSB
M
E
MO
L
SB
NOR
S
A
T
L
RE
V
S 1 3
5
7
9 2020
4040
60dB60dB
60dB
S
1
3 5
7
9
20
40
Satellite mode indication
Varies simultaneously
[SATELLITE]
[F-INP ENT]
NOR ↔ REV
