62
10

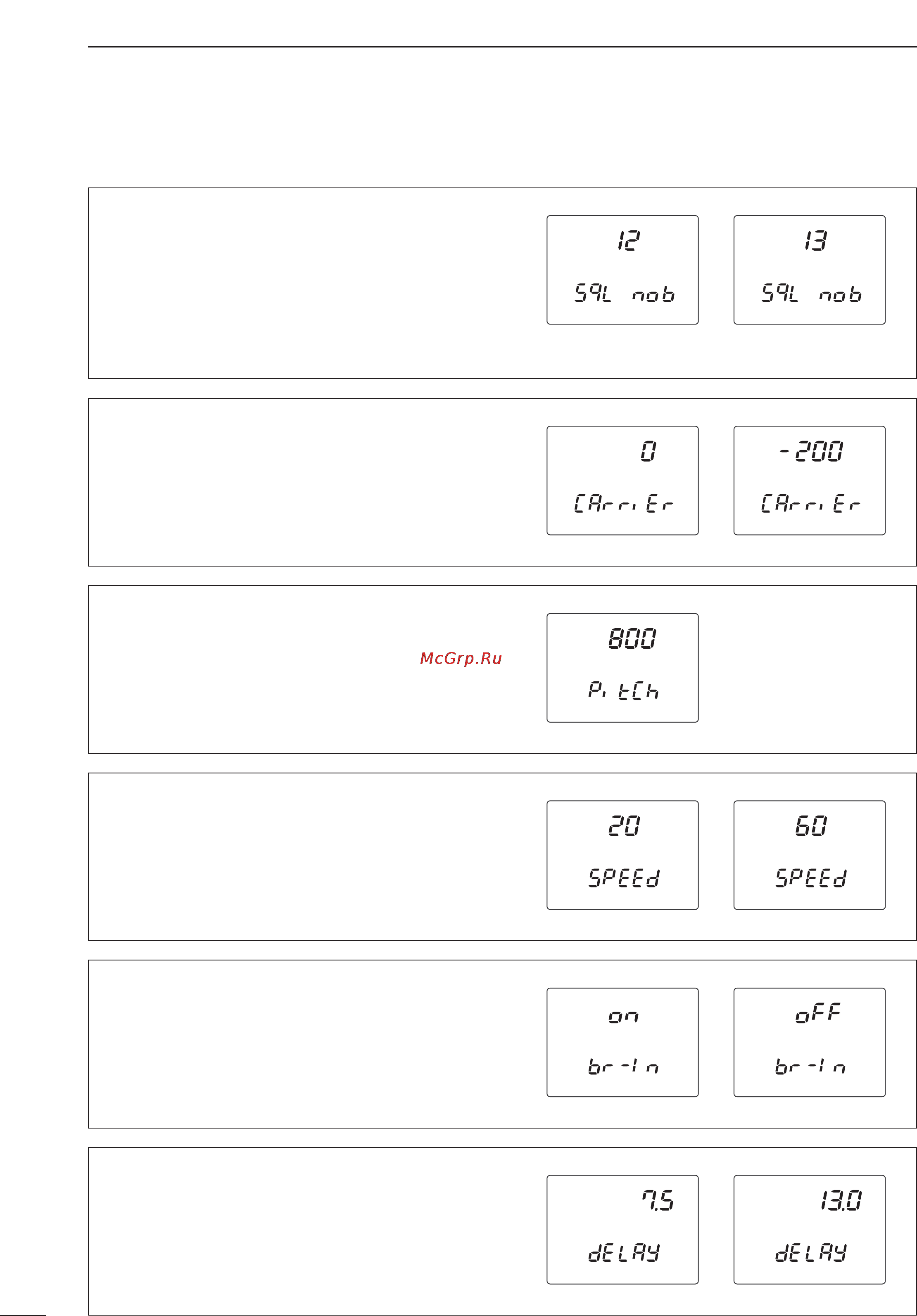

SET MODE
■ SSB/CW set mode
Squelch threshold
Select the squelch threshold level from 12 and 13 o’-
clock.
• 12 : The squelch closes around the 12 o’clock po-
sition of the [SQL] control.
• 13 : The squelch closes around the 13 o’clock po-
sition of the [SQL] control.
Carrier frequency
Adjust the carrier frequency for SSB (USB/LSB)
mode operation within –200 to +200 Hz range in
10 Hz steps.
L
SB
U
SB
L
SB
U
SB
CW pitch frequency
Adjust the CW pitch frequency within 300 to 900 Hz
range in 10 Hz steps.
CW
CW keying speed adjustment
Adjust the built-in electric keyer keying speed to the
desired level within 6 to 60 WPM range.
CW CW
Semi break-in
Turn the semi break-in function ON and OFF.
CW CW
CW break-in delay
Adjust the CW break-in delay time to the desired level
within 2.0 to 13.0 sec. range in 0.1 sec. steps.
CW CW
