Icom IC-910H [83/86] Options
![Icom IC-910H [83/86] Options](/views2/1074431/page83/bg53.png)
15
81

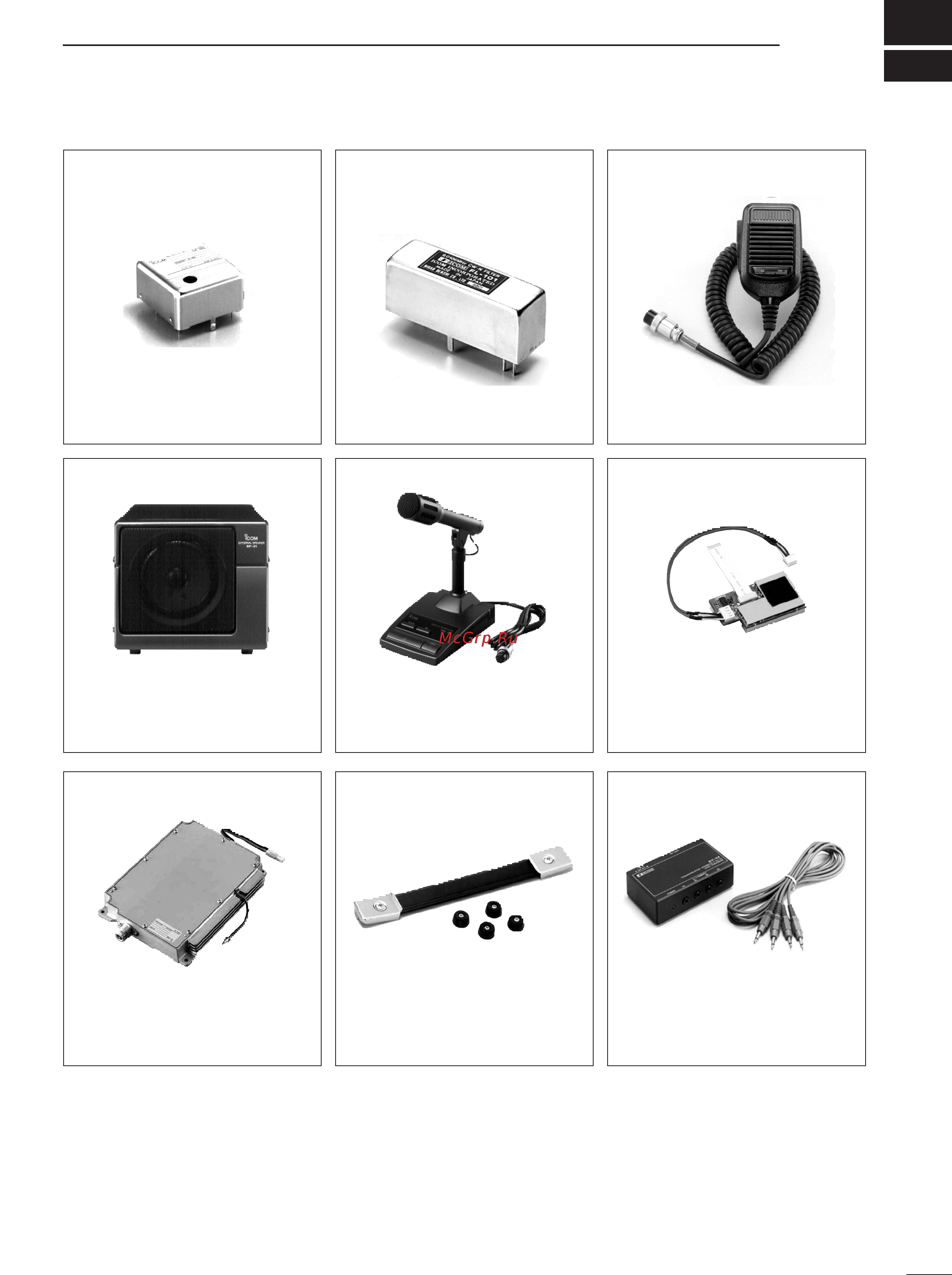

OPTIONS
SM-20 DESKTOP MICROPHONE
Unidirectional, electret microphone for
base station operation. Includes [UP]
and [DOWN] switches and a low cut
function.
SP-21 EXTERNAL SPEAKER
Designed for base station operation.
• Input impedance: 8 Ω
• Max. input power: 5 W
CT-17 CI-V LEVEL CONVERTER
For remote transceiver control using a
personal computer. You can change
frequencies, operating mode, memory
channels, etc.
HM-12 HAND MICROPHONE
Hand microphone equipped with
[UP]/[DOWN] switches. Same as that
supplied with the transceiver.
CR-293 HIGH STABILITY
CRYSTAL UNIT
Frequency stability: ±0.5 ppm
(0˚C to +60˚C)
FL-132 (for MAIN band)
FL-133 (for SUB band and satellite
operation)
CW NARROW FILTERS
Have good shape factor and provide
better CW reception during crowded
band conditions. 500 Hz/–6dB
MB-23 CARRYING HANDLE
Carrying handle, convenient for
portable operation.
UX-910 1200 MHz BAND UNIT
Allows you additional all mode opera-
tion on the 1200 MHz band.
UT-106 DSP UNIT
Allows AF DSP capabilities, including
noise reduction and auto notch filter.
AG-25 (for 144 MHz band),
AG-35 (for 430(440) MHz band),
AG-1200 (for 1200 MHz band)
WEATHER-PROOF PREAMPLIFIERS
External all-weather, mast mounting preamplifiers for com-
pensating for coaxial cable loss.
IC-MB5 MOBILE MOUNTING BRACKET
Transceiver mounting bracket for mobile operation.
SP-7 EXTERNAL SPEAKER
Compact speaker for base station operation.
UT-102 VOICE SYNTHESIZER UNIT
Announces the receive frequency, mode and S-meter level
in a clear, electronically-generated voice, in English (or
Japanese).
