6
40

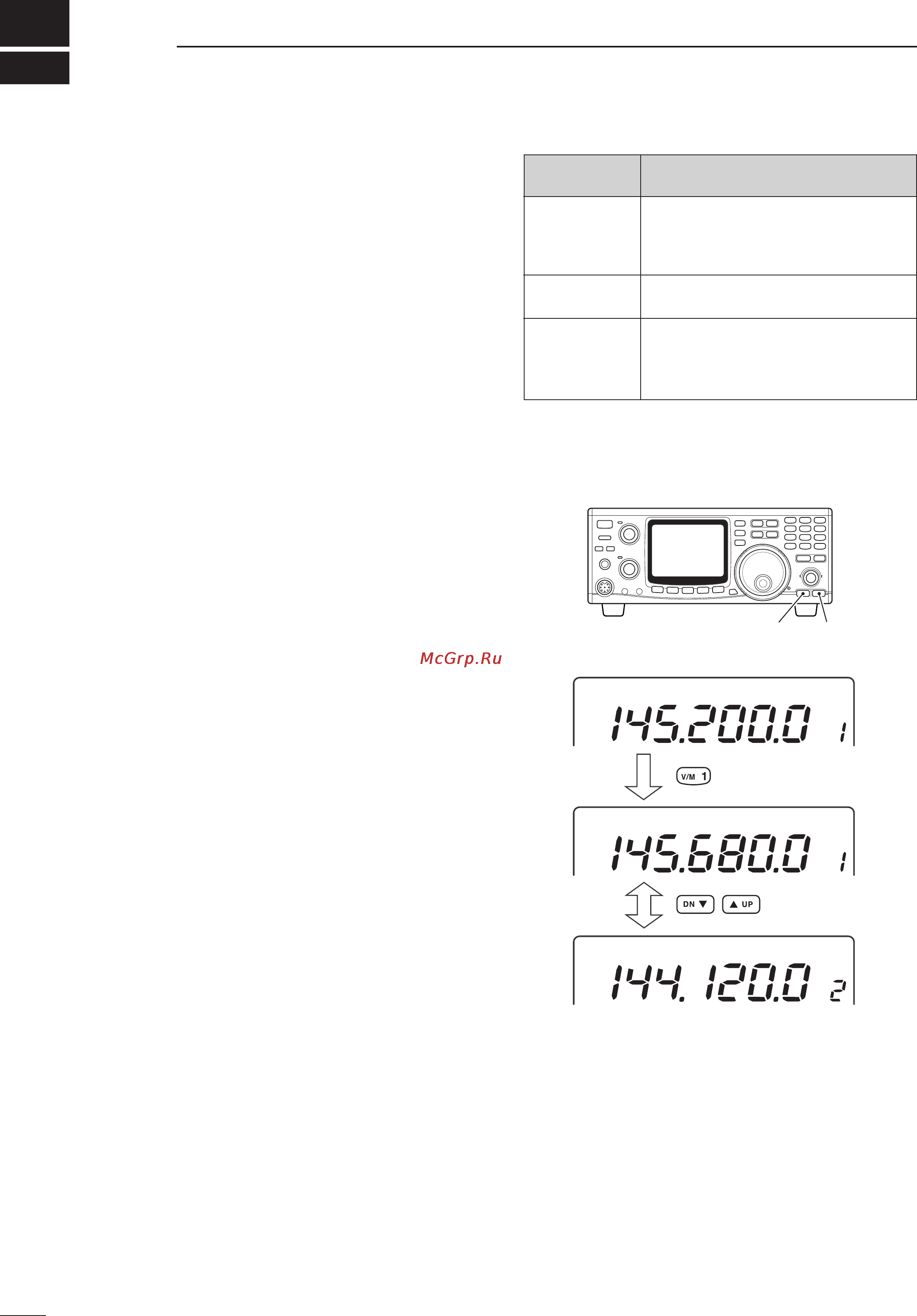

MEMORY OPERATION
■ Memory channels
The IC-910H has 106 memory channels (99 for regu-
lar, 6 scan edges and 1 call) and they are equipped for
each frequency band for storing the most often used
frequencies and operating mode, as well as tone fre-
quency, offset frequency, etc.
■ Operation on a memory
channel
Frequency and mode, etc., can be changed in a mem-
ory channel. However, they will be cleared if [MW 4] is
not pushed.
◊ Memory channel selection
q Push [V/M 1] to select memory channel mode.
•“MEMO” indicator appears.
w Push [DN ▼] or [▲ UP] to select the desired mem-
ory channel.
• Memory channel changes continuously while holding
[DN ▼] or [▲ UP].
• The tuning dial rotation while pushing [F-INP ENT] also
selects memory channel.
e Push [V/M 1] to return to VFO mode.
◊ During VFO mode operation
By pushing [DN▼] or [▲ UP] during VFO mode opera-
tion, memory channel is also selectable. However, the
frequency readout does not change in this case, only
the memory channel number changes.
F
M
VFO A
MEMO
F
M
MEMO
USBUSB
Select memory mode
Select memory
channel
[UP ∫][DN √]
Memory
Channel
1–99
1A/1b–3A/3b
C
Description
Regular memory channels. Programs op-
erating frequency, mode, subaudible tone
activity with frequency and split/duplex
conditions.
Scan edge channels. Programs edge fre-
quencies for programmed scan.
Call channel recalls a specified fre-
quency on the instant. Programs operat-
ing frequency, mode, etc., and is avail-
able for each band, independently.
