SET MODE
■ Speech set mode

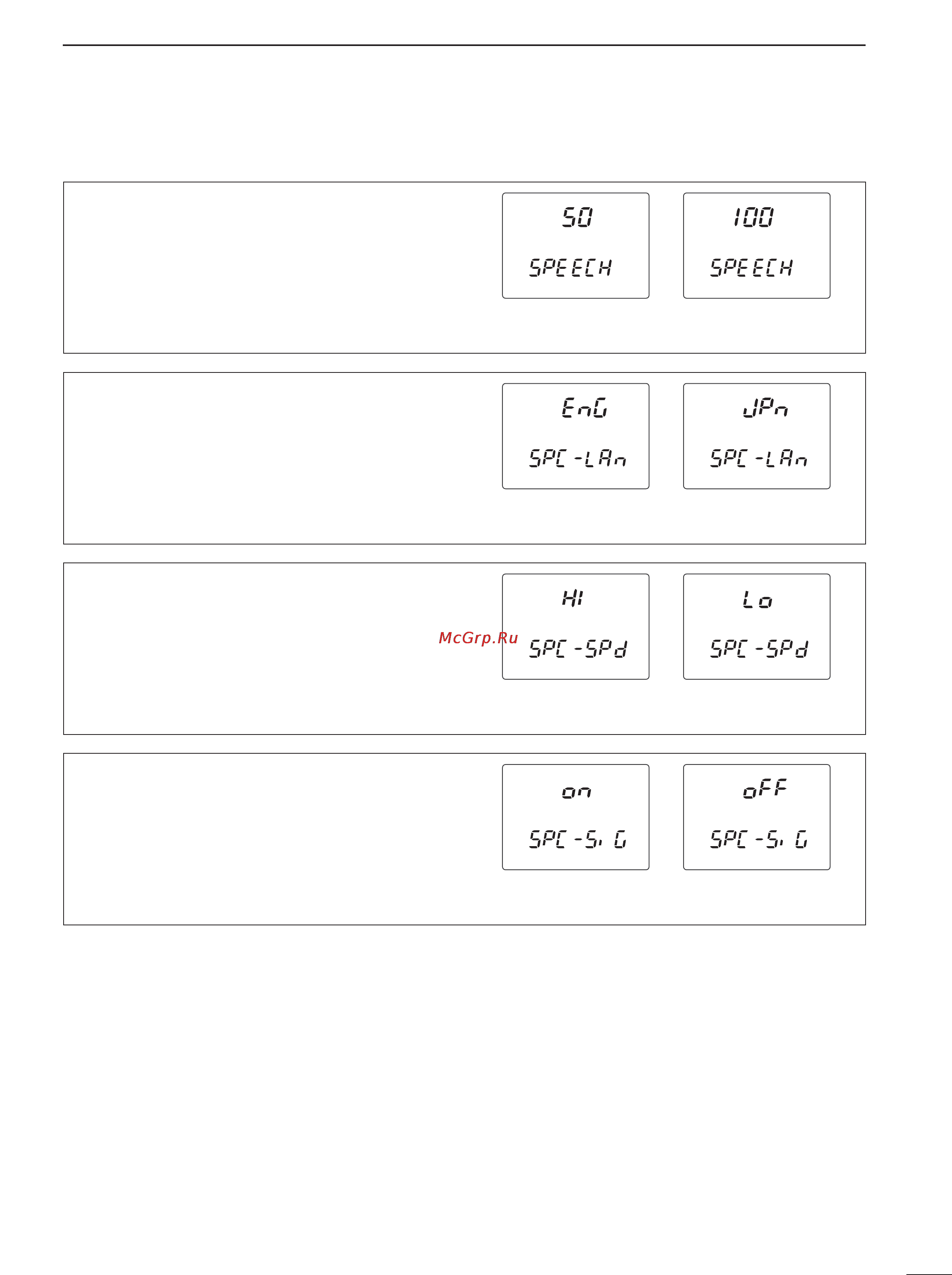

Output level
Adjust the speech audio output level within 0 (no out-
put) to 100 (maximum output) range.
• Default value: 50
Announcement language
Select the announcement language from English,
Japanese and OFF.
• EnG : Announces in English.
• JPn : Announces in Japanese
• oFF : No announcement.
Announcement speed
Select the announcement speed from high and low.
• HI : Faster announcement.
• Lo : Slower announcement.
S-meter level announcement
Turn the S-meter level announcement capability ON
and OFF.
• on : Announces S-meter level with the operating
frequency.
• oFF : Announces the operating frequency only.
