BASIC OPERATION
■ Operating band selection
(optional UX-910 is required)
The IC-910H can be used on the additional 1200 MHz
band with the optional UX-910. The operating band
can be selected by pushing [M/S•BAND] for 1 sec.
◊ Selecting on the MAIN band
q Push [SUB] to cancel the SUB band access, if re-
quired.
w Push [M/S•BAND] for 1 sec. to select operating
band.
NOTE: The same operating band cannot be as-
signed on both MAIN and SUB bands, simultane-
ously.
◊ Selecting on the SUB band
q Push [SUB] to enable the SUB band access.
•“SUB” indicator appears.
w Push [M/S•BAND] for 1 sec. to select operating
band.
[SUB] [M/S•BAND]
F
M
VFO A
VFVF
O
A
S 1 3
5
7
9 2020
4040
60dB60dB
60dB
S
1
3 5
7
9
20
40

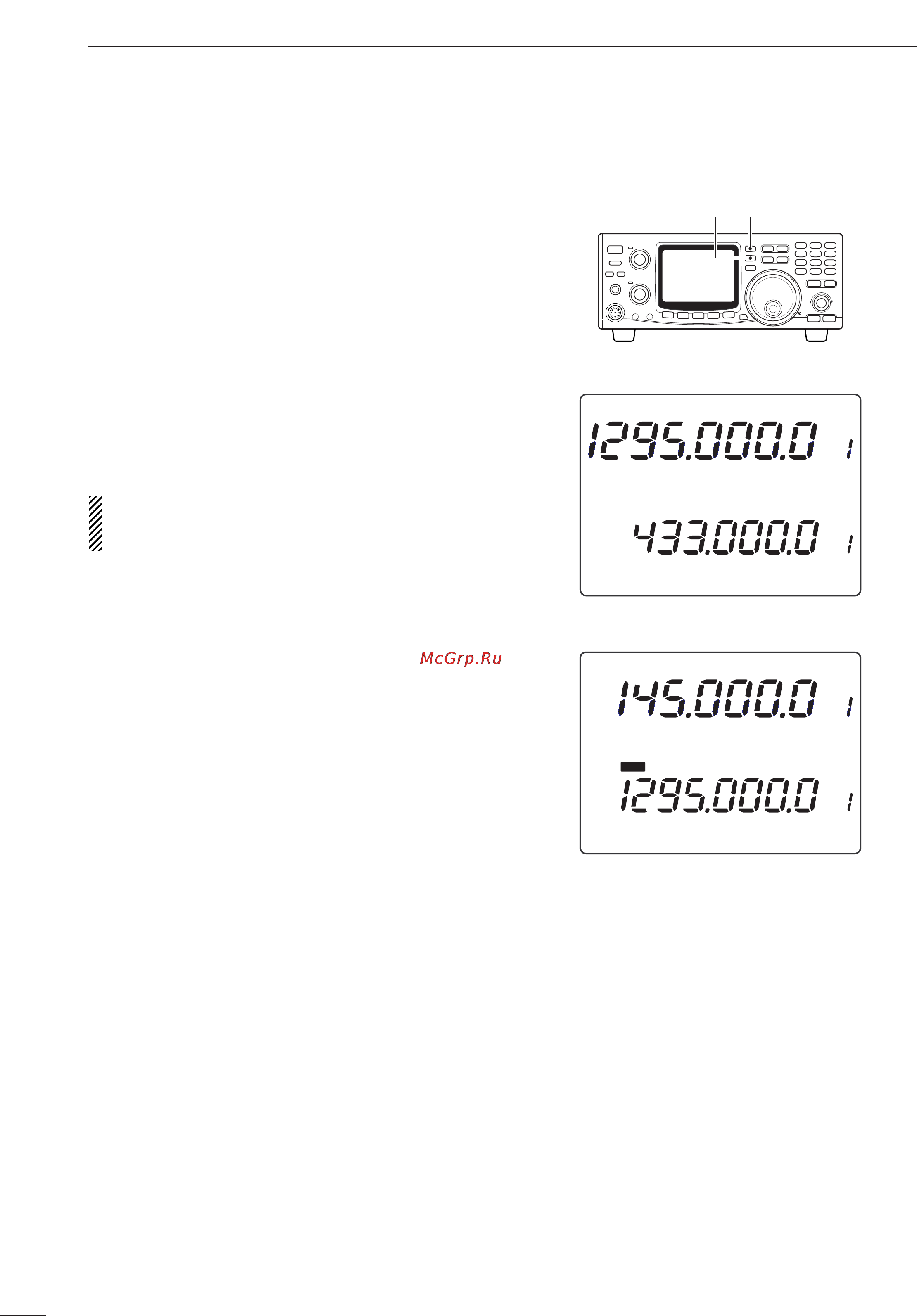

Select 1200 MHz to MAIN band.
F
M
VFO A
VFVF
O
A
F
M
S
U
B
S 1 3
5
7
9 2020
4040
60dB60dB
60dB
S
1
3 5
7
9
20
40
Select 1200 MHz to SUB band.
