73
11
OPTION INSTALLATIONS

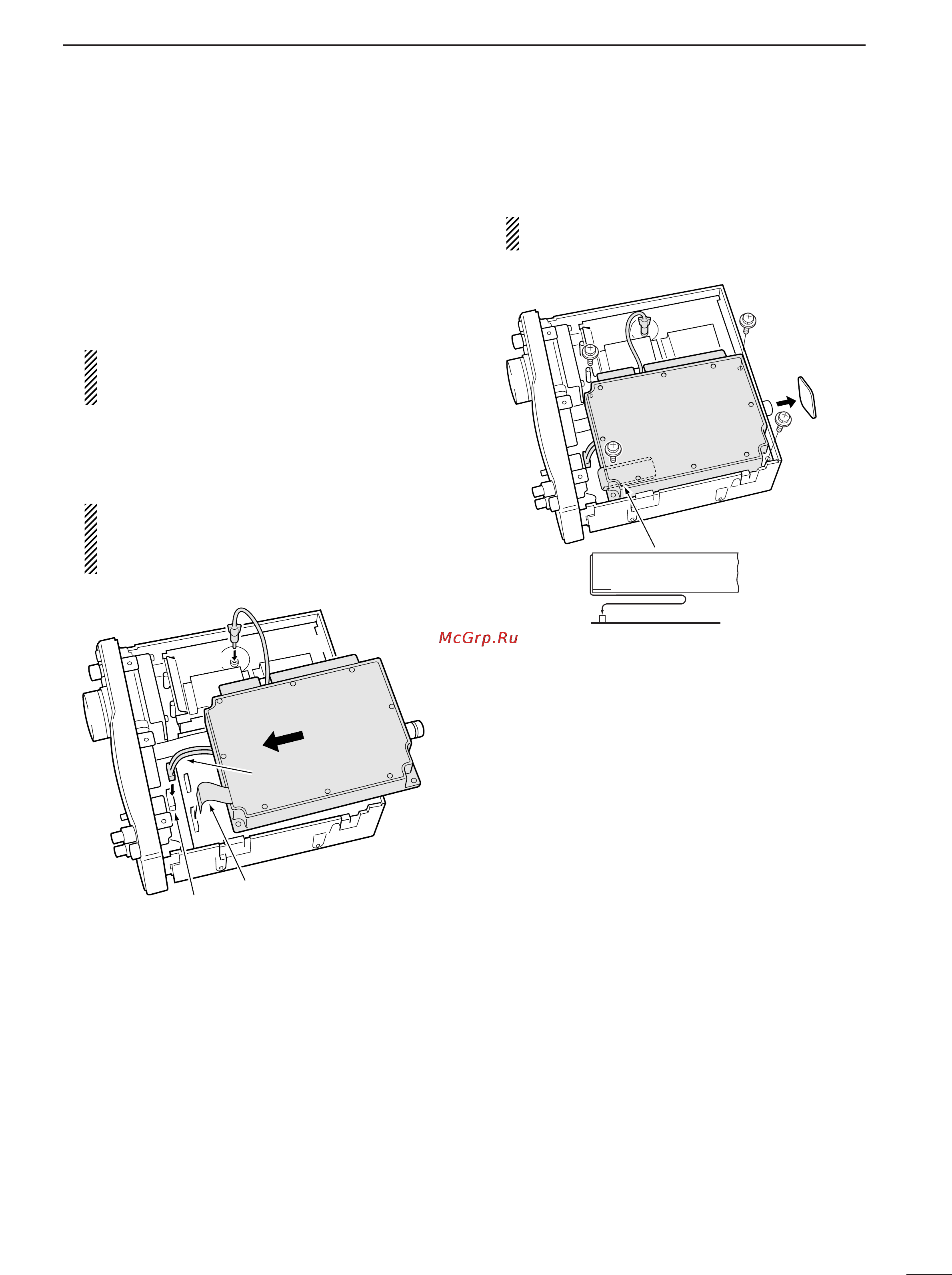

The UX-910 is a band unit for 1200 MHz band opera-
tion. FM, SSB (USB/LSB), CW and CW narrow mode
operations are available.
q Remove the bottom cover as shown in the diagram
on p. 71.
w Remove the antenna plate from the chassis using
a standard screw driver.
WARNING!
NEVER attempt to remove the antenna plate
using your finger, this may result in injury.
e Connect the FFC (Flexible Flat Cable) of the
UX-910 to J2 on the MAIN unit, DC power cable to
the power connector (W305) from the PA unit and
the coaxial cable to the J541 on the PLL unit.
CAUTION
NEVER catch the cables from the optional DSP
unit(s) between chassis and the UX-910, this
may damage the DSP unit(s) and/or transceiver.
r Place the UX-910 using the supplied 4 screws.
BE CAREFUL not to drop the supplied screws
inside the transceiver.
t Return the bottom cover to its original position.
Antenna plate
UX-910
Turn the flexible flat cable up under the UX-910.
J2
MAIN unit
Flexible flat cable
UX-910
J541
J2
UX-910
PLL unit
Power connector
DC power cable
Coaxial cable
Flexible flat cable
■ UX-910
1200 MHz BAND UNIT
