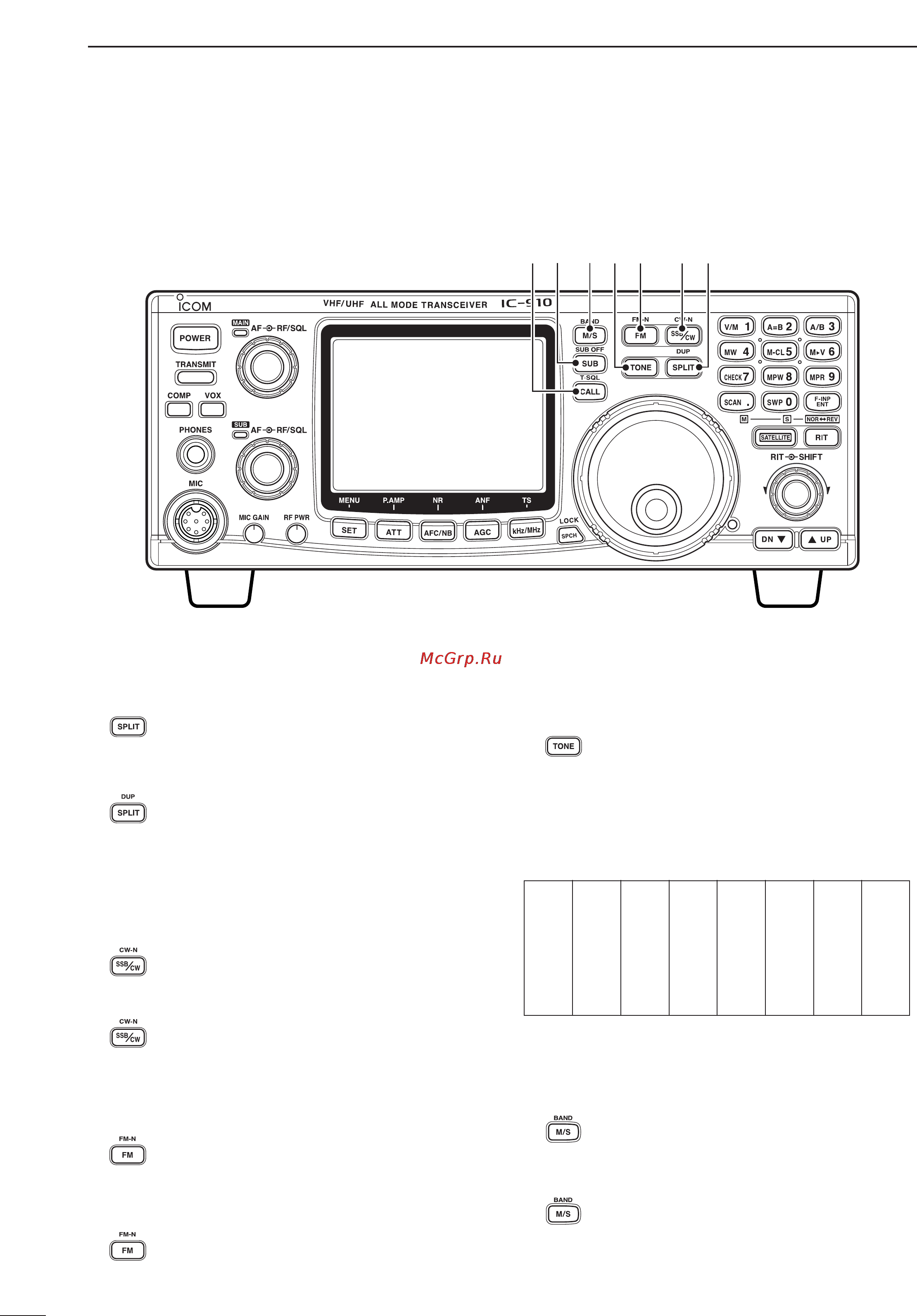

Icom IC-910H [10/86] I front panel
![Icom IC-910H [10/86] I front panel](/views2/1074431/page10/bga.png)
8
2
PANEL DESCRIPTION
@9 SPLIT•DUPLEX SWITCH [SPLIT•DUP]
➥ Push to turn the split function, with the
VFO A and B, ON and OFF. (p. 37)
•The split operation is not available for the
SUB band.
➥ Push for 1 sec. to select the duplex (re-
peater) direction or to turn the function
OFF. (p. 34)
•The duplex operation is not available for the
SUB band.
#0 SSB/CW•CW-NARROW SWITCH
[SSB/CW•CW-N]
➥ Push to switch the operating mode be-
tween SSB and CW. (p. 23)
➥ Push for 1 sec. to switch the operating
mode between USB and LSB or between
CW and CW narrow during SSB or CW
mode, respectively.
#1 FM•FM-NARROW SWITCH [FM•FM-N] (p. 23)
➥ Push to switch the operating mode be-
tween FM and FM repeater mode.
•The duplex operation can be made in MAIN
band only, it cannot be operated in SUB
band.
➥ Push for 1 sec. to switch the operating
mode between FM and FM-N (FM nar-
row).
•The FM-N mode cannot be selected in
1200 MHz band operation.
#2 TONE SWITCH [TONE]
➥ Push to turn the tone encoder function
ON and OFF in FM mode. (p. 31; except
for European version)
•“T” indicator appears in the display when the
tone encoder is activated.
➥ Push to transmit a 1750 Hz repeater tone
in FM mode for European version.
Available repeater tones (Unit: Hz)
#3 MAIN/SUB CHANGE•BAND SWITCH
[M/S•BAND]
➥ Push to replace the MAIN band’s fre-
quency and mode with the SUB band’s.
(p. 19)
➥ Push for 1 sec. to change the operating
band during single band operation or
when the optional band unit, UX-910, is
installed. (p. 20)
For 1 sec.
For 1 sec.
For 1 sec.
For 1 sec.
#5
#4
#3
#2
#1
#0
@9
67.0
69.3
71.9
74.4
77.0
79.7
82.5
085.4
088.5
091.5
094.8
097.4
100.0
103.5
107.2
110.9
114.8
118.8
123.0
127.3
131.8
136.5
141.3
146.2
151.4
156.7
159.8
162.2
165.5
167.9
171.3
173.8
177.3
179.9
183.5
186.2
189.9
192.8
196.6
199.5
203.5
206.5
210.7
218.1
225.7
229.1
233.6
241.8
250.3
254.1
■ Front panel
(continued)
