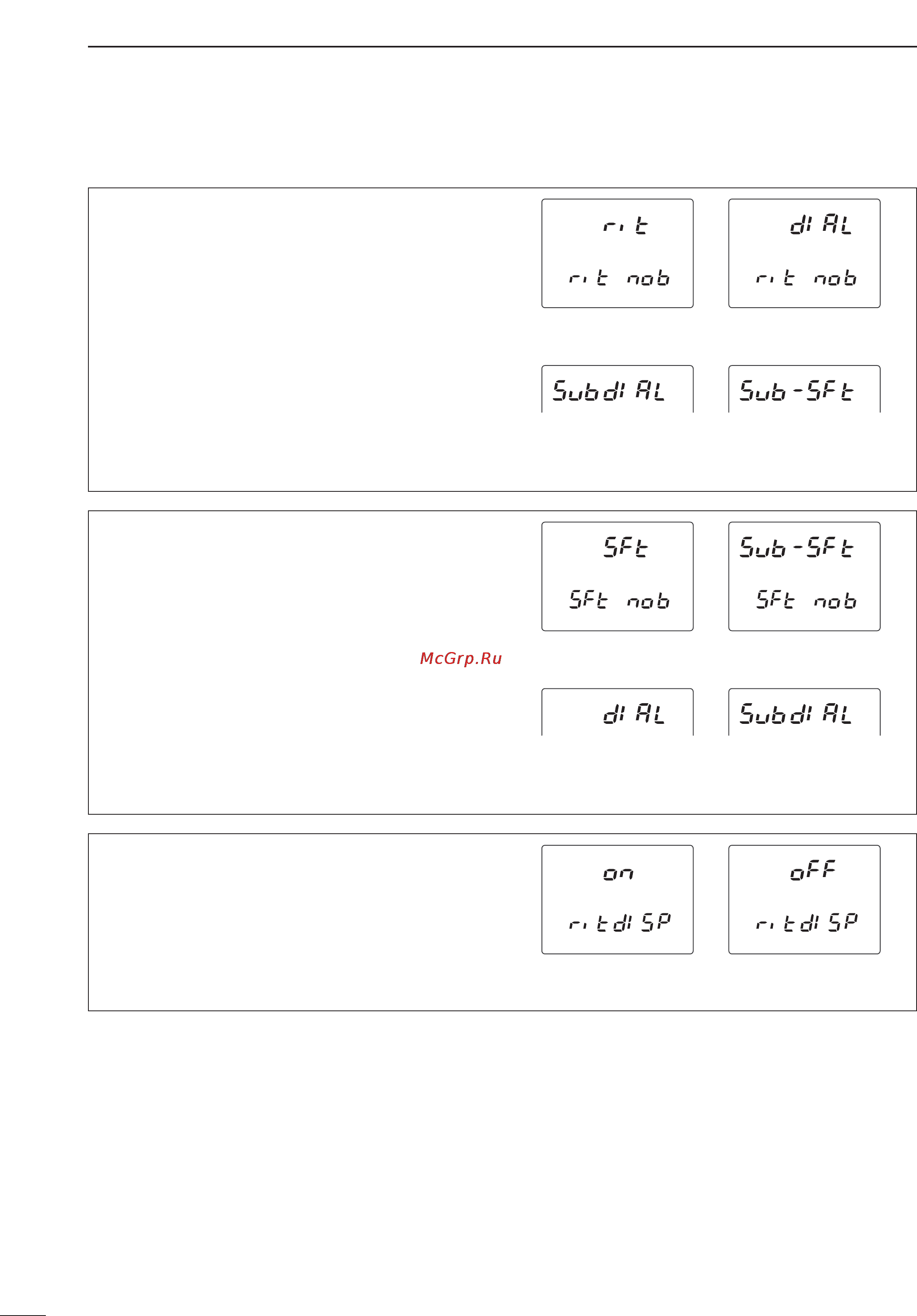

■ RIT/SHIFT set mode
68
10
SET MODE
RIT control assignment
Assign [RIT] control function from rit, dIAL, SubdIAL
and Sub-SFt.
• rit : [RIT] control functions as RIT control.
• dIAL : [RIT] control functions as tuning dial for
MAIN band.
• SubdIAL : [RIT] control functions as tuning dial for
SUB band.
• Sub-SFt : [RIT] control functions as IF shift control
for SUB band.
SHIFT control assignment
Assign [SHIFT] control function from SFt, Sub-SFt,
dIAL and SubdIAL.
• SFt : [SHIFT] control functions as IF shift con-
trol.
• Sub-SFt : [SHIFT] control functions as IF shift con-
trol for SUB band.
• dIAL : [SHIFT] control functions as tuning dial
for MAIN band.
• SubdIAL : [SHIFT] control functions as tuning dial
for SUB band.
RIT indication
Turn the RIT adjusting value indication ON and OFF.
The value is displayed while adjusting when this func-
tion is turned ON.
