22
4
BASIC OPERATION

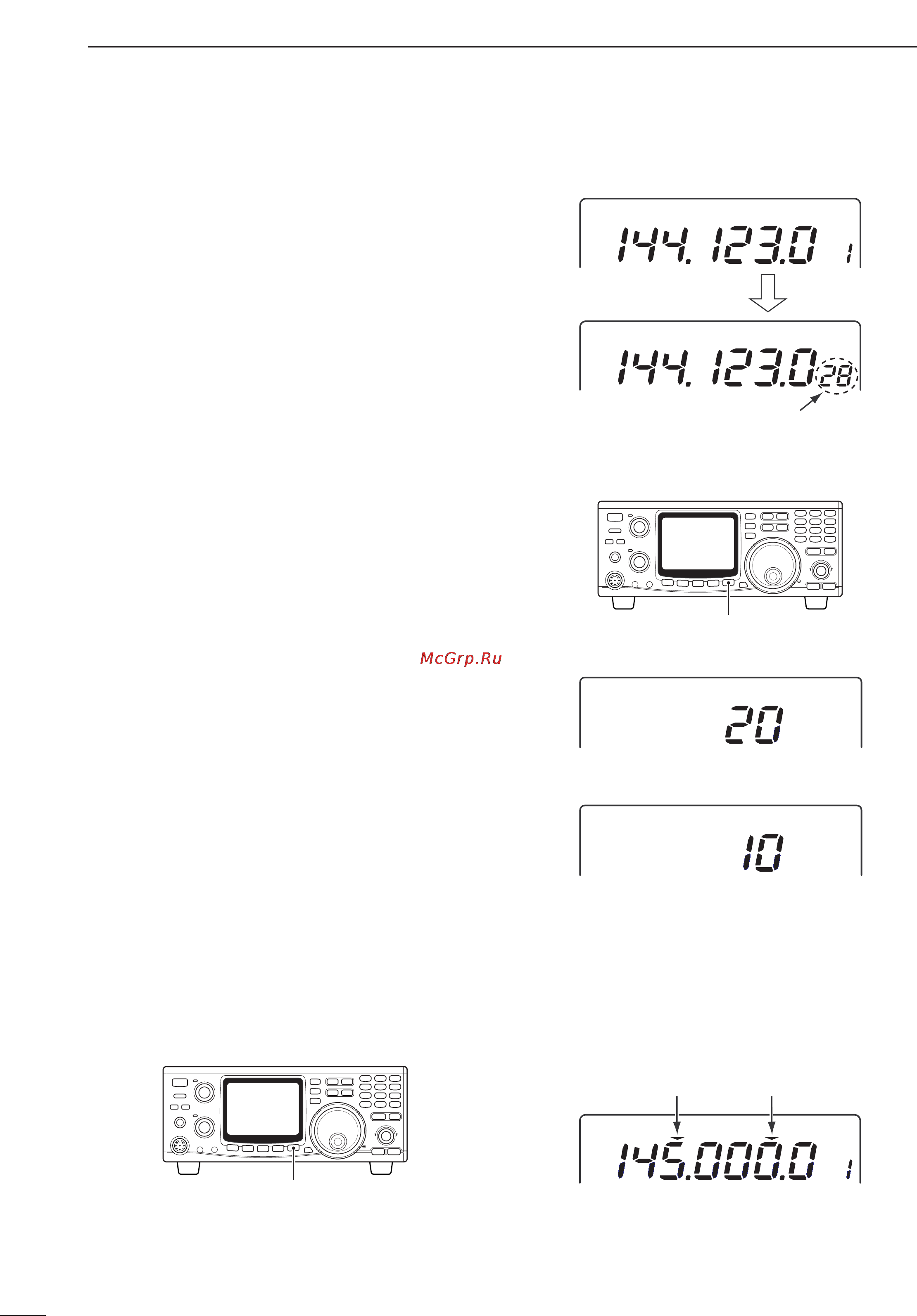

■ Frequency setting
The IC-910H has several tuning steps and a
[kHz/MHz] switch for convenient frequency tuning.
q Push [M/S] to select the desired frequency band as
the MAIN band; or push [SUB] to access the SUB
band.
w Rotate the tuning dial to select the frequency.
• The memory channel number changes to the 10 and
1 Hz digits when rotating the tuning dial with 1, 10,
100 Hz and 6.25 kHz tuning steps.
• When you want to check the 10 and 1 Hz digits during
memory channel number indication, push and hold [A/B]
(10 and 1 Hz digits are indicated while holding).
◊ Tuning step selection
Tuning steps can be pre-set independently for FM and
SSB/CW. The following steps are selectable.
• FM : 0.1, 5, 6.25, 10, 12.5, 20, 25 or 100 kHz
• SSB/CW : 1, 10, 50 or 100 Hz
q Push [M/S] to select the desired frequency band as
the MAIN band; or push [SUB] to access the SUB
band.
w Push [FM] or [SSB/CW] to select the desired oper-
ation mode.
e Push [kHz/MHz•TS] for 1 sec. to enter the tuning
step set mode.
r Rotate the tuning dial to select the desired tuning
step.
t Push [kHz/MHz•TS] to return to previous display.
◊ Quick tuning step
The operating frequency can be changed in 1 kHz
steps or 1 MHz steps for quick tuning.
➥ Push [kHz/MHz•TS] to switch the quick tuning step
in sequence 1 kHz, 1 MHz and OFF.
USBUSB
VFO A
USBUSB
10 Hz/1 Hz indication
While tuning
[kHz/MHz•TS] for 1 sec.
F
M
USBUSB
(20 kHz tuning step)
(10 Hz tuning step)
FM mode tuning step set mode
SSB/CW mode tuning step set mode
[kHz/MHz•TS]
F
M
VFO A
1 kHz tuning step1 MHz tuning step
