64
10
SET MODE

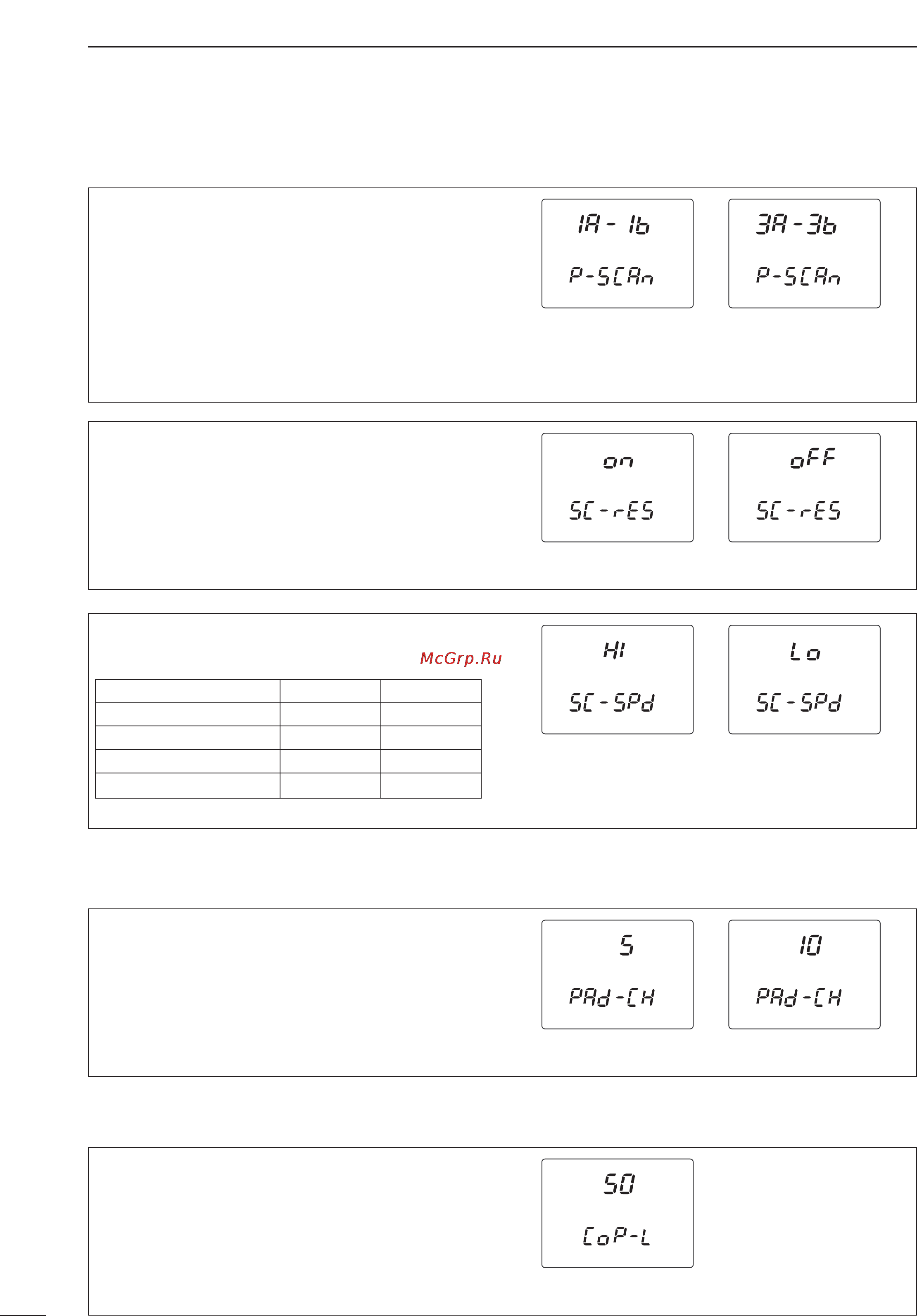

■ Scan set mode
■ Memo pad set mode
Programmed scanning range
Select the programmed scan range from 1A-1b, 2A-
2b and 3A-3b.
• 1A-1b : Scans within the range programmed in the
memory channel 1A and 1b.
• 2A-2b : Scans within the range programmed in the
memory channel 2A and 2b.
• 3A-3b : Scans within the range programmed in the
memory channel 3A and 3b.
S
C
A
N
S
C
A
N
Scan resume condition
Select the scan resume condition from ON and OFF.
• on : Scan resumes.
• oFF : Scan cancels when a signal is received.
S
C
A
N
S
C
A
N
Number of memo pad channels
Select the number of memo pad channels available
from 5 and 10.
• 5 : 5 memo pad channels can be used.
• 10 : 10 memo pad channels can be used.
■ Compressor set mode
Compression level
Adjust the compression level for the speech com-
pressor to the desired level within 0–100% range.
COMPMP
Scanning speed
Select the scanning speed from high and low.
S
C
A
N
S
C
A
N
Scan type HI Lo
Memory scan (Mode select)
20 CH/sec. 10 CH/sec.
Prog. scan (TS<1 kHz) 50 steps/sec. 25 steps/sec.
Prog. scan (TS>1 kHz) 20 steps/sec. 10 steps/sec.
Tone scan 20 steps/sec. 10 steps/sec.
