43
6
MEMORY OPERATION
■ Memory clearing
Any unnecessary memory channels can be cleared.
The cleared memory channels become blank chan-
nels.

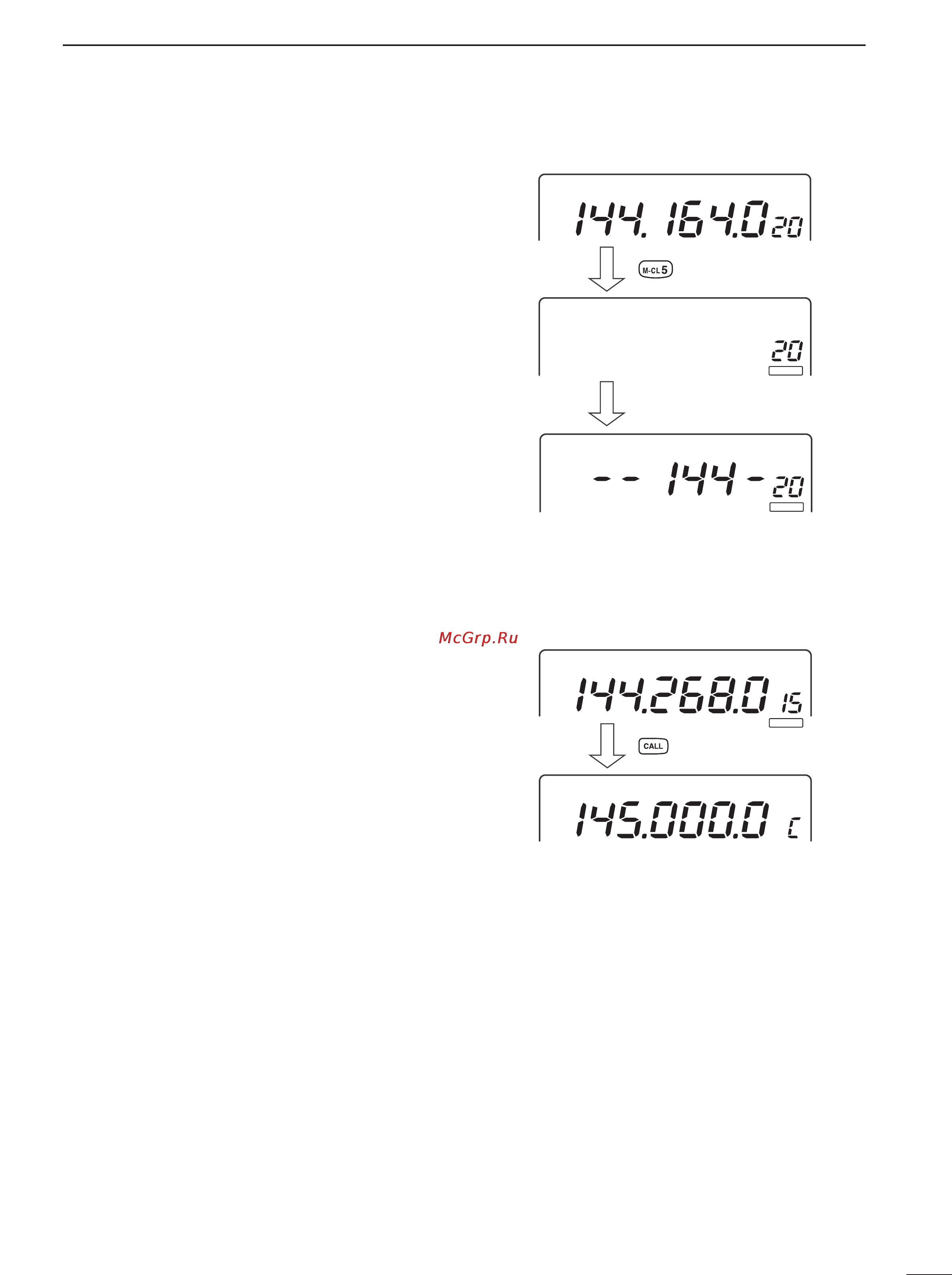

q Push [V/M 1] to select memory mode.
w Push [DN ▼] or [▲ UP] to select the desired mem-
ory channel to be cleared.
e Push [M-CL 5] for 1 sec. to clear the contents.
•The programmed frequency and operating mode disap-
pear.
•“BLANK” indicator appears.
r To clear other memory channels, repeat steps w
and e.
MEMO
USBUSB
MEMO
BL
ANAN
K
Operating band appears
after 2 sec.
MEMO
BL
ANAN
K
Beep tone sounds.
■ Call channel
The call channel is a one-touch accessible channel for
recalling your most-often-used frequency. The IC-910H
has one call channel for each frequency band.
◊ Call up a call channel
q Push [M/S•BAND] or [SUB] to select the desired
frequency band.
w Push [CALL] to select the call channel.
e Push [CALL] or [V/M 1] to return to previous display.
◊ Call channel programming
q Push [M/S•BAND] or [SUB] to select the desired
frequency band.
w Push [CALL] to select the call channel.
e Enter the desired frequency using the keypad.
e.g.; When programming 145.8200 MHz.
Push [F-INP ENT] ⇒ [1] ⇒ [4] ⇒ [5] ⇒ [.] ⇒ [8] ⇒
[2] ⇒ [F-INP ENT]
• Select operating mode if required.
r Push [MW 4] for 1 sec. to program the call channel.
◊ Transferring call channel contents
q Push [M/S•BAND] or [SUB] to select the desired
frequency band.
w Push [CALL] to select the call channel.
e Push [M≈V 6] for 1 sec. to transfer the call channel
contents.
F
M
USBUSB
VFO A
BL
ANAN
K
