RECEIVE AND TRANSMIT
◊ Using the one-touch repeater function
(non-European versions)
By using the pre-programmed offset frequency, shift di-
rection and tone frequency, quick and simple repeater
operation can be made.
The default values for offset frequency and direction
are as follows:
144 MHz band : –0.600 MHz
430(440) MHz band : –5.000 MHz
1200 MHz band : –20.000 MHz (optional)
Tone frequency : 88.5 Hz

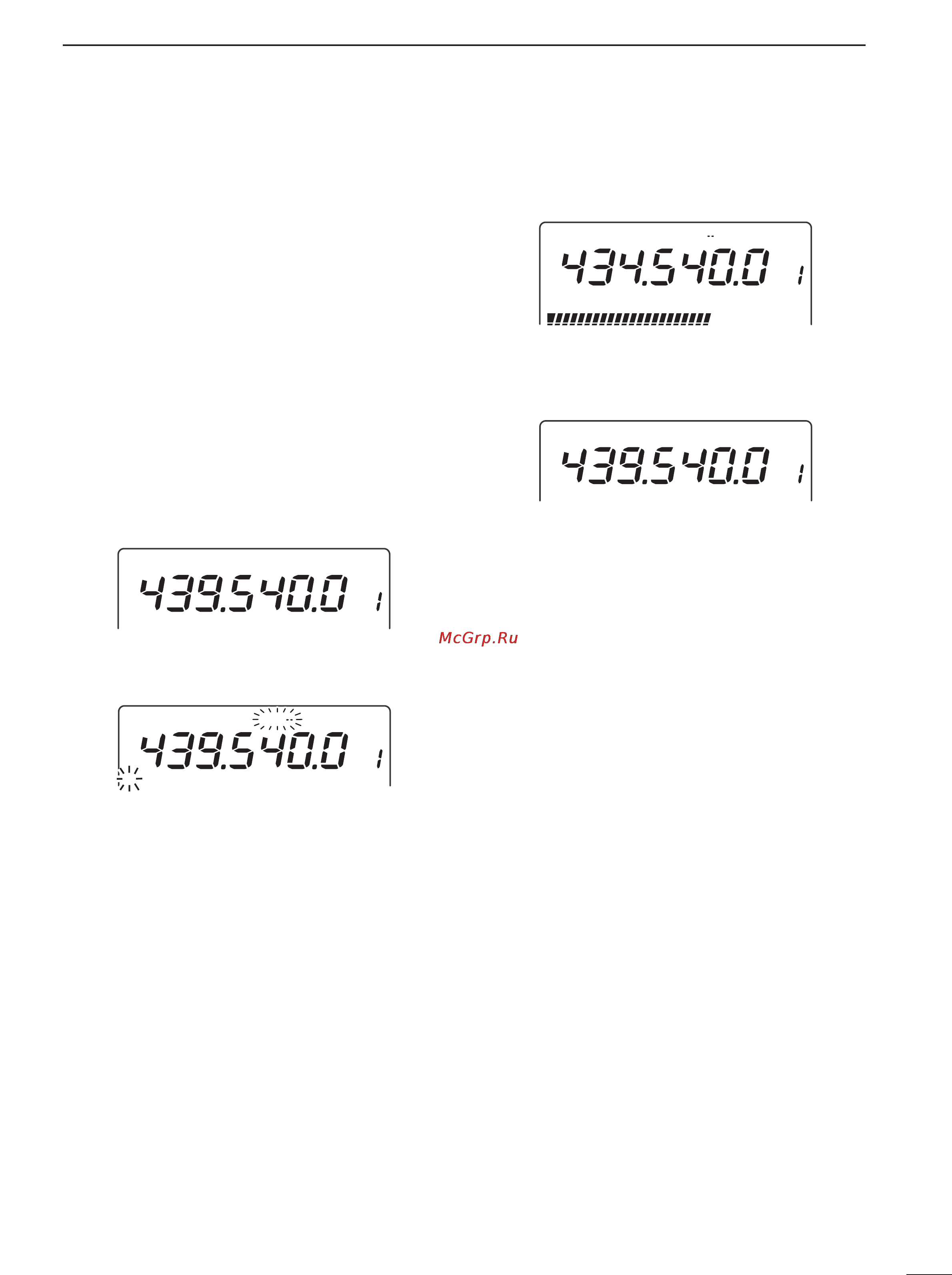

q Push [M/S•BAND] to select the desired frequency
band.
w Push [FM] to select FM mode.
e Rotate the tuning dial to input the desired repeater
frequency.
•Direct frequency input using the keypad can be used for
frequency setting.
r Push [FM] to select the repeater operation mode.
•“DUP–” and “T” indicators appear.
t Push [PTT] to access the repeater.
y Release [PTT] to receive a signal from the repeater.
u Push [FM] to cancel the duplex operation mode.
•“DUP–” and “T” indicators disappear.
F
M
VFO A
F
M
DUP
VFO A
T
60dB
S
1
3 5
7
9
20
40
Shifts 5 MHz when transmitted.
F
M
DUP
VFO A
T
F
M
VFO A
◊ Setting tone frequency
(non-European versions)
q Push [M/S•BAND] to select the desired frequency
band.
w Push [SET] then [FM] to enter the FM set mode.
e Push [DN ▼] or [▲ UP] to select the tone frequency
item.
•“ton,” selected band (144/430(440)/1200) and “T” indi-
cator appear.
r Rotate the tuning dial to set the desired tone fre-
quency.
t Push [FM] to exit from the FM set mode.
◊ Setting offset frequency
q Push [M/S•BAND] or [SUB] to select the desired
frequency band.
w Push [SET] then [FM] to enter the FM set mode.
e Push [DN▼] or [▲ UP] to select the offset frequency
item.
•“duP” and selected band (144/430(440)/1200) appear.
r Rotate the tuning dial to set the desired tone fre-
quency.
t Push [FM] to exit from the FM set mode.
