47
7
SCANS

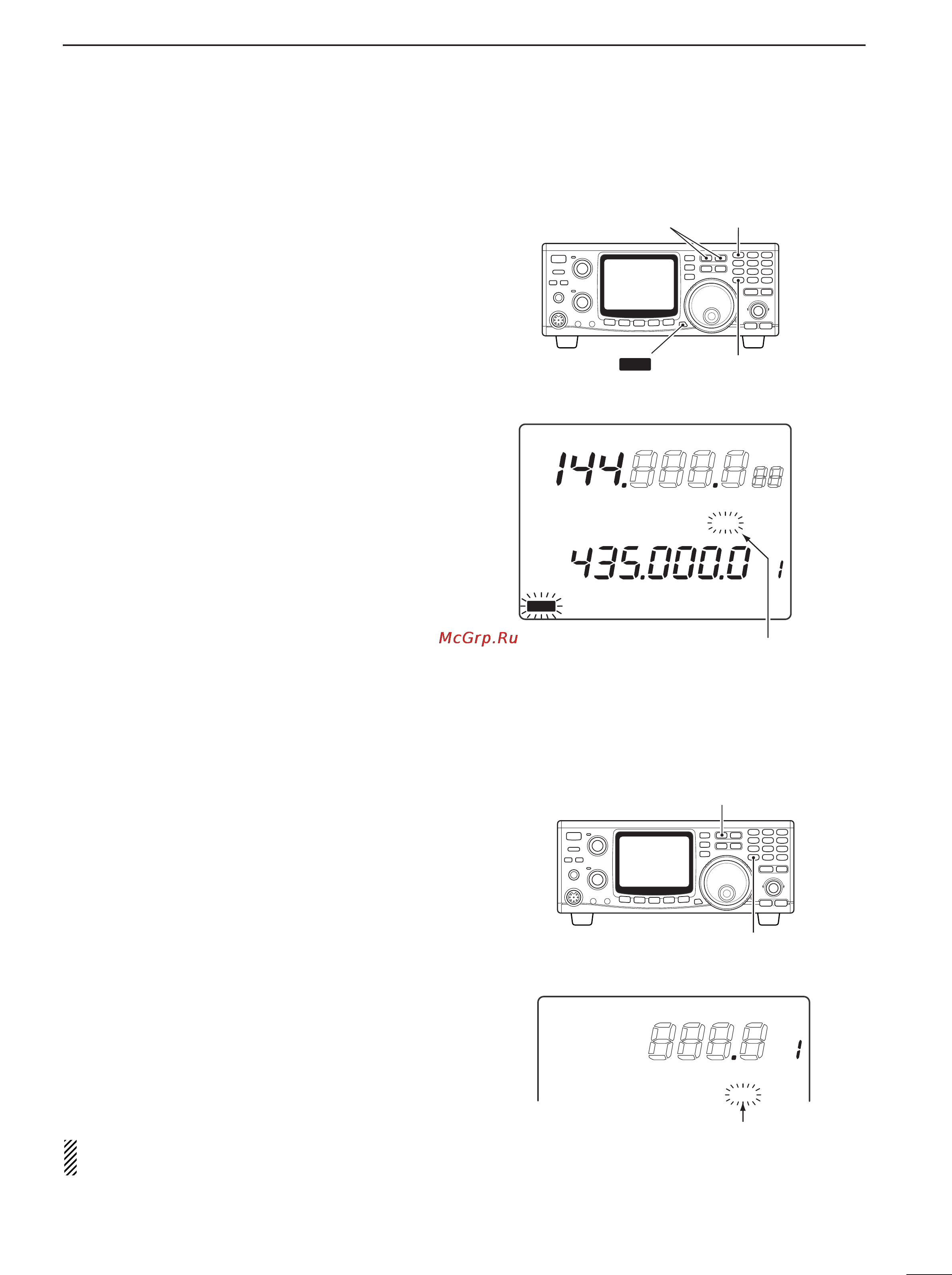

■ Mode select scan
Scans the memory channels, desired operating mode
is programmed, only.
q Push [M/S•BAND] or [SUB] to select the desired
frequency band to be scanned.
w Push [V/M 1] to select memory mode.
e Push [SSB/CW] or [FM] to select the desired oper-
ating mode to be scanned.
• The operating mode can also be changed during scan.
r Push [SPCH•LOCK] for 1 sec.
•“LOCK” indicator appears.
t Push [SCAN .] to start the mode select scan.
•“SCAN” indicator flashes.
y Push [SCAN .] to cancel the scan.
MEMO
USBUSB
VFVF
O
A
F
M
L
OCK
S 1 3
5
7
9 2020
4040
60dB60dB
60dB
S
C
A
N
S
1
3 5
7
9
20
40
Flashes while scanning
wSelect
mode.
qSelect memory
mode.
e appears. rStart.
tStop.
LOCK
■ Tone scan
The transceiver can detect a subaudible tone fre-
quency in a received signal. By monitoring a signal that
is being transmitted on a repeater input frequency, you
can determine the tone frequency required to access
the repeater.
q Set the desired frequency or memory channel to be
checked for a tone frequency.
w Push [FM] to select FM mode.
e Push [TONE] or [CALL•T-SQL] for 1 sec. to activate
the subaudible tone.
•“T” or “T-SQL” indicator appears.
r Push [SCAN .] for 1 sec. to start the tone scan.
•“SCAN” indicator flashes while scanning.
•Scan stops when a subaudible tone is detected.
•Scan becomes slower or quicker, respectively when the
noise squelch is open or closed.
t Push [SCAN .] for 1 sec. to cancel the scan.
NOTE: The tone scan automatically changes tone
frequency setting to the detected tone frequency.
F
M
VFO A
60dB
S
C
A
N
S
1
3 5
7
9
20
40
Flashes while scanning
SQ
L
T
-
qSelect FM mode.
wStart.
eStop.
