60
10
SET MODE

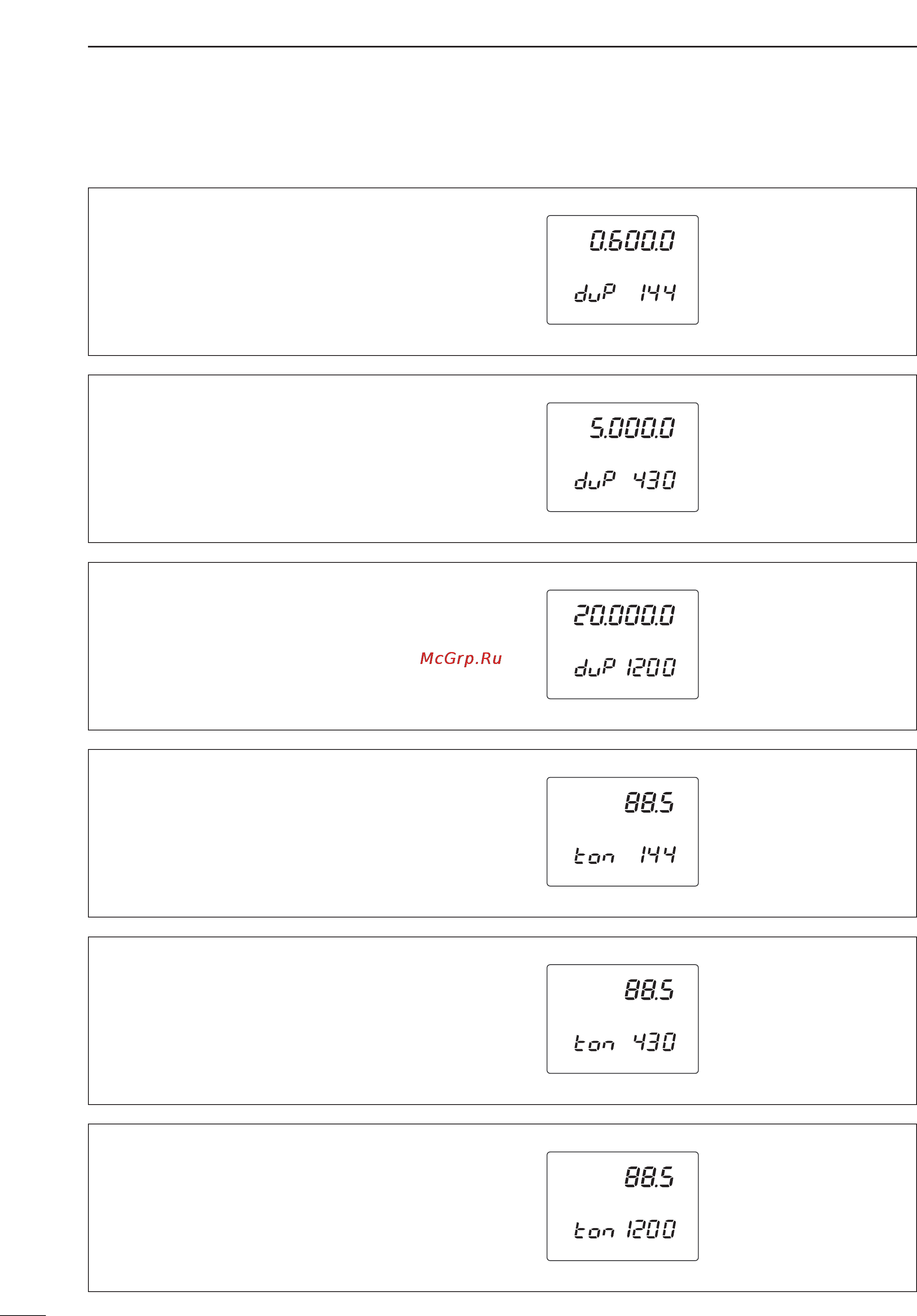

■ FM set mode
Offset frequency for 144 MHz
Set the offset frequency for duplex (repeater) opera-
tion within 0–10.00000 MHz range.
This item is displayed when the 144 MHz band is ac-
cessed, including the SUB band access capability.
• Default value: 0.6000
F
M
Offset frequency for 430(440) MHz
Set the offset frequency for duplex (repeater) opera-
tion within 0–10.00000 MHz range.
This item is displayed when the 430(440) MHz band
is accessed, including the SUB band access capabil-
ity.
• Default value: 5.0000
F
M
Offset frequency for 1200 MHz
Set the offset frequency for duplex (repeater) opera-
tion within 0–100.00000 MHz range.
This item is displayed when the 1200 MHz band is
accessed, including the SUB band access capability.
• Default value: 20.0000
F
M
Tone encoder frequency for 144 MHz
(non-European versions)
Select tone encoder frequency for accessing a re-
peater, etc. from one of 50 available tone frequencies.
This item is displayed when the 144 MHz band is ac-
cessed, including the SUB band access capability.
• Default value: 88.5
F
M
T
Tone encoder frequency for 430(440) MHz
(non-European versions)
Select tone encoder frequency for accessing a re-
peater, etc. from one of 50 available tone frequencies.
This item is displayed when the 430(440) MHz band is
accessed, including the SUB band access capability.
• Default value: 88.5
F
M
T
Tone encoder frequency for 1200 MHz
(non-European versions)
Select tone encoder frequency for accessing a re-
peater, etc. from one of 50 available tone frequencies.
This item is displayed when the 1200 MHz band is
accessed, including the SUB band access capability.
• Default value: 88.5
F
M
T
