51
8
SATELLITE OPERATION
■ Satellite operation
When your own signal can be received with a loop
test, satellite communication can be performed.
q Rotate the tuning dial to re-tune the uplink fre-
quency after pushing [SWP 0 Í], when shifting a
frequency with the Doppler effect.
•The downlink frequency readout (MAIN band) disap-
pears.
w Rotate the tuning dial to re-tune the downlink fre-
quency after pushing [SCAN . Â], when the oper-
ating station’s signal frequency is shifted.
•RIT function can also be used for downlink frequency
tuning within ±1 kHz range.
■ Satellite memory
The IC-910H has 10 satellite memory channels to
memorize both uplink and downlink frequencies and
operating modes, etc.
◊ Satellite memory selection
q Push [SATELLITE] to enter the satellite mode.
w Push [V/M 1] to select satellite memory mode.
•“MEMO” indicator and memory channel number are dis-
played beside the uplink frequency (SUB band) indica-
tion.
• Push [V/M 1] again to select satellite VFO.
e Push [DN ▼] or [▲ UP] to select the desired satel-
lite mode memory channel.
• The channels 00–09 are selectable.
•By pushing and holding either switch, the satellite mem-
ory channel changes continuously.
◊ Satellite memory programming
q Select the desired satellite memory channel.
• Push [SATELLITE] to enter the satellite mode.
• Push [V/M 1] to select satellite VFO mode.
•Push [DN ▼] or [▲ UP] to select the desired satellite
mode memory channel.
w Set the desired downlink frequency to the MAIN
band and uplink frequency to the SUB band, as well
as operating mode.
•Push [SCAN . Â] for downlink tuning, push [SWP 0 Í]
for uplink frequency tuning.
•Push [SUB] before the operating mode selection when
selecting operating mode for the uplink.
e Push [MW 4] for 1 sec. to program the set contents
to the satellite memory channel.
• 3 beep tones sound.
NOTE: Tracking selection, normal or reverse, is not
programmed in the satellite memory channels.
USBUSB
M
E
MO
L
SB
S
A
T
L
RE
V
S 1 3
5
7
9 2020
4040
60dB60dB
60dB
S
1
3 5
7
9
20
40

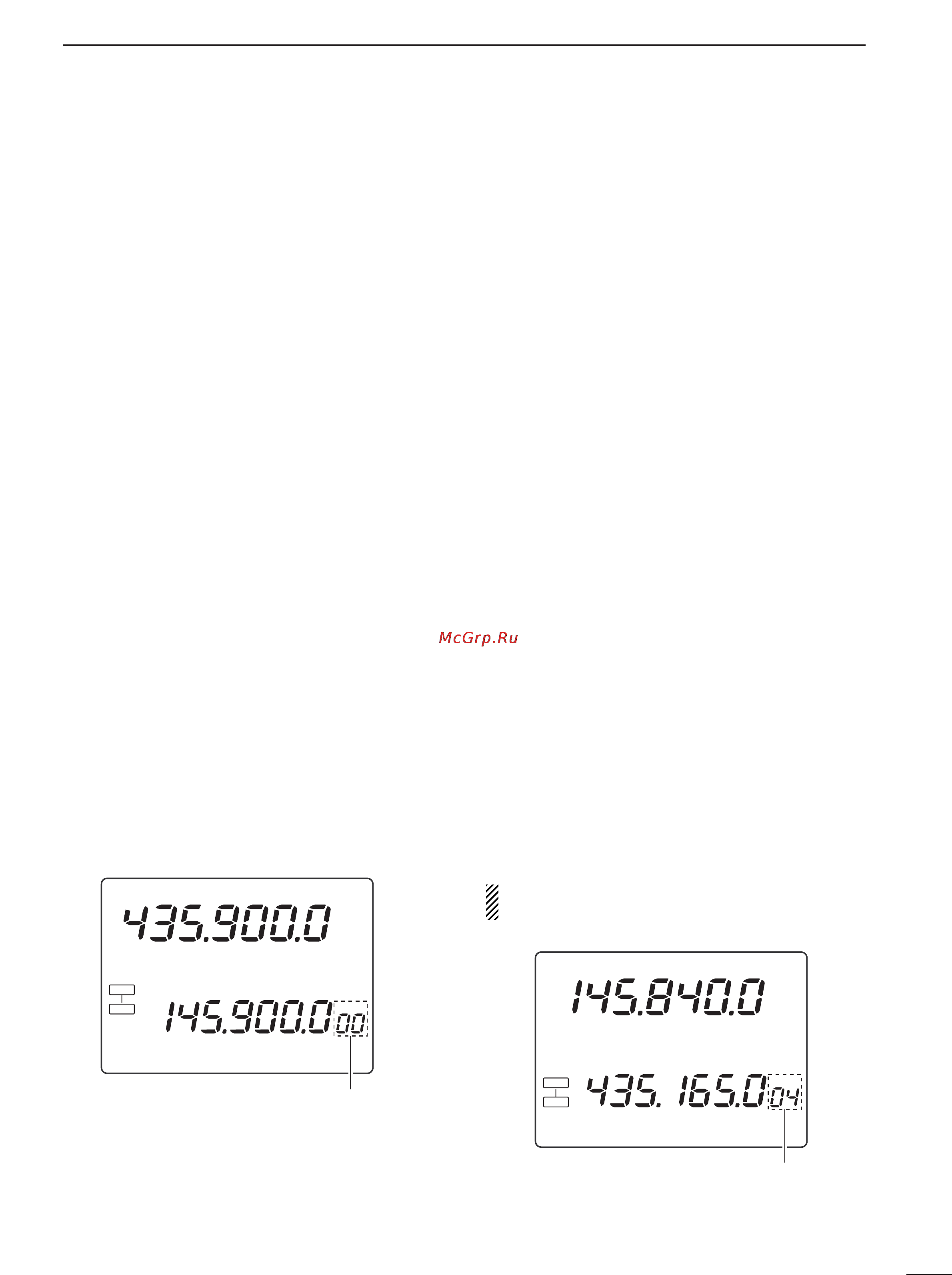

Select the desired
satellite memory
USBUSB
M
E
MO
L
SB
NOR
S
A
T
L
S 1 3
5
7
9 2020
4040
60dB60dB
60dB
S
1
3 5
7
9
20
40
Satellite memory
indication
