Follow the case and cover opening procedures
shown here when you want to install an optional
unit or adjust the internal units, etc.

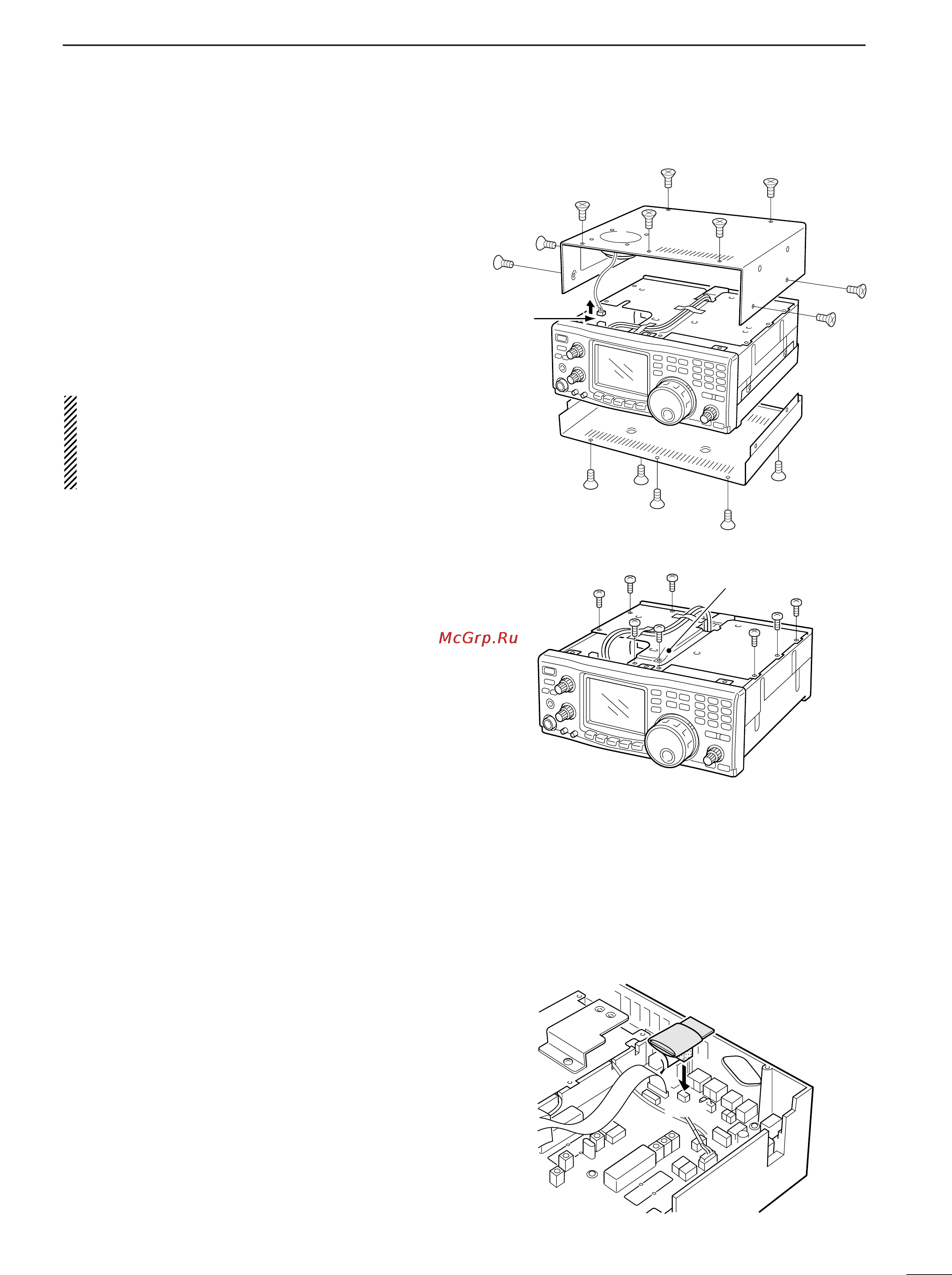

q Remove the 5 screws from the top of the
transceiver and the 4 screws from the sides,
then lift up the top cover.
w Turn the transceiver upside down.
e Remove the 5 screws from the bottom of the
transceiver, then lift up the bottom cover.
CAUTION: DISCONNECT the DC power
cable from the transceiver before performing
any work on the transceiver. Otherwise, there
is a danger of electric shock and/or equipment
damage.
Disconnect the
speaker cable.
71
11
OPTION INSTALLATIONS
■ Opening the transceiver’s case
The UT-102 announces the accessed readout’s fre-
quency, mode, etc. (S-meter level can also be an-
nounced—p. 69) in a clear, electronically-generated
voice, in English (or Japanese).
➥ Push [SPCH] to announce the frequency, etc.
q Remove the bottom cover as shown above.
•Remove the UX-910 if you have installed it. (p. 73)
w Remove the protective paper attached to the bot-
tom of the UT-102 to expose the adhesive strip.
e Plug UT-102 into J1801 on the MAIN unit as shown
in the diagram at right.
r Return the bottom cover to its original position.
t Set the speech level, announcement language and
S-meter announcement in the speech set mode
(p. 69) if desired.
UT-102
MAIN unit
J1801
■ UT-102 VOICE SYNTHESIZER UNIT
◊ Opening the PA unit cover
q Remove the 8 screws and grounding plate from the
PA unit cover.
w Remove fastening tape from the inside power
cable.
e Slide the PA unit cover as shown below.
grounding plate
