English
6

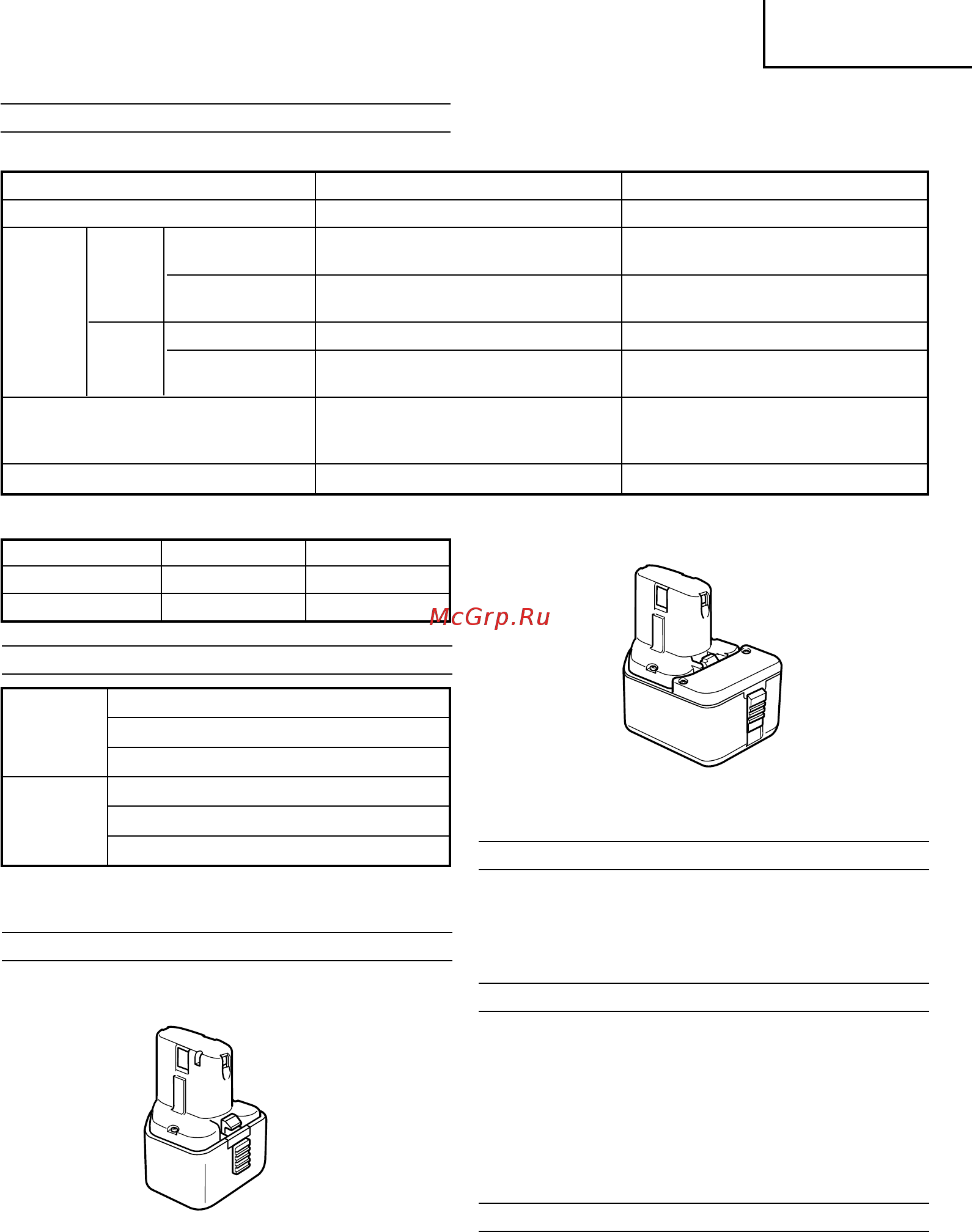

SPECIFICATIONS
POWER TOOL
CHARGER
Model UC9SD/UC12SD UC18YG
Charging voltage 9.6
/
12V 7.2
–
18V
Weight 1.2
/
1.4 kg 0.3 kg
STANDARD ACCESSORIES
Standard accessories are subject to change without
notice.
OPTIONAL ACCESSORIES (sold separately)
1. Battery (EB912S, EB914S, EB9B)
(For DS9DVF3)
Model DS9DVF3 DS12DVF3
No-load speed (Low/High) 0 – 280 / 0 – 840 min
–1
0 – 350 / 0 – 1050 min
–1
Wood
Drilling
(Thickness 18mm)
21 mm 25 mm
Metal Steel: 10 mm, Steel: 12 mm,
(Thickness 1.6mm)
Aluminum: 12 mm Aluminum: 15 mm
Machine screw 6 mm 6 mm
Driving
Wood screw
5.8 mm (diameter) × 45 mm (length) 5.8 mm (diameter) × 63 mm (length)
(Requires a pilot hole) (Requires a pilot hole)
Rechargeable battery
EB912S: Ni-Cd 9.6 V (1.2 Ah 8 cells) EB1212S: Ni-Cd 12 V (1.2 Ah 10 cells)
EB914S: Ni-Cd 9.6 V (1.4 Ah 8 cells) EB1214S: Ni-Cd 12 V (1.4 Ah 10 cells)
EB9B: Ni-Cd 9.6 V (2.0 Ah 8 cells) EB1220BL: Ni-Cd 12 V (2.0 Ah 10 cells)
Weight 1.4 kg 1.5 kg
Capacity
2. Battery (EB1212S, EB1214S, EB1220BL)
(For DS12DVF3)
Optional accessories are subject to change without
notice.
APPLICATIONS
䡬 Driving and removing of machine screws, wood
screws, tapping screws, etc.
䡬 Drilling of various metals.
䡬 Drilling of various woods.
BATTERY REMOVAL/INSTALLATION
1. Battery removal
Hold the handle tightly and push the battery latch
to remove the battery (see Figs. 1 and 2).
CAUTION
Never short-circuit the battery.
2. Battery installation
Insert the battery while observing its polarities (see
Fig. 2).
CHARGING
〈〈
〈〈
〈UC9SD/UC12SD
〉〉
〉〉
〉
Before using the driver drill, charge the battery as
follows.
1. Insert the battery into the charger
Insert the battery firmly while observing its direction,
until it contacts the bottom of the charger (See Fig.
3).
1 Plus driver bit (No. 2 × 65L) ...... 1
DS9DVF3 2 Charger (UC9SD or UC18YG) ....... 1
3 Plastic case ....................................... 1
1 Plus driver bit (No. 2 × 65L) ...... 1
DS12DVF3 2 Charger (UC12SD or UC18YG) ..... 1
3 Plastic case ....................................... 1
