Aten CS724KM [43/99] Press pa12b34c56 enter

Chapter 4. Hotkey Operation

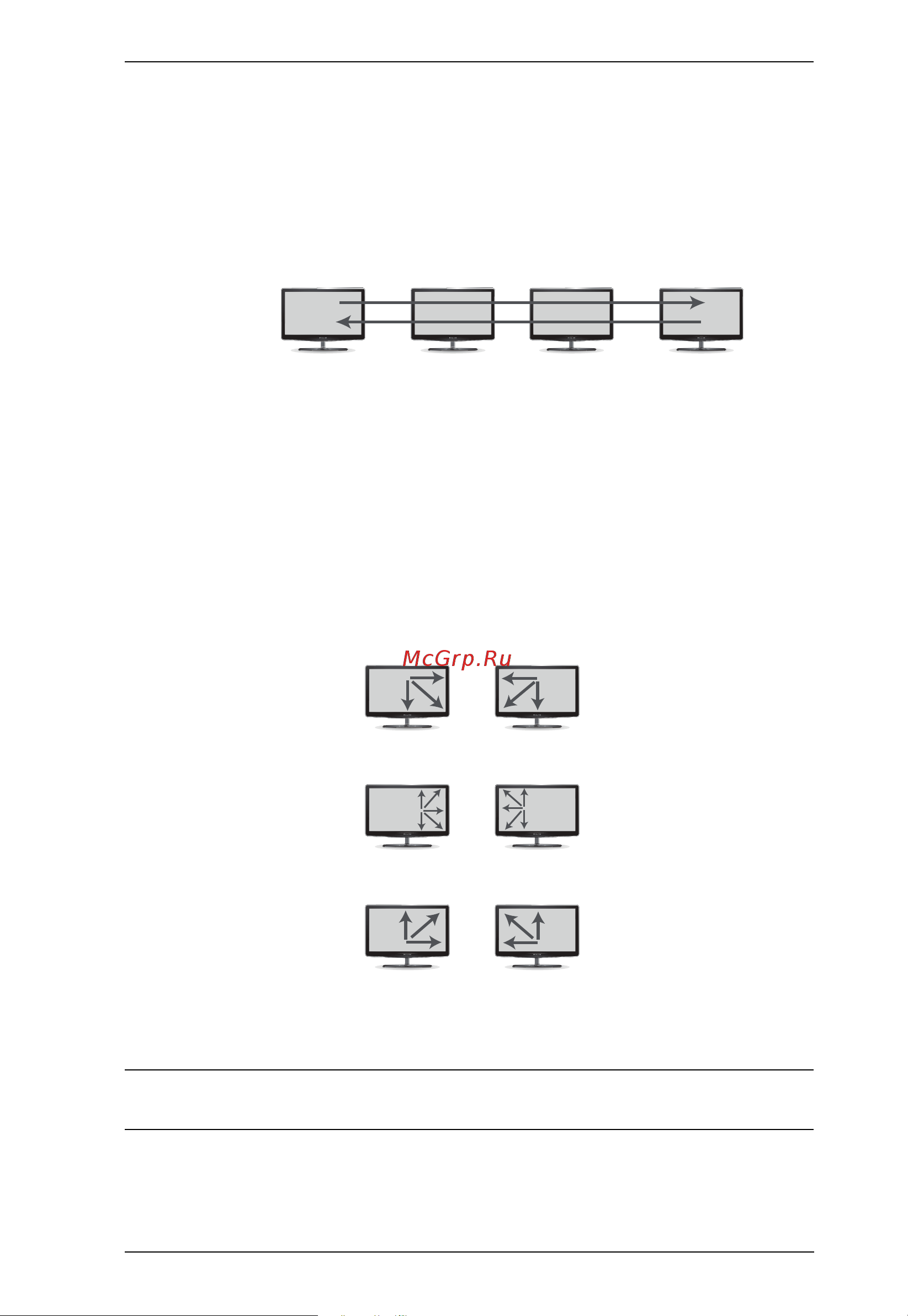

Example 1

To key in a layout, enter "P" followed by "A" and a number for each display.

If you have four displays in one row, type: PA1234 [Enter].

1 x 4 Monitor Layout

Example 2

Additional rows use the next letter (B, C, D) and continue adding displays by

number. With six displays, in three rows, type: PA12B34C56 [Enter].

3 x 2 Monitor Layout

Note: The example above requires two CS724KM units in a daisy-chain, as

any setup with more than 4 computers (see Daisy Chain Installation, page 12).

Press: PA1234 [Enter]

Row

Monitor #

Press: PA12B34C56 [Enter]

Row

Monitor #
