CS724KM User Manual

Adding/Applying a Layout for Extended Desktops

Boundless Switching

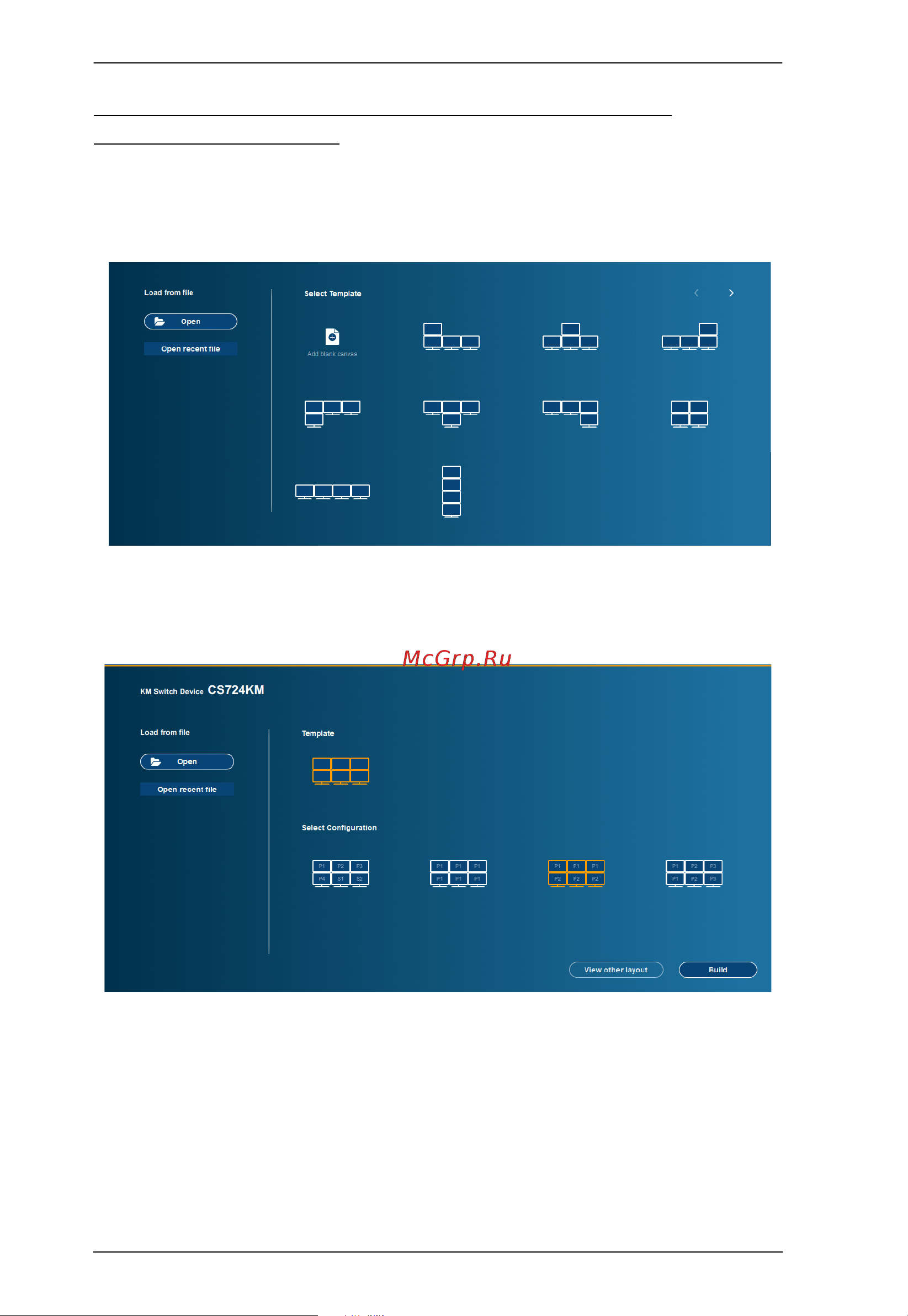

To add and apply a layout, do the following:

1. On a computer connected to the CS724KM, open the Boundless Switching

Configuration Utility.

2. On the Main page, click a Template that matches your physical monitor

setup.

3. Select a configuration and click Build.

4. A reminder appears, click OK.
