Chapter 4. Hotkey Operation
35
Cycle Port Switching
The Cycle Port Switching allows the boundless switching to switch port to the
next available port before the mouse cursor reach to the edge of the display.
Example is provided below with arrows showing where the mouse cursor can
cross display borders to switch computers.
To toggle between cycle port switching enabled and disabled, do the following:
1. Invoke HSM (see page 24).
2. Press [C].
Note: 1. If the Driver AP version is v1.0.062, the Cycle Port Switching
enables automatically when the Driver AP is turned on.
2. If the Driver AP version is v1.0.065 or higher, the Cycle Port
Switching can be enabled/disabled.
• Enable: The Cycle Port Switching enables automatically when
the Driver AP is turned on.
• Disable: The Cycle Port Switching remain disabled when the
Driver AP is turned on.

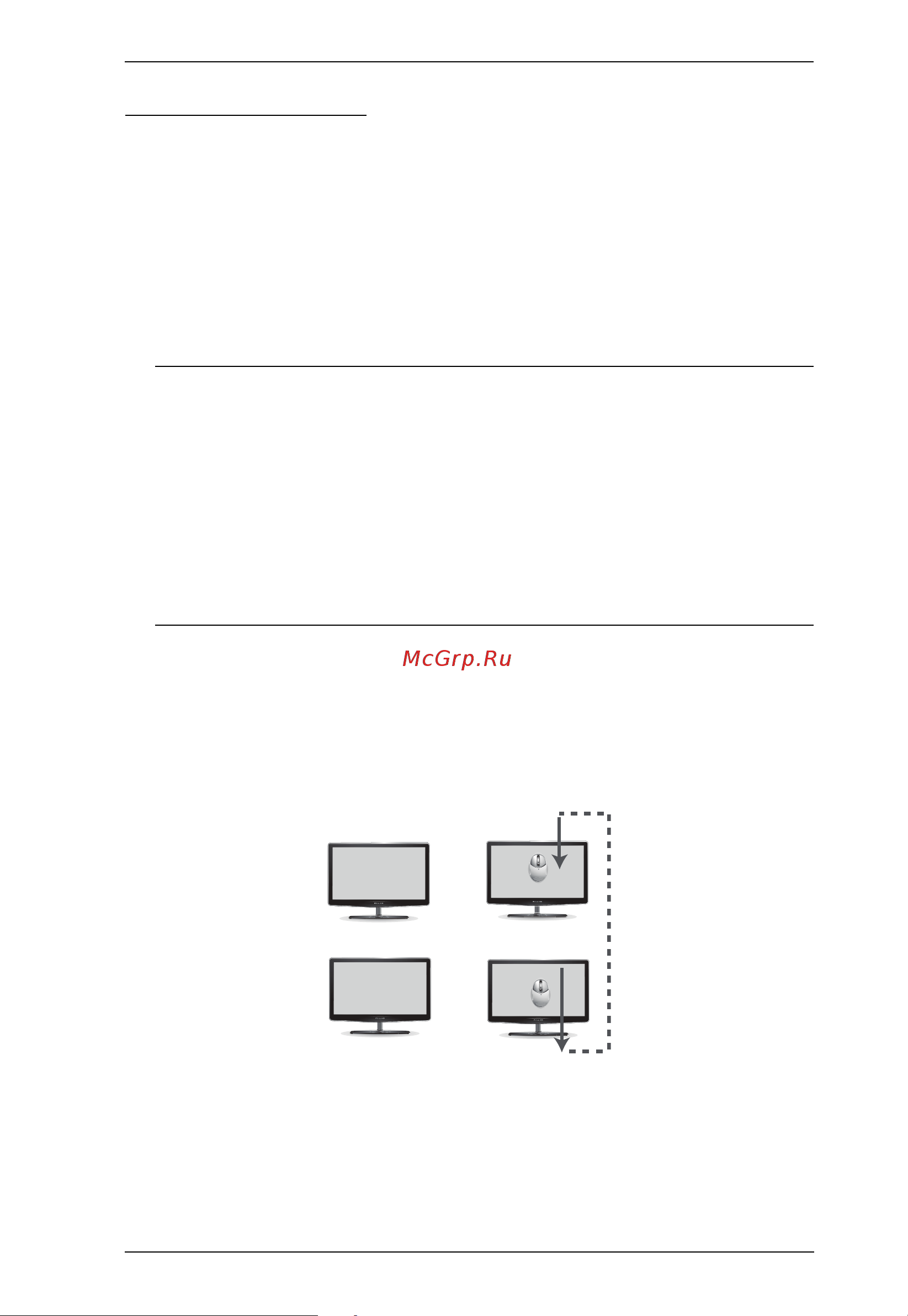

Example 1
Moving the mouse cursor to the bottom of monitor 4 to switch port to monitor
2.
Monitor #
3
2
4
1
