Chapter 1. Introduction
7

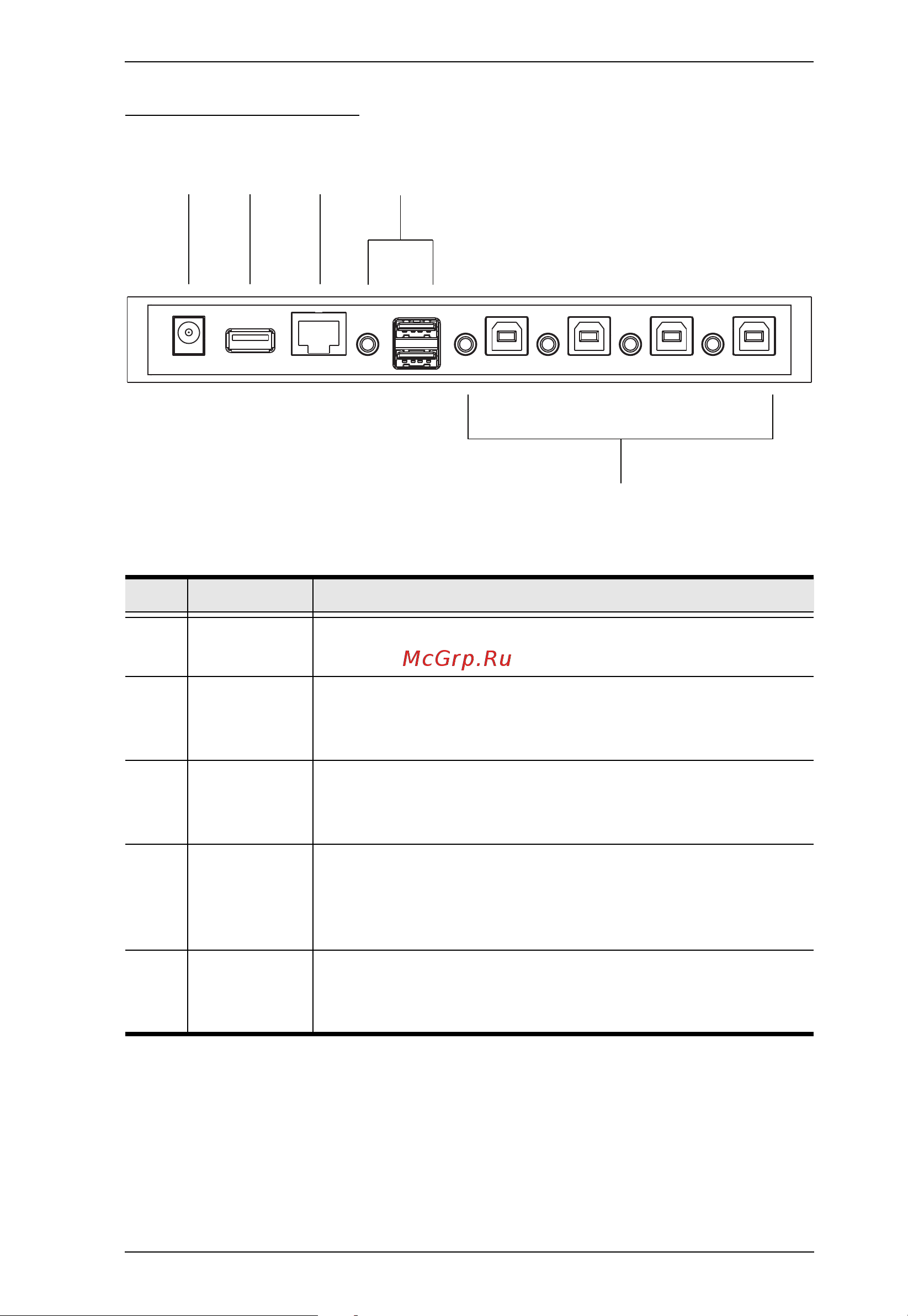

CS724KM Rear View
No. Component Description
1 power jack The power adapter cable (not included in the package) plugs
into this jack.
2 USB
peripheral
port
USB peripherals (printers, scanners, drives etc.) plug into
this port.
3 serial port This RJ-45 port is used to send serial commands (see RS-
232 Commands, page 65) and setup daisy chain installations
(see Daisy Chain Installation, page 12).
4 console
ports
The cables from your USB keyboard, USB mouse, and
speakers plug in here. Each connector is marked with an
appropriate icon to indicate its use.The front panel’s audio
port has priority over that on the rear panel.
5 PC ports The cables that link the switch to your computers plug in
here. Each KM port section is comprised of a speaker jack,
and USB Type-B socket.
1
3
2
4
5
