CS724KM User Manual

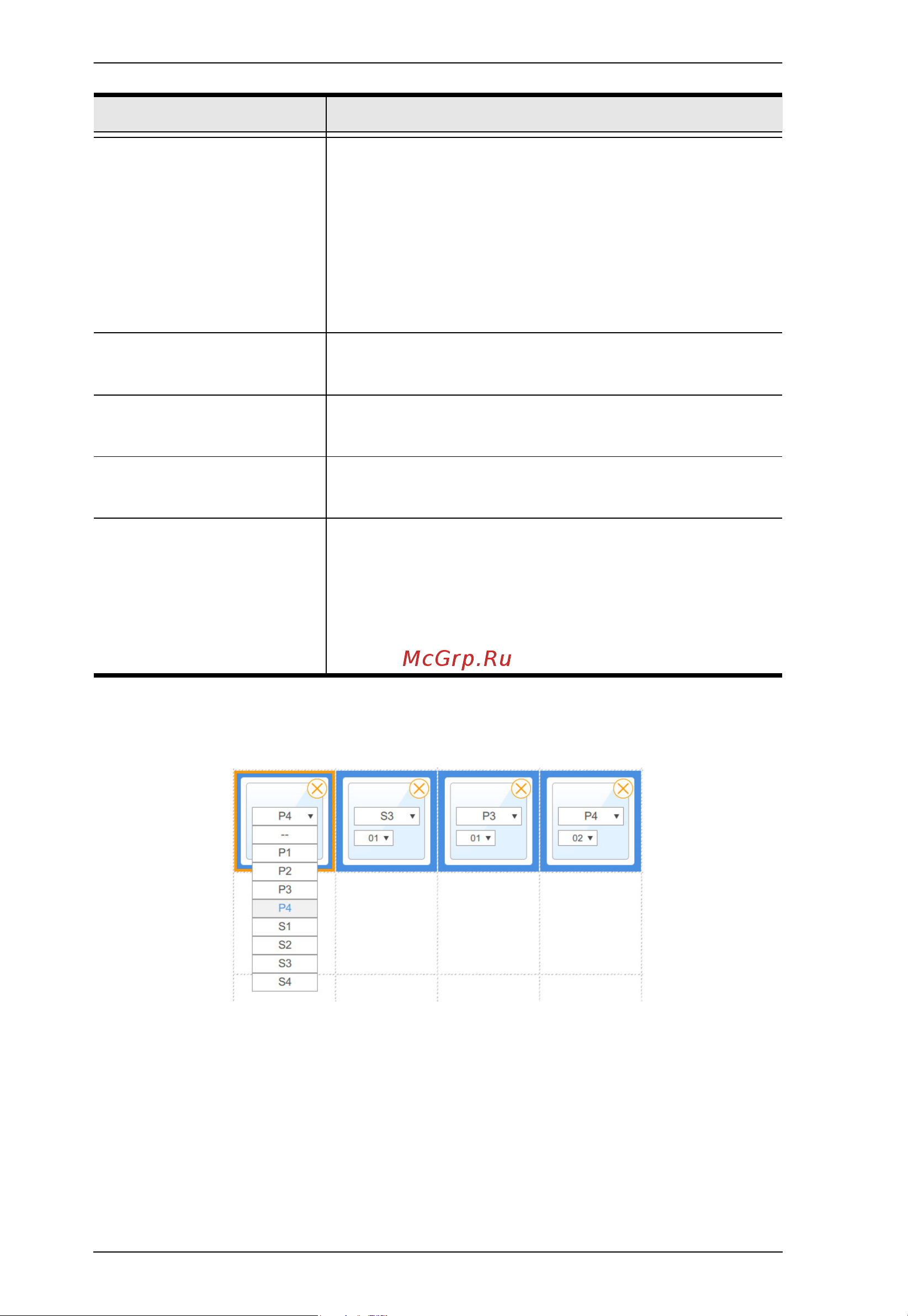

6. After adding Display icons to represent the physical monitor setup, use the

drop-down menu of each Display to set the port.

In a Single Stage Installation (page 9) choose option: P1, P2, P3, P4, or no

port.

In a Daisy Chain Installation (page 12) choose options according to the

Station Switch – Primary: P1, P2, P3, P4; or Secondary: S1, S2, S3, S4.

Resolution Select a Display in the left panel and use the drop-down

menu to configure the screen size. This setting must be

configured correctly for each display so that the

CS724KM knows when to switch computers. You must

reconfigure this setting whenever the resolution of the

display changes.

Note: You can also use the Screen Size hotkey to

configure the displays (see Screen Size, page 29).

Screen Orientation Select a Display in the left panel and click to set the

screen orientation: Portrait or Landscape.

Ratio Use the Ratio slidebar to zoom in and zoom out of the

page.

Save to local Click Save to local to save the current layout

configuration to the local disk drive.

Save to device This uploads the layout configuration and applies it to

the CS724KM.

Click Save to device when the CS724KM is attached to

the computer running the Boundless Switching

Configuration Utility. If no CS724KM is connected, you

will be prompted to connect one.

Item Description
