Chapter 1. Introduction

Components

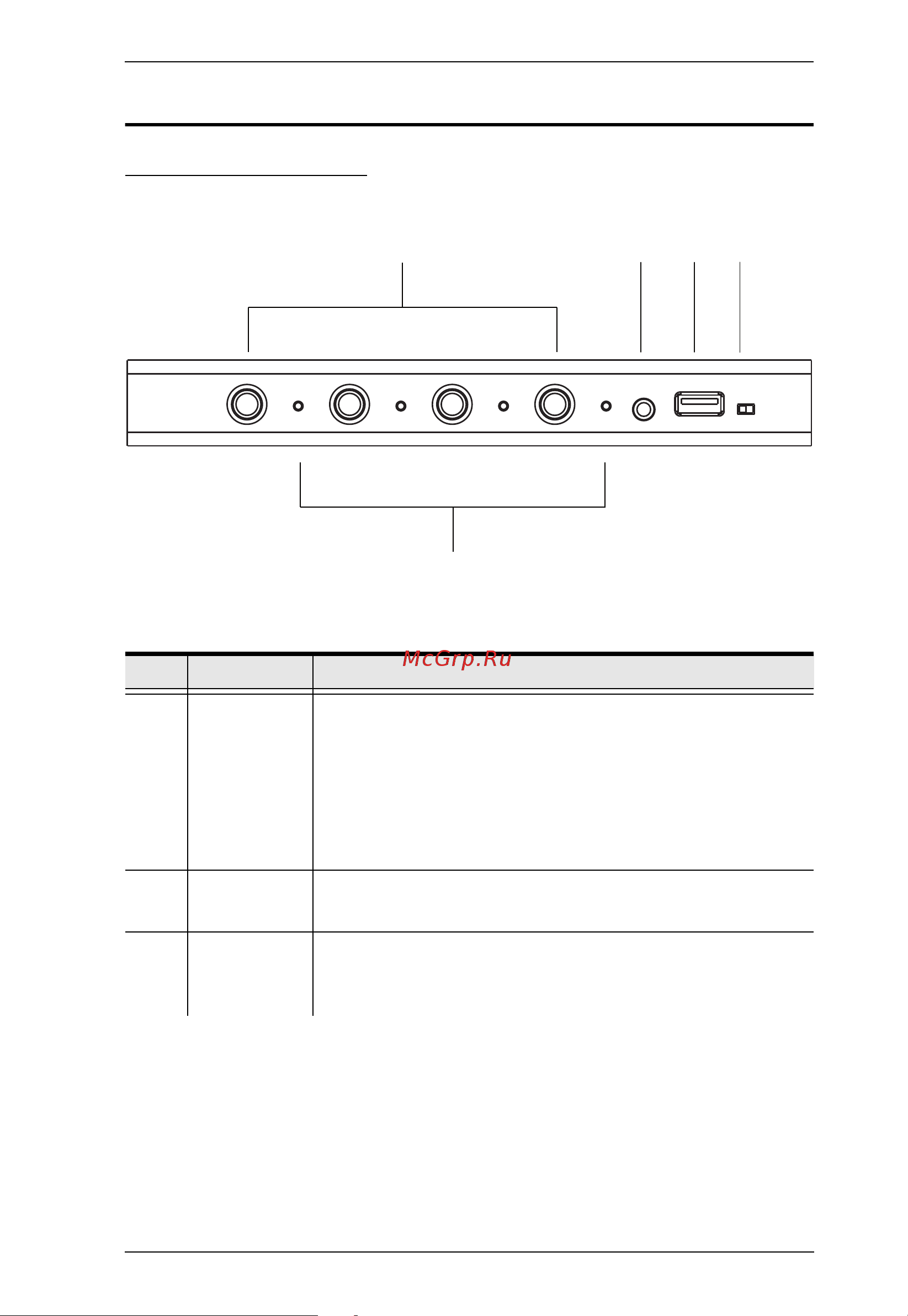

CS724KM Front View

No. Component Description

1 port

selection

pushbuttons

For manual port selection, press a port selection pushbutton

to bring the KM focus to the computer attached to its

corresponding port.

Note: With firmware v1.1.106 or earlier, the port selection

pushbuttons will be disabled when the Driver AP is running.

For full functioning of the pushbuttons, upgrade the firmware

to v1.1.107 or later.

2 audio port The cables from your speakers plug in here. The speakers

plugged in here have priority over those on the rear panel.

3 USB

peripheral

port

USB peripherals (printers, scanners, drives etc.) plug into

this port.
