Chapter 6. Boundless Switching Configuration Utility
43

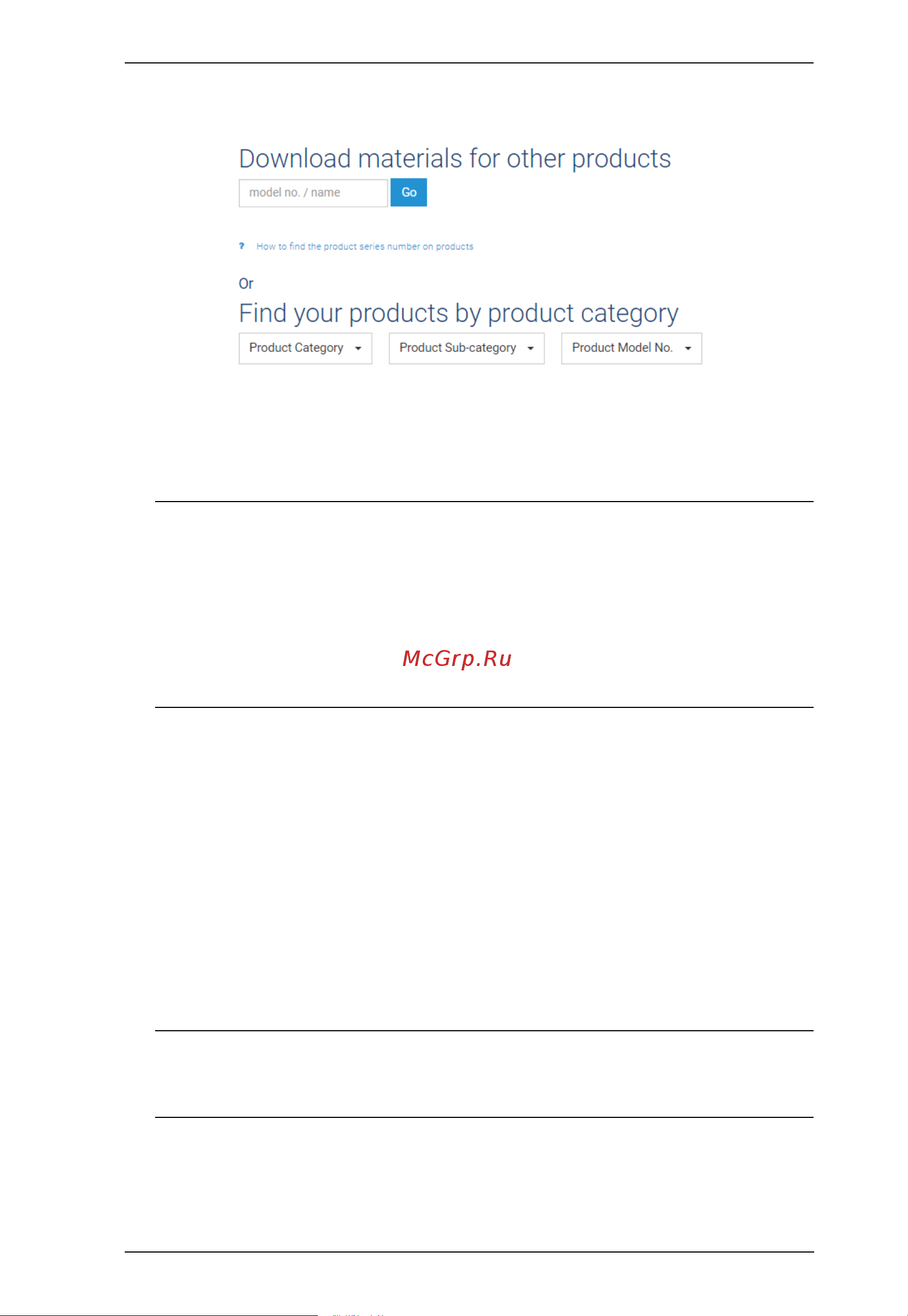

2. Under Download materials for other products, type CS724KM.
3. Click Go.
4. Below Software& Drivers, download the required Boundless Switching
Configuration Utility version.
Note: 1. If you wish to use extended desktops boundless switching, please
download the Boundless Switching Configuration Utility version
v1.0.067 or higher.
2. Boundless Switching Configuration Utility version v1.0.066 and
v1.0.067 are incompatible due to the extended desktops
boundless switching capability, users must reconfigure separately
after the upgrades.
5. Unzip the files, and double-click:
Aten_CS724KM_Boundless_Switching_Configuration_Utility.exe
6. Follow instructions to install the Boundless Switching Configuration
Utility.
7. (Optional) If you are using the extended desktops boundless switching,
continue onto step 8.
8. Below Firmware, download the and install the CS724KM’s firmware
version v1.1.102 or higher. For more information, see The Firmware
Upgrade Utility, page 59.
Note: Hotkey [P] and [L] will be removed for extended desktops
boundless switching with CS724KM’s firmware version v1.1.102
or higher.
