The Multi Pads
Use the [▲/▼] LCD controls to turn the chord match
function for the corresponding pads ON or OFF as re-
quired.
NOTES
• Phrases to be played back using the CHORD MATCH function
must be recorded in the key of C major 7.
• The chord match function is only available for pads 1 through 4 (the
PHRASE pads).
• The default chord match settings are:1 and 2 OFF; 3 and 4 ON.

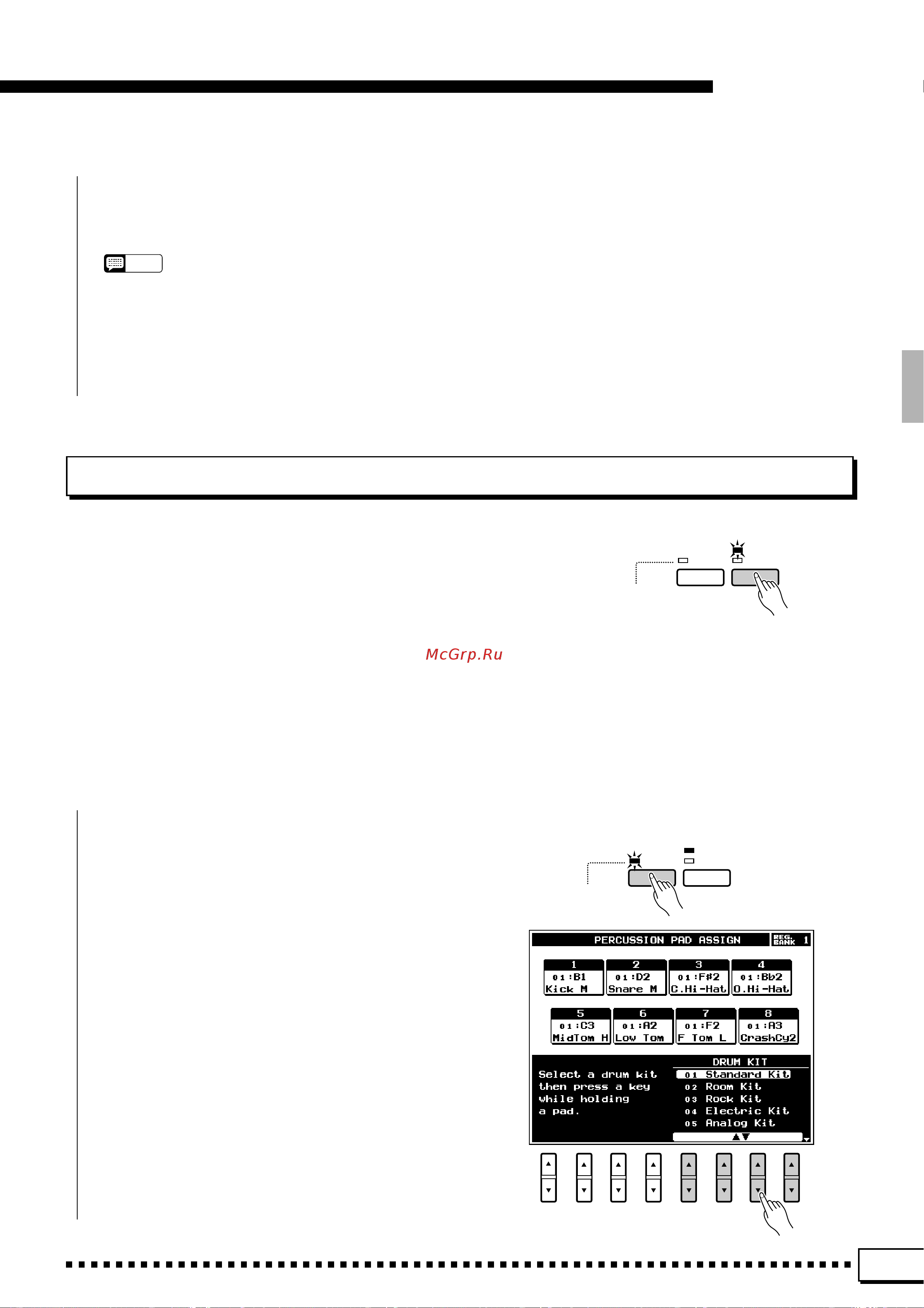

■ Assigning Different Instruments To the PERCUSSION Pads .....................................................
ZPress [REC/STOP]
Press the [REC/STOP] button so that its indicator
lights (make sure the PERCUSSION mode is selected
first). The PERCUSSION PAD ASSIGN display will ap-
pear, listing the percussion instruments currently assigned
to the pads.
XSelect a Drum Voice
Use the DRUM KIT LCD [▲/▼] controls to select the
drum voice which includes the percussion instruments you
want to assign.
REC/STOP
PERCUSSION
PHRASE/CHORD
5. MidTom H
6. Low Tom
7. F Tom L
8. CrashCy2
1. Kick M
2. Snare M
3. C.Hi-Hat
4. O.Hi-Hat
The PERCUSSION Mode
To engage the PERCUSSION mode, press the [PHRASE/CHORD -
PERCUSSION] button so that the PERCUSSION indicator lights (the
PHRASE/CHORD and PERCUSSION indicators light alternately each
time the button is pressed).
The 8 pads are initially programmed with the following drum and
percussion instruments which can be played via the pads when the PER-
CUSSION mode is selected:
REC/STOP
PERCUSSION
PHRASE/CHORD
