62
Song Playback & Recording

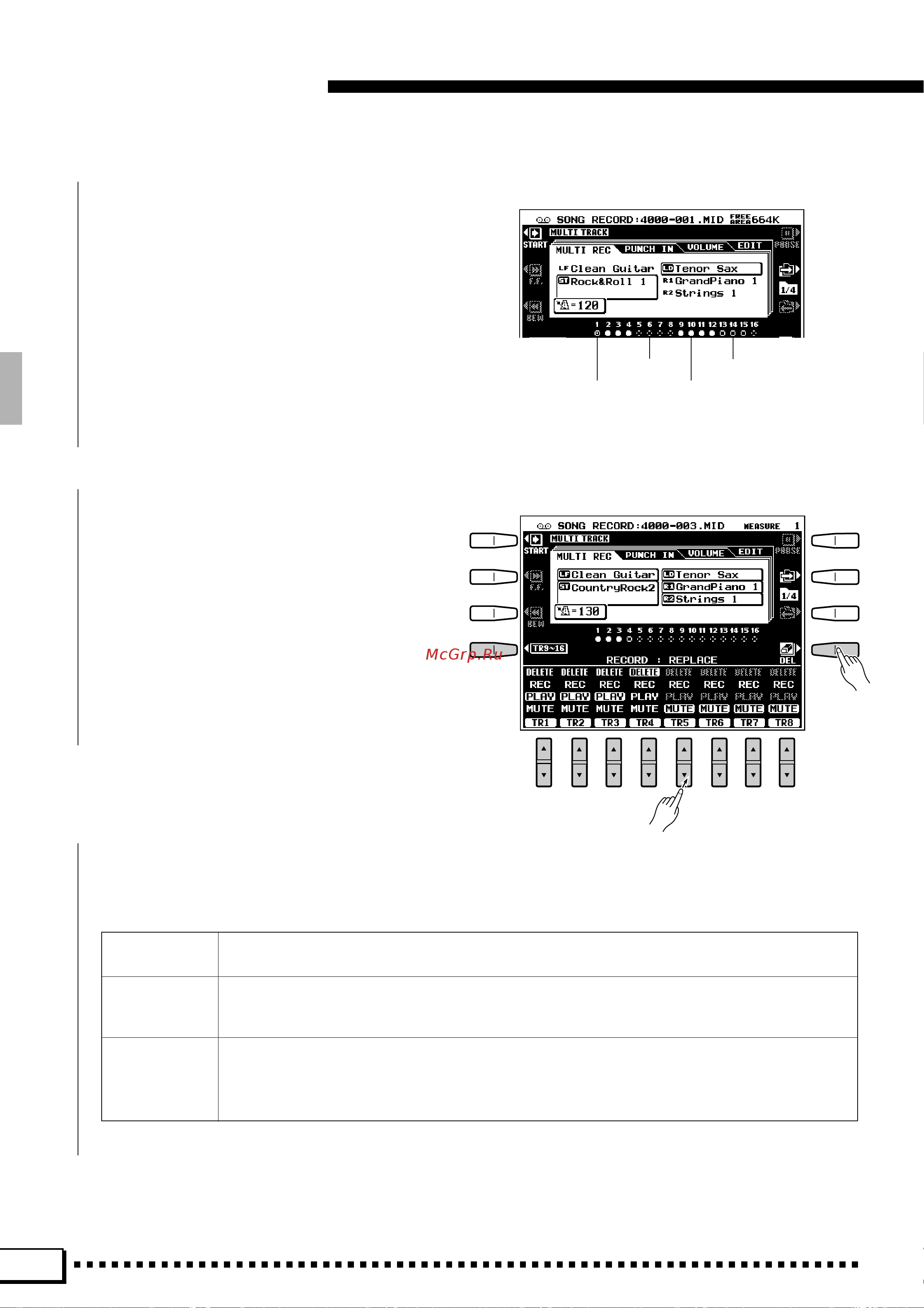

■ THE TRACK INDICATORS...................................................................................................................................................
The track indicators above the track mode selec-
tors indicate which tracks contain data and which
are muted. Tracks which do not contain data are
indicated by a dotted circle outline while tracks
which contain data have a solid outline. Play-ena-
bled tracks are indicated by a filled circle while
tracks that are muted are indicated by an outline
only.
■ TRACK DELETE............................................................................................................................................................................
When the DEL LCD button is pressed DELETE
will appear for tracks which contain data. Select
DELETE via the TR1 through TR16 LCD [▲/▼]
controls while holding the DEL button to delete all
data in the corresponding tracks. The data is actu-
ally deleted when the DEL LCD button is released.
When the DEL LCD button is pressed, tracks set to
REC will automatically be switched to PLAY or
MUTE.
■ RECORDING & EFFECTS...................................................................................................................................................
The reverb, chorus, and DSP effects are recorded
as follows:
REVERB The last reverb type selected during recording takes priority. No effect type is recorded if the [RE-
VERB] button is off during recording.
CHORUS The chorus type is only recorded when the accompaniment or rhythm tracks are recorded. The
chorus type is recorded even if the [CHORUS] button is off during recording. The chorus type is
selected automatically according to the selected style.
DSP EFFECT If the [DSP EFFECT] button is on during recording, the current DSP effect will be recorded only for
the tracks actually being recorded. If the [DSP EFFECT] button is off during recording or only the
accompaniment tracks are set to the REC mode, no change occurs. If the [DSP EFFECT] button is
turned on during manual track recording, however, only tracks set to the REC mode are effected.
No data Muted
Record-enabled Play-enabled
