Yamaha PSR-4000 [98/165] Disk operations
![Yamaha PSR-4000 [98/165] Disk operations](/views2/2009444/page98/bg62.png)
94

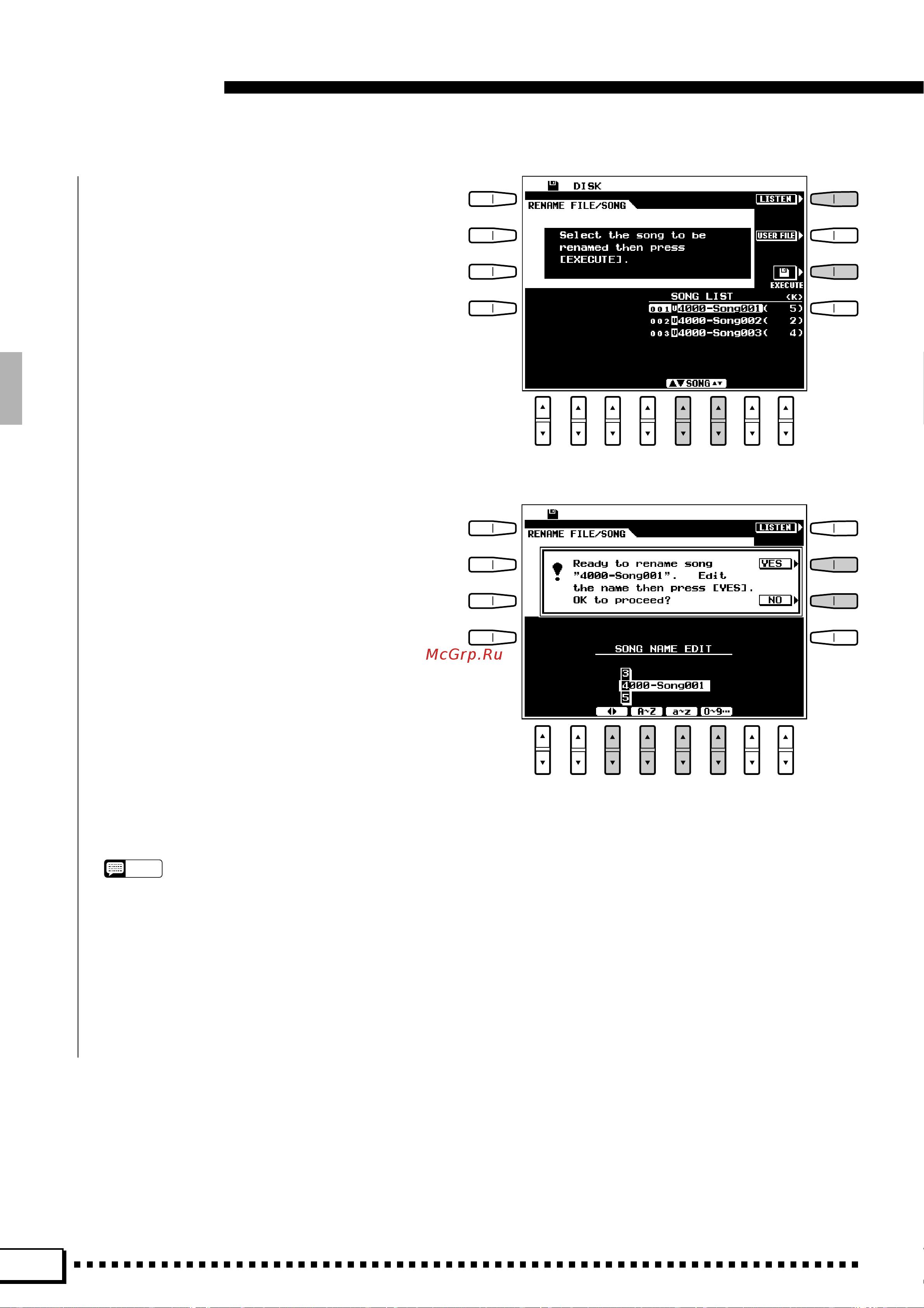

The LISTEN LCD button which appears when
the SONG LIST is selected can be used to listen to
the currently selected song — press LISTEN again
to stop playback when done.
When the user or song file to be renamed has
been selected, press the EXECUTE LCD button.
The following display will appear.
Disk Operations
Song file names can be up to 12 characters long
and user file names can be up to 8 characters long.
Use the < > LCD [▲/▼] control to move the name
cursor to the various character positions, then use
the A~Z or 0~9… LCD [▲/▼] control to select the
required character for each position. The A~Z LCD
[▲/▼] control selects capital letters and the 0~9…
LCD [▲/▼] control selects numbers and special
characters. When a song file is selected the “a~z”
LCD [▲/▼] control is also available for lower-case
character entry.
When the file and file name have been specified,
press the YES LCD button to actually begin the
rename operation (or press the NO LCD button to
cancel the operation). “Don’t remove disk” will
appear while the file is being renamed.
NOTES
• User file names which already exist cannot be entered.
