56
Song Playback & Recording

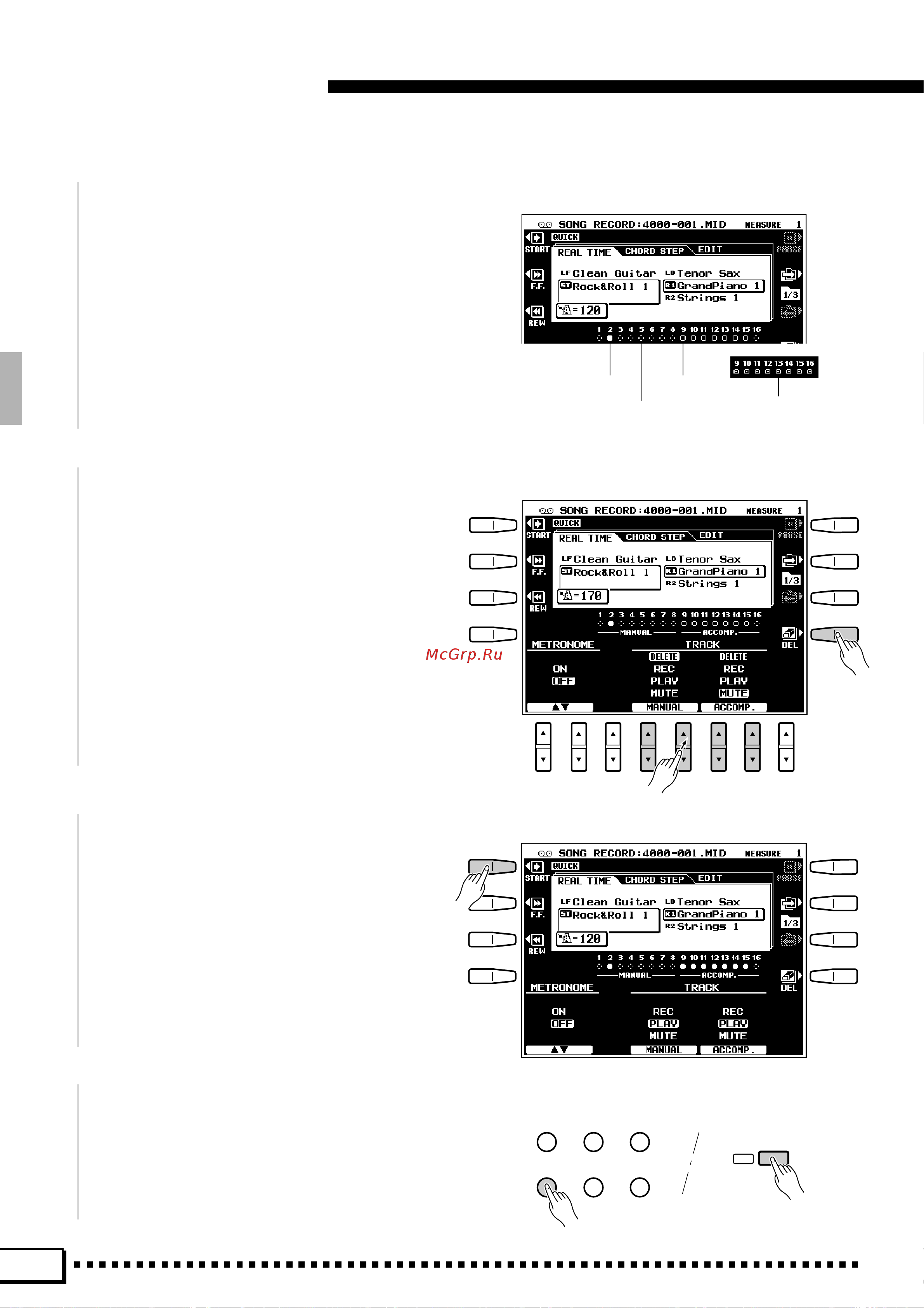

■ THE TRACK INDICATORS...................................................................................................................................................
The track indicators above the track mode selec-
tors indicate which tracks contain data and which
are muted. Tracks which do not contain data are
indicated by a dotted circle outline while tracks
which contain data have a solid outline. Play-ena-
bled tracks are indicated by a filled circle while
tracks that are muted are indicated by an outline
only.
■ TRACK DELETE............................................................................................................................................................................
When the DEL LCD button is pressed DELETE
will appear for tracks which contain data. Select
DELETE via the MANUAL or ACCOMP. track
LCD [▲/▼] controls while holding the DEL button
to delete all data in the corresponding tracks. The
data is actually deleted when the DEL LCD button is
released. When the DEL LCD button is pressed,
tracks set to REC will automatically be switched to
PLAY or MUTE.
■ PLAYBACK .........................................................................................................................................................................................
Recorded tracks are automatically set to the
PLAY mode when recording is stopped, so you can
simply press the START LCD button or the [START]
panel button to hear what you’ve recorded immedi-
ately after recording. All other playback functions
are the same as described on the “Song Playback”
section (page 47).
■ EXITING .................................................................................................................................................................................................
Press the [SONG RECORD] or [EXIT] button
to exit from the QUICK RECORD mode and return
to the normal play mode.
