60
Song Playback & Recording
Multitrack Record
The MULTITRACK record mode allows independent recording and playback on any of 16 tracks, so even complex
songs can be built up track by track.

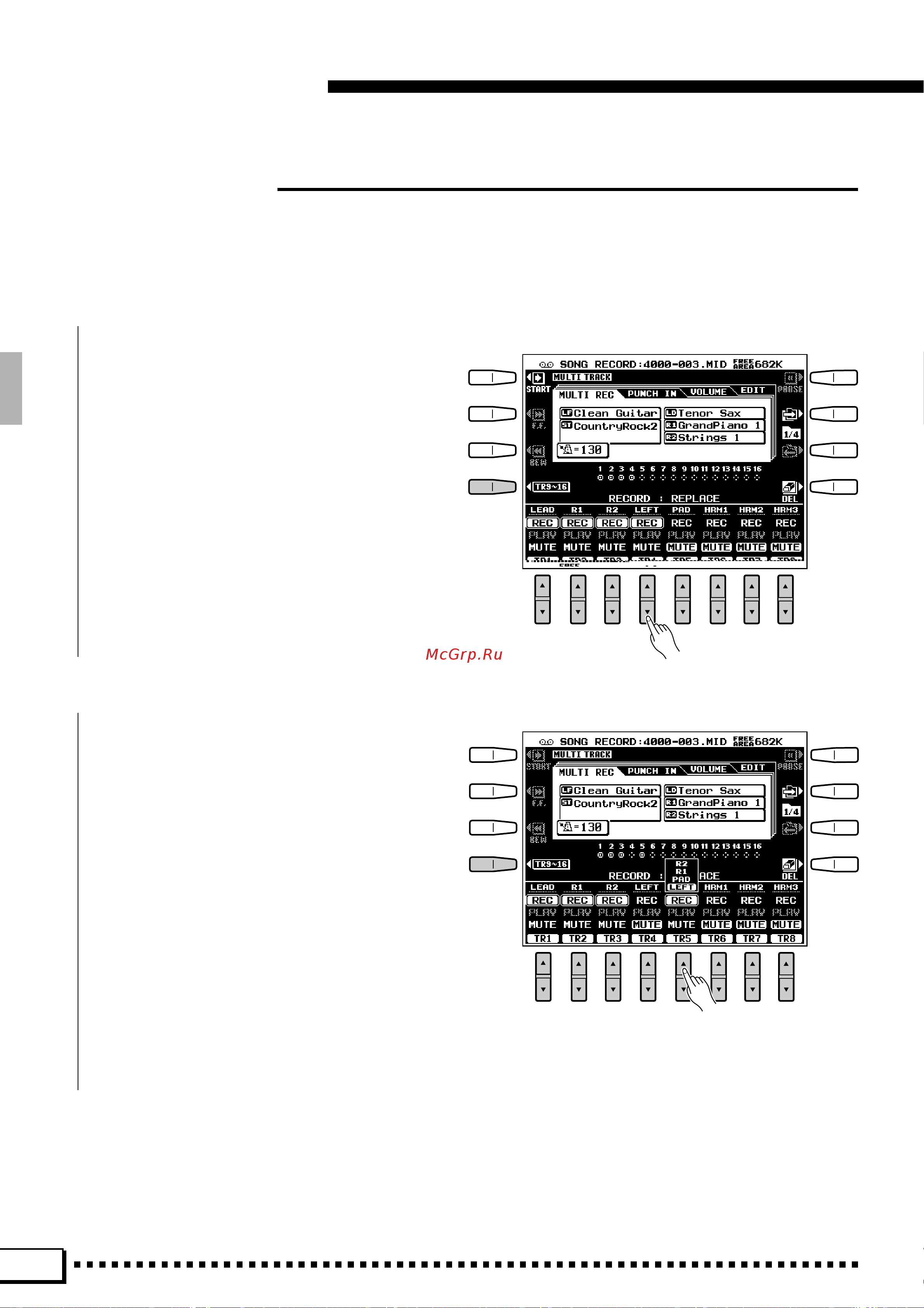

Z Set the Track Modes .................................................................................................................................................................
Use the TR1 through TR16 LCD [▲/▼] con-
trols to the select the REC mode for the track(s) to be
recorded, the PLAY mode for the tracks to be played
while recording, or the MUTE mode for tracks
neither to be played or recorded. The PLAY mode
can only be selected for tracks which contain data.
The TR1-8 or TR9-16 LCD button selects track
groups 1 through 8 and 9 through 16, respectively.
X Change the Track Parts, If Required.......................................................................................................................
The default part for each track is displayed above
the REC setting. The parts can be changed as re-
quired by selecting them via the ▲ end of the
corresponding LCD [▲/▼] controls. When the part
has been changed, move back down to the REC
setting.
