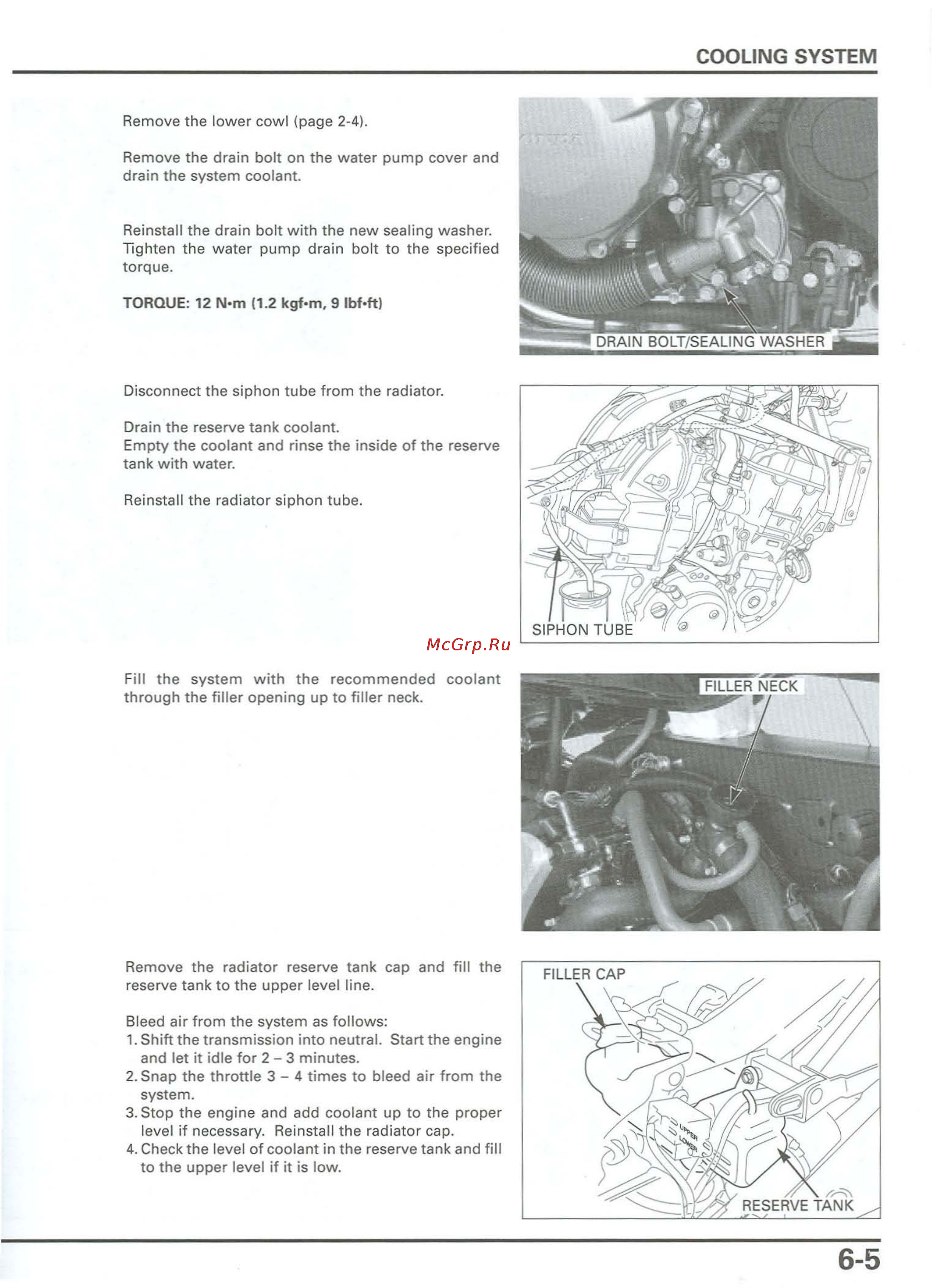

Honda CB900F 919 (2001) [172/432] Coolant
![Honda CB900F 919 (2001) [172/432] Coolant](/views2/1121111/page172/bgac.png)
Remove th e lower co
wl
(page 2-4).
Remove the drain
bolt
on the
water
pump
cover
and
drain
the
system
coolant
.
Reinstall the drain bolt with the new sealing
was
her
.
Tight
en the water
pum
p drain bolt to the specified
torque.
TORQUE: 12 N
'm
11.2
kgf·m,
9 Ibfoft)
Disconnect the
siphon
tub
e
from
the radiato r.
Drain
the
reserve
tank
coolant.
Empty the
coolant
and rinse the
inside
of
the reserve
tank with water.
Reinstall the radiator siphon tu be.
Fill the
syste
m w
ith
the
recomme
nded
coolant
through
the
f
iller
open
ing
up to
filler
neck.
Remove
the
rad
iator
reserve tank cap and
fill
the
reserve
tank
to
the upper level line.
Bleed air
from
the system as fo
llow
s:
1. Shift the
transm
ission
into
neutral. Start the
engine
and let it
idle
for 2 - 3
minutes
.
2. Snap the
throttle
3 - 4 t
imes
to bleed air
from
the
system.
3.Stop th e eng ine and add coo lant up to the
proper
level if necessary. Reinstall the radiato r cap.
4.Check the level of coolant in the reserve tan k and
fill
to the upper level if it is low.
COOLING SYSTEM
6-5
