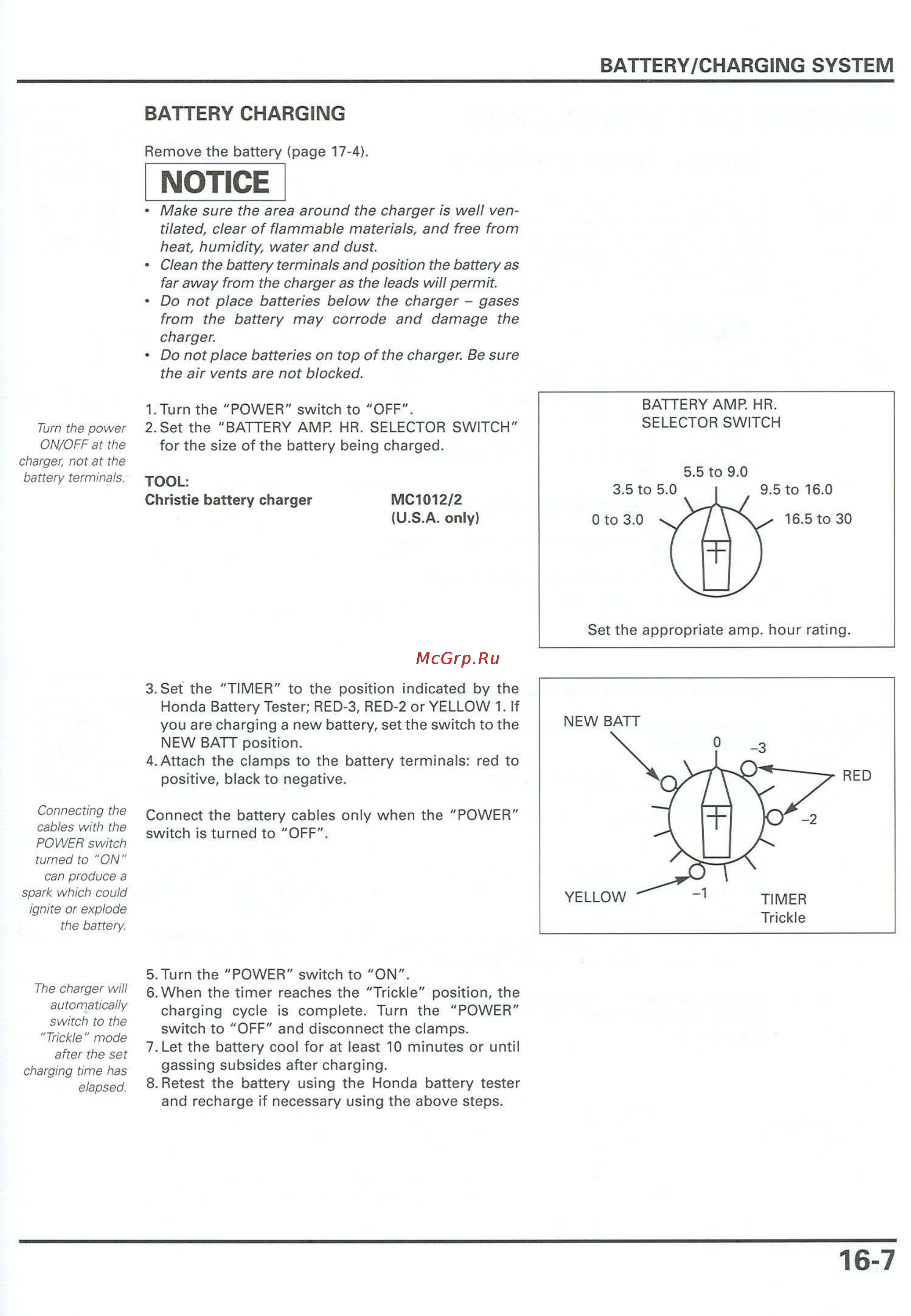

BATTERY CHARGING
Remove
the
battery
(page 17-41.
I NOTICE I
Make
sure the
area
around
the
charger
is
well
ven-
ti/ated, clear
of
flammable
materials,
and
free from
heat,
humidity
,
water
and
dust.
Clean the battery terminals
and
position the batteryas
far
away
from the charger as the leads will permit.
Do
not
place batteries belo w the
charger
- gases
from the battery
may
corrode and damage the
charger.
Do
not
place batteries on top
of
the charger. Be sure
the
air
vents are
not
blocked.
BATTERY/CHARGING SYSTEM
1.Turn
the
" POWER"
switch
to
"OFF".
2. Set
the
" BATTERY AMP. HR. SELECTOR SWI
TCH"
for the size of the battery being charged.
Turn the po
wer
O
N/OFF
at the
charger,
not
at the
battery terminals.
TOOL:
Christie
batt
ery charger MC101
2/2
(U.S.A.
only)
BATTERY AMP. HR.
SELECTOR S
WIT
CH
5.5
to
9.0
3.5 to 5.0
o to 3.0 16.5
to
30
Set the appropriate amp. hour rating.
Connecting the
cables
with
the
POWER
switch
turned to "ON "
can
produce
a
spark which could
ignite or explode
the
batter
y.
The charger will
automatically
switch to the
"Trickle"
mode
after the set
charging time has
elapsed.
3.
Set
the
"T
IMER" to
the
posit
ion indi cated by
the
Honda Battery Tester; RED-3, RED-2 or YELLOW 1. If
you are charging a new battery, set the switch to the
NEW BATT
posit
ion.
4.Attach the clamps to the battery terminals: red to
positive, black to negative.
Connect the battery cables only when the "POWER"
switch is turned to
"OFF".
5.Turn
the
" POWER"
sw
itch
to
"ON"
.
6.When the timer reaches the "Trickle" position, the
charging cycle is complete. Turn the "POWER"
switch to "OFF" and disconnect the clamps.
7.Let the battery cool for at least 10 minutes or until
gassing subsides after charging.
8. Retest the battery using the Honda battery tester
and recharge if necessary using the above steps.
NEW BATT
-,
YELLOW
o
TIMER
Trickle
RED
16-7
