Chapter 20 Configuration: VLAN
GS1900 Series User’s Guide
122

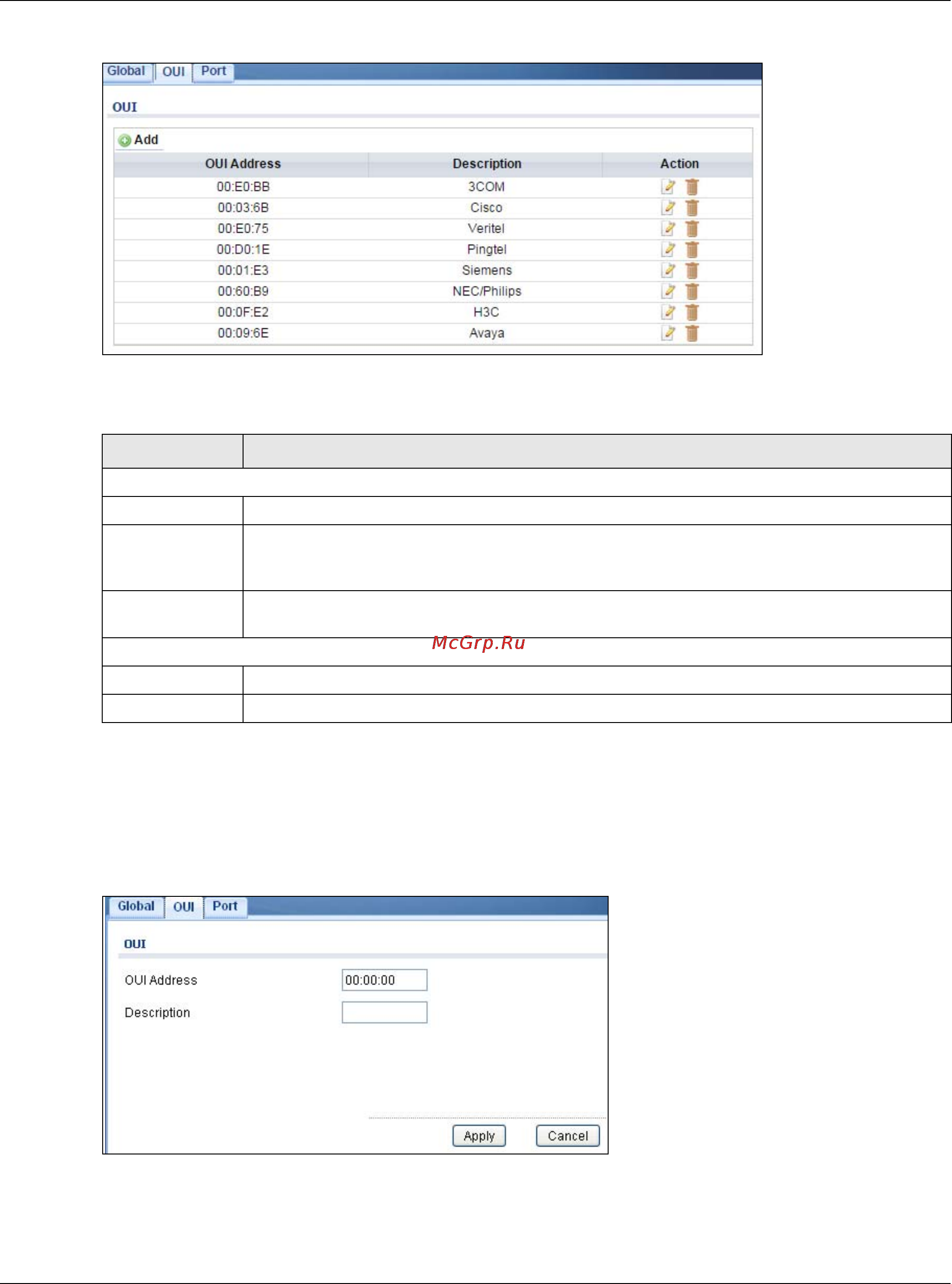

Figure 114 Configuration > VLAN > Voice VLAN > OUI
The following table describes the labels in this screen.
20.4.3 The OUI Add/Edit Screen
Use this screen to add/edit an OUI address. Click Configuration > VLAN > Voice VLAN > OUI >
Add/Edit to open this screen.
Figure 115 Configuration > VLAN > Voice VLAN > OUI > Add/Edit
Table 80 Configuration > VLAN > Voice VLAN > OUI
LABEL DESCRIPTION
OUI
Add Click Add to create a new OUI entry.
OUI Address Displays an OUI address. A telephony OUI address is a globally unique identifier assigned to
a vendor by IEEE. It must be 6 characters long and the input format is "xx-xx-xx" (x is a
hexadecimal digit).
Description Displays a description of the OUI address. Normally, it describes which vendor telephony
device it belongs to. The allowed string length is 0 to 32.
Action
Edit Click Edit to make changes to the entry.
Delete Click Delete to remove the entry.
