Chapter 31 Configuration: Management
GS1900 Series User’s Guide
210
The following table describes the labels in this screen.
31.6.2 The Users Add/Modify Screen
Use this screen to configure the Users settings. Click Configuration > Management > Users >
Add/Modify to open this screen.

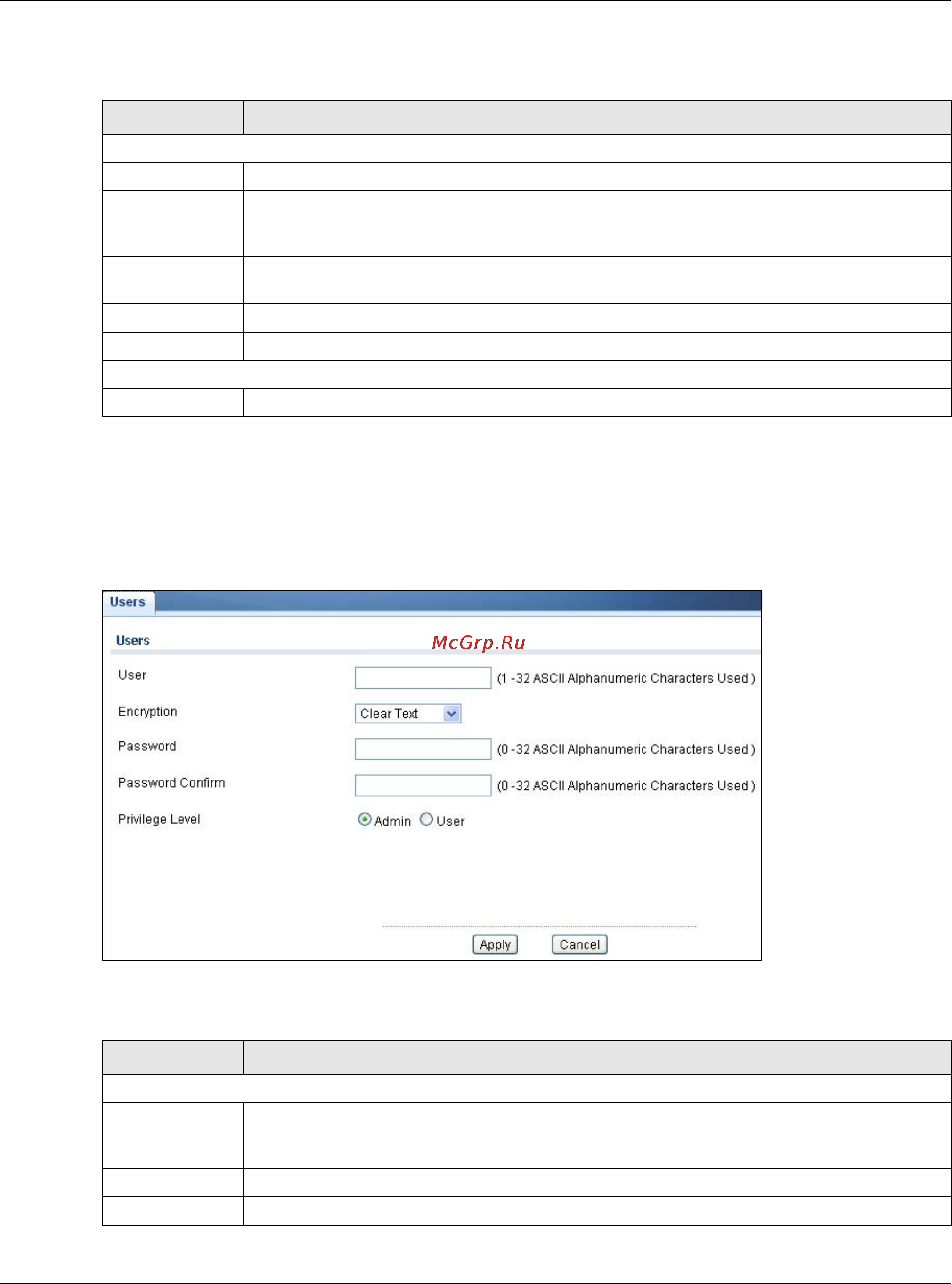

Figure 207 Configuration > Management > Users > Add/Modify
The following table describes the labels in this screen.
Table 173 Configuration > Management > Users
LABEL DESCRIPTION
Users
Add Click Add to create a new User entry.
User A string identifying the user name that this entry should belong to. The allowed string
length is 1 to 32. The valid user name is a combination of letters, numbers and
underscores.
Encryption Displays the encryption status. The values can be Clear Text, Encrypted, and No
Password.
Password Displays the password of the user. The allowed string length is 0 to 32.
Privilege Level Displays the privilege level of the user, range: admin and user.
Action
Edit Click Edit to make changes to the entry.
Table 174 Configuration > Management > Users > Add/Modify
LABEL DESCRIPTION
Add New Local User
User Enter a string identifying the user name that this entry should belong to. The allowed string
length is 1 to 32. The valid user name is a combination of letters, numbers and
underscores.
Encryption Select the encryption type. The values can be Clear Text, Encrypted, and No Password.
Password Enter a password for the user. The allowed string length is 0 to 32.
