Chapter 31 Configuration: Management
GS1900 Series User’s Guide
202
31.3.5 The Group Add/Modify Screen
Use this screen to configure the Group settings. Click Configuration > Management > SNMP >
Group > Add/Modify to open this screen.

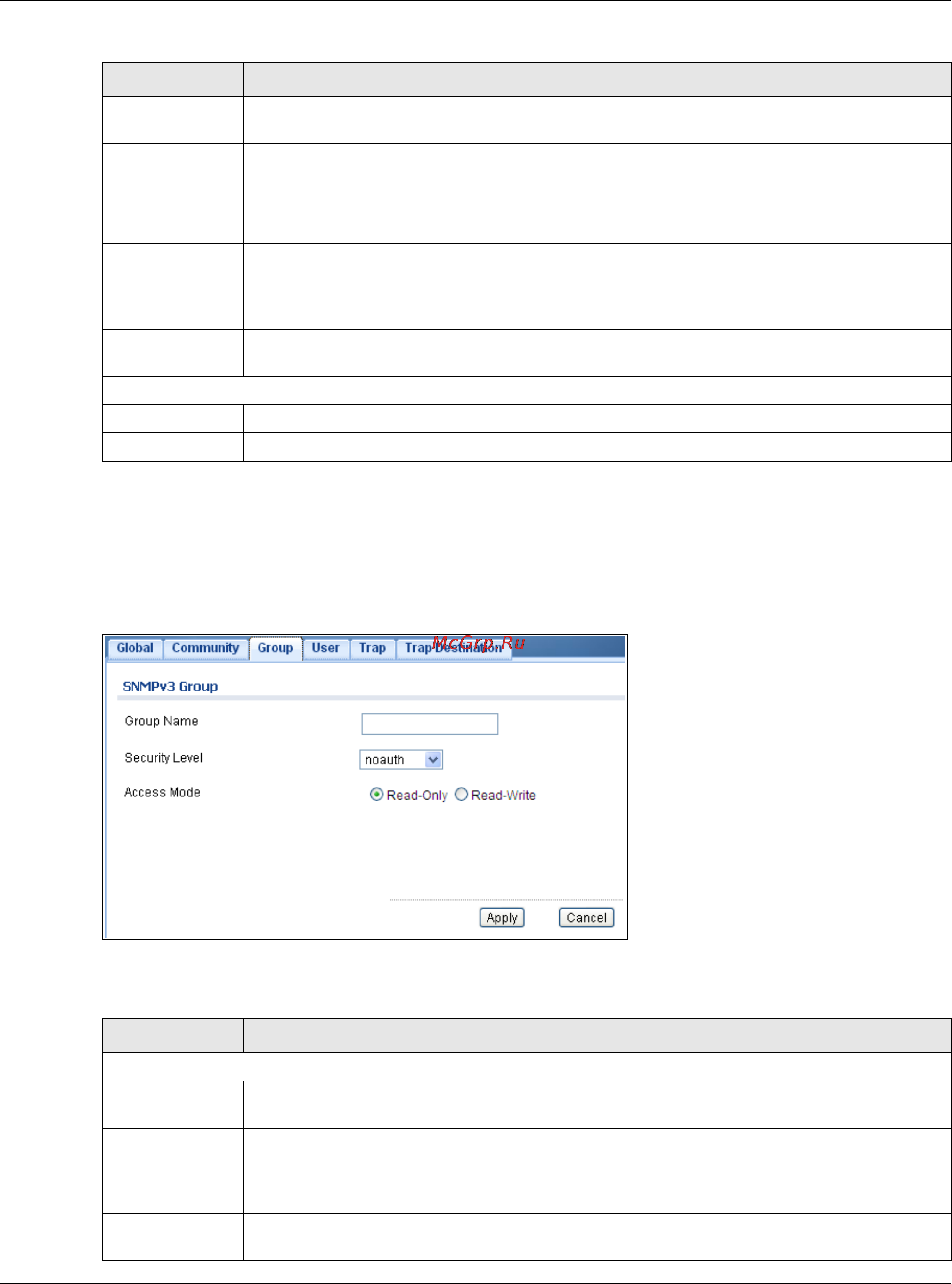

Figure 197 Configuration > Management > SNMP > Group > Add/Modify
The following table describes the labels in this screen.
Group Name Displays a string identifying the group name that this entry should belong to. The allowed
string length is 1 to 30, and the allowed content is ASCII characters from 33 to 126.
Security Model Displays the security model that this entry belongs to. Possible security models are:
• any: Any security model accepted(v1|v2c|usm).
• v1: Reserved for SNMPv1.
• v2c: Reserved for SNMPv2c.
• usm: User-based Security Model (USM).
Security Level Displays the security model that this entry belongs to. Possible security models are:
• NoAuth, NoPriv: No authentication and no privacy.
• Auth, NoPriv: Authentication and no privacy.
• Auth, Priv: Authentication and privacy.
Access Right Displays the access mode for this entry. The possible values are Read Only and Read-
Write.
Action
Edit Click Edit to make changes to the entry.
Delete Click Delete to remove the entry.
Table 163 Configuration > Management > SNMP > Group (continued)
LABEL DESCRIPTION
Table 164 Configuration > Management > SNMP > Group > Add/Modify
LABEL DESCRIPTION
SNMPv3 Group Edit
Group Name Enter a string identifying the group name that this entry should belong to. The allowed
string length is 1 to 30, and the allowed content is ASCII characters from 33 to 126.
Security Level Select the security model that this entry belongs to. Possible security models are:
• NoAuth, NoPriv: No authentication and no privacy.
• Auth, NoPriv: Authentication and no privacy.
• Auth, Priv: Authentication and privacy.
Access Right Select the access mode for this entry. The possible values are Read-Only and Read-
Write.
