Chapter 22 Configuration: Link Aggregation
GS1900 Series User’s Guide
134

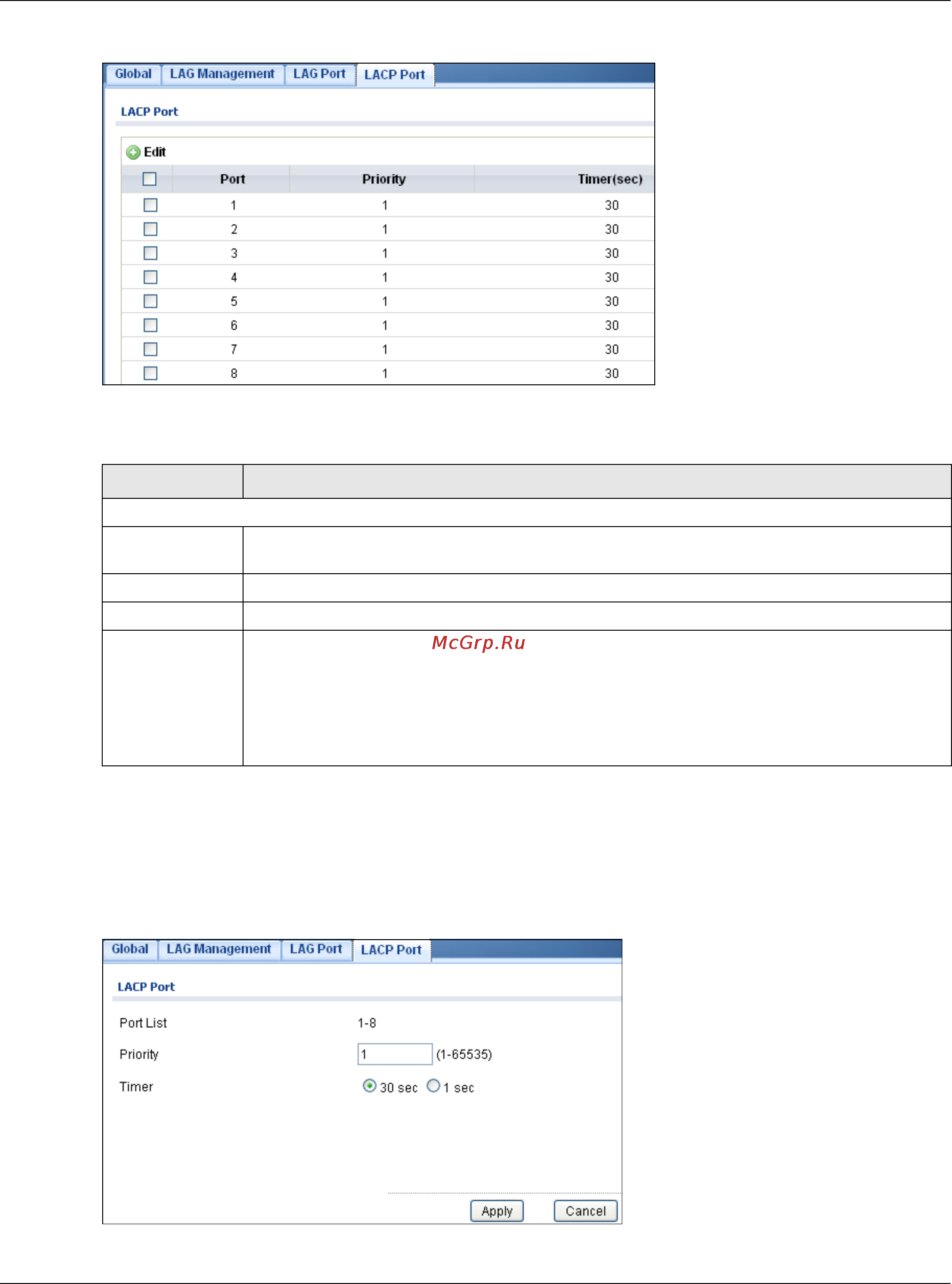

Figure 128 Configuration > Link Aggregation > LACP Port
The following table describes the labels in this screen.
22.2.7 The LACP Port Edit Screen
Use this screen to edit a LACP Port. Click Configuration > Link Aggregation > LACP Port > Edit
to open this screen.
Figure 129 Configuration > Link Aggregation > LACP Port > Edit
Table 94 Configuration > Link Aggregation > LACP Port
LABEL DESCRIPTION
LACP Port
Edit Select this check box to configure the properties of a port. Click the Edit button change the
properties of the port.
Port Displays the port index number.
Priority Displays the priority value.
Timer (sec) Displays the Timer value in seconds.
Timeout is the time interval between the individual port exchanges of LACP packets in order
to check that the peer port in the trunk group is still up. If a port does not respond after
three tries, then it is deemed to be “down” and is removed from the trunk. Set a short
timeout (one second) for busy trunked links to ensure that disabled ports are removed from
the trunk group as soon as possible.
