Zyxel GS1900-8HP [175/246] Chapter 28 configuration qos

Chapter 28 Configuration: QoS

GS1900 Series User’s Guide

175

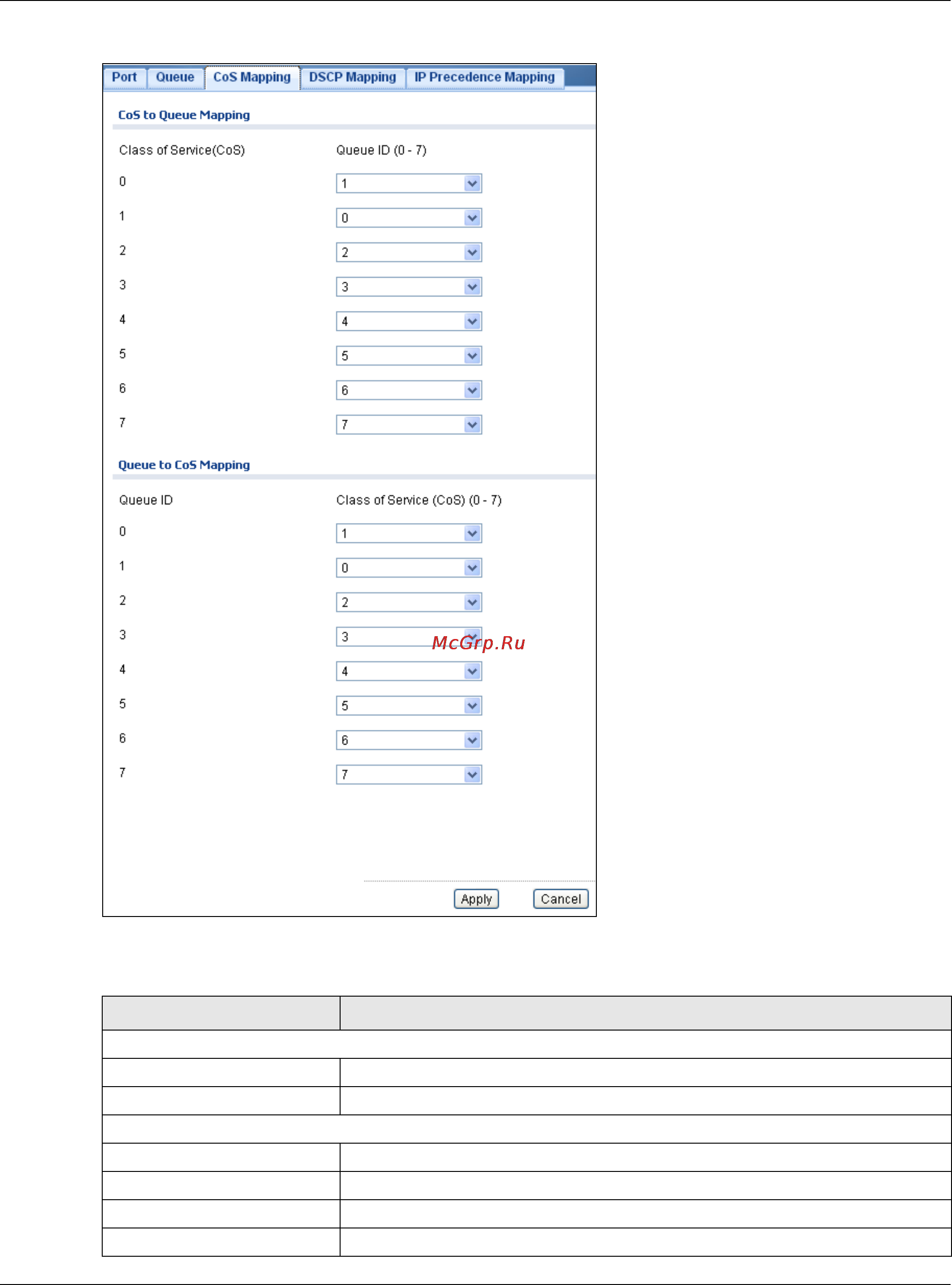

Figure 165 Configuration > QoS > General > CoS Mapping

The following table describes the labels in this screen.

Table 131 Configuration > QoS > General > CoS Mapping

LABEL DESCRIPTION

CoS to Queue Mapping

Class of Service (CoS) Displays a listing of the CoS, range: 0 - 7.

Queue ID (0-7) Click the drop-down menu to map the CoS to a specific Queue ID.

Queue to CoS Mapping

Queue ID Displays a listing of the Queue ID, range: 0 - 7.

Class of Service (CoS) (0-7) Click the drop-down menu to map the Queue ID to a specific CoS.

Apply Click Apply to save the changes.

Cancel Click Cancel to discard the changes.
