Chapter 32 Maintenance
GS1900 Series User’s Guide
221

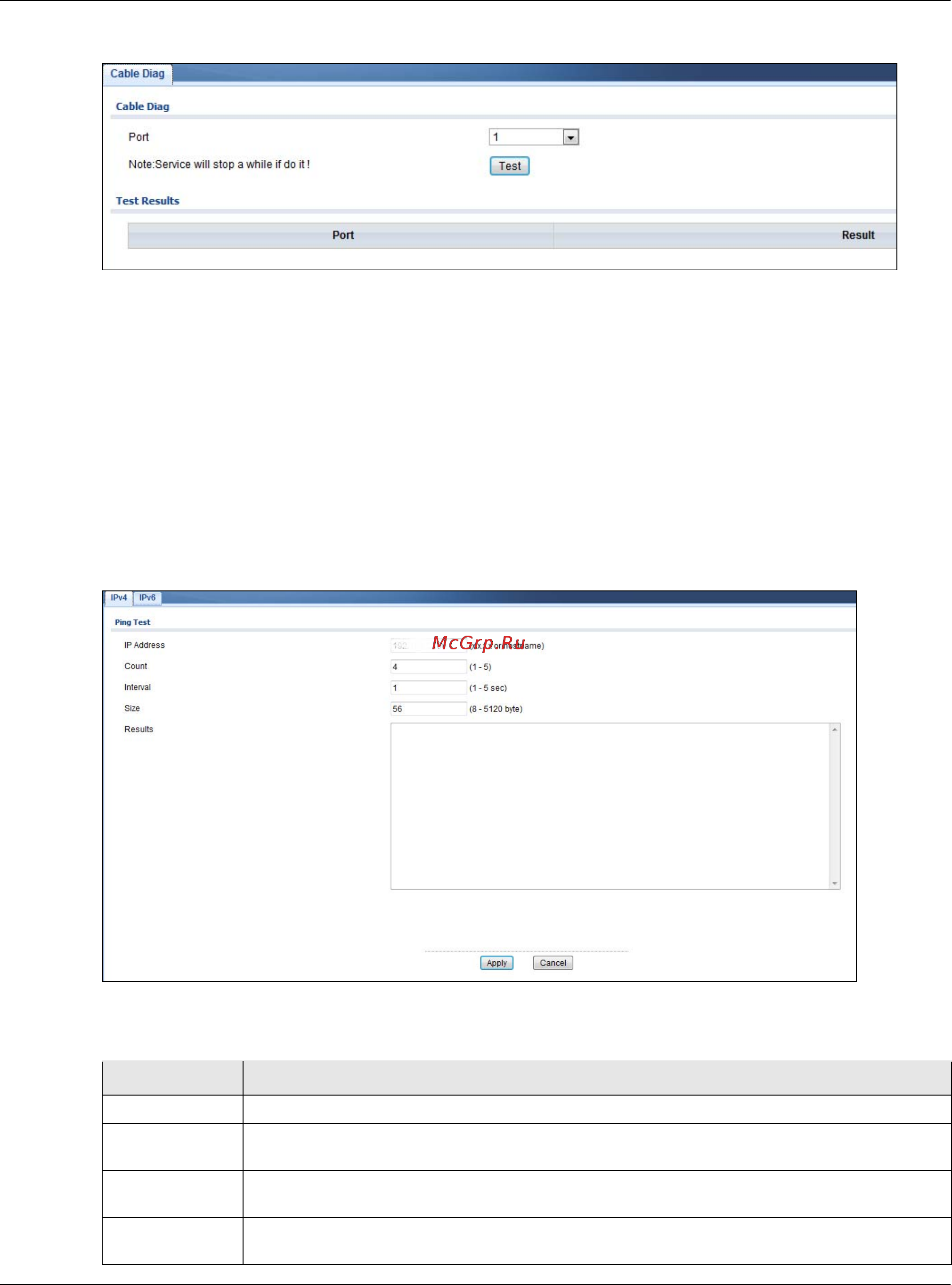

Figure 215 Maintenance > Diagnostics > Port Test
Follow the steps to perform the port test.
1. In Port Test, select the port number from the Port drop-down list.
2. Click Test to start the port test.
The test results are displayed in Test Results.
32.7.2 IPv4 Ping Test
Click Maintenance > Diagnostics > PING > IPv4 in the navigation panel to open this screen.
Use this screen to ping an IPv4 server.
Figure 216 Maintenance > Diagnostics > PING > IPv4
The following table describes the labels under Ping Test.
Table 182 Maintenance > Diagnostics > PING > IPv4
LABEL DESCRIPTION
IP Address Enter the address of the target host server.
Count Enter the number of ping packets to send. The range is 1 to 5 packets; the default count is
4.
Interval Enter the time in seconds between sending ping packets. The range is 1 to 5 seconds; the
default is 1 second.
Size Enter the individual packet size in bytes. The range is 8 to 5120 bytes; the default is 56
bytes.
