Zyxel GS1900-8HP [172/246] The port screen

GS1900 Series User’s Guide

172

CHAPTER 28

Configuration: QoS

28.1 Overview

This section provides information for QoS (Quality of Service) in Configuration.

28.2 General

Quality of Service (QoS) refers to both a network's ability to deliver data with minimum delay, and

the networking methods used to control the use of bandwidth. Without QoS, all traffic data is

equally likely to be dropped when the network is congested. This can cause a reduction in network

performance and make the network inadequate for time-critical application such as video-on-

demand.

28.2.1 The Port Screen

Use this screen to view the Port settings. Click Configuration > QoS > General to open this

screen.

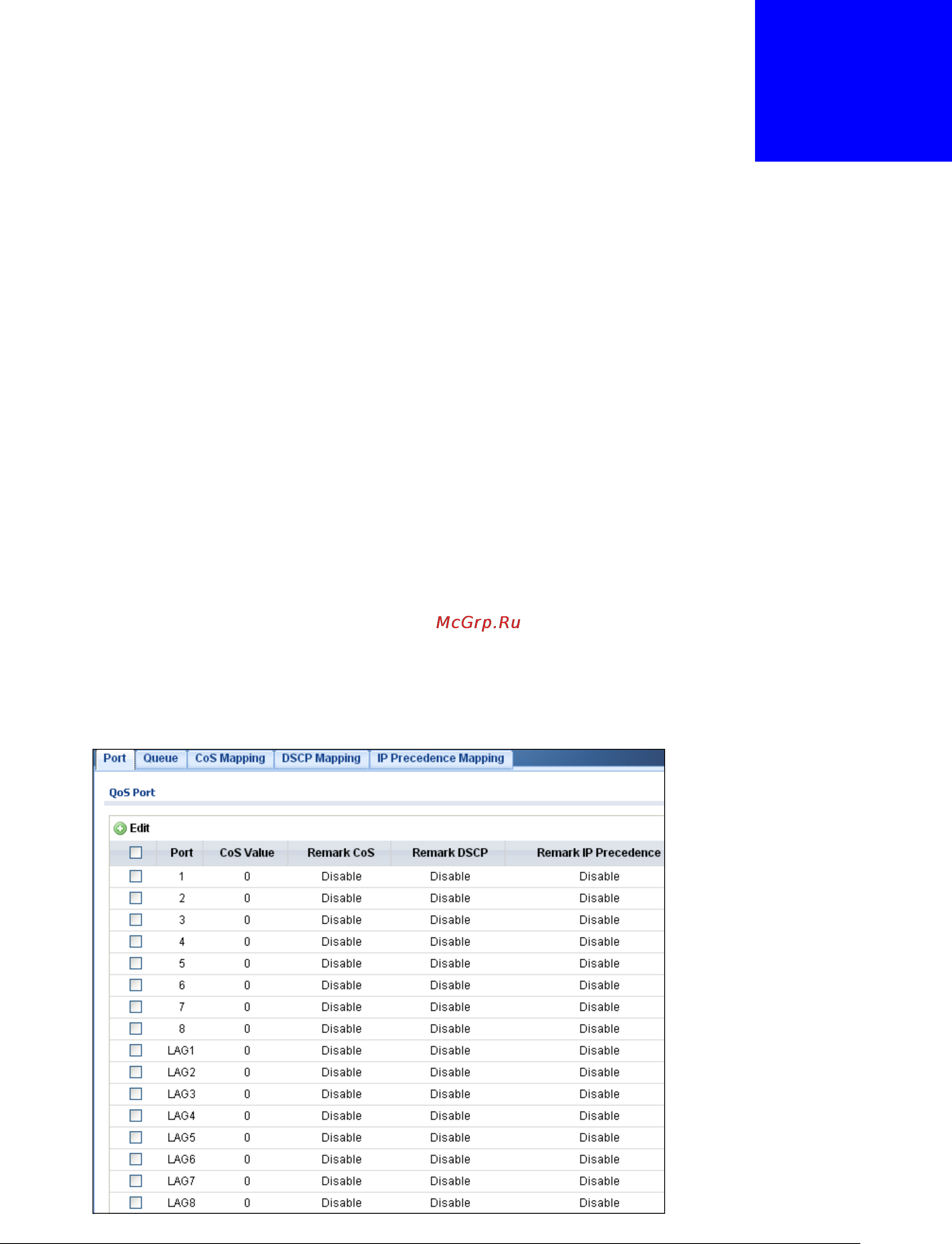

Figure 162 Configuration > QoS > General
