Chapter 31 Configuration: Management
GS1900 Series User’s Guide
201

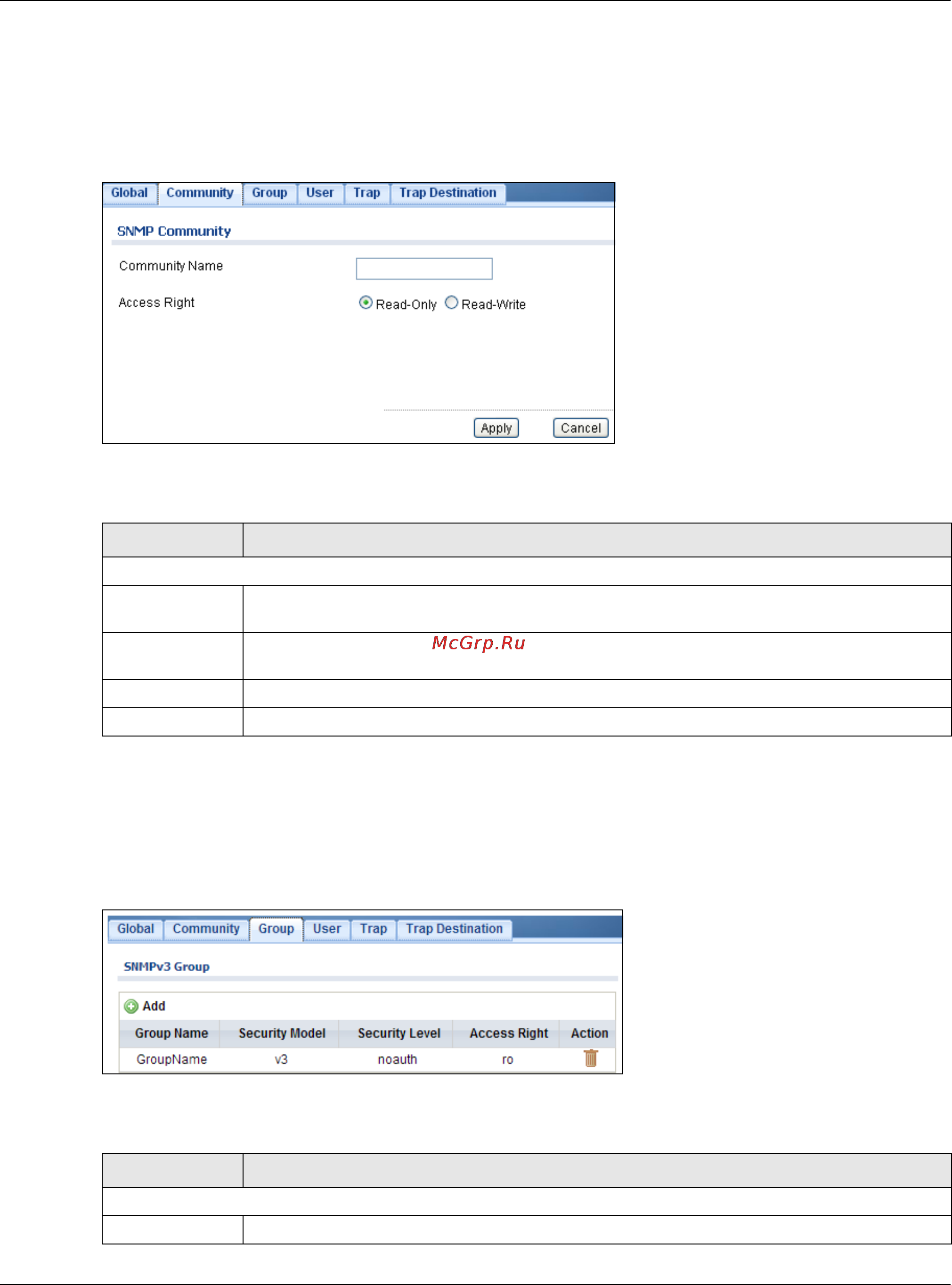

31.3.3 The Community Add/Modify Screen
Use this screen to configure the Community settings. Click Configuration > Management >
SNMP > Community > Add/Modify to open this screen.
Figure 195 Configuration > Management > SNMP > Community > Add/Modify
The following table describes the labels in this screen.
31.3.4 The Group Screen
Use this screen to view the Group settings. Click Configuration > Management > SNMP >
Group to open this screen.
Figure 196 Configuration > Management > SNMP > Group
The following table describes the labels in this screen.
Table 162 Configuration > Management > SNMP > Community > Add/Modify
LABEL DESCRIPTION
SNMP Community
Community
Name
Enter a string identifying the community name that this entry should belong to. The allowed
string length is 1 to 20, and the allowed content is ASCII characters from 33 to 126.
Access Right Select the access mode for this entry. The possible values are Read-Only and Read-
Write.
Apply Click Apply to save the changes.
Cancel Click Cancel to discard the changes.
Table 163 Configuration > Management > SNMP > Group
LABEL DESCRIPTION
SNMPv3 Group
Add Click Add to create a new SNMPv3 Group entry.
